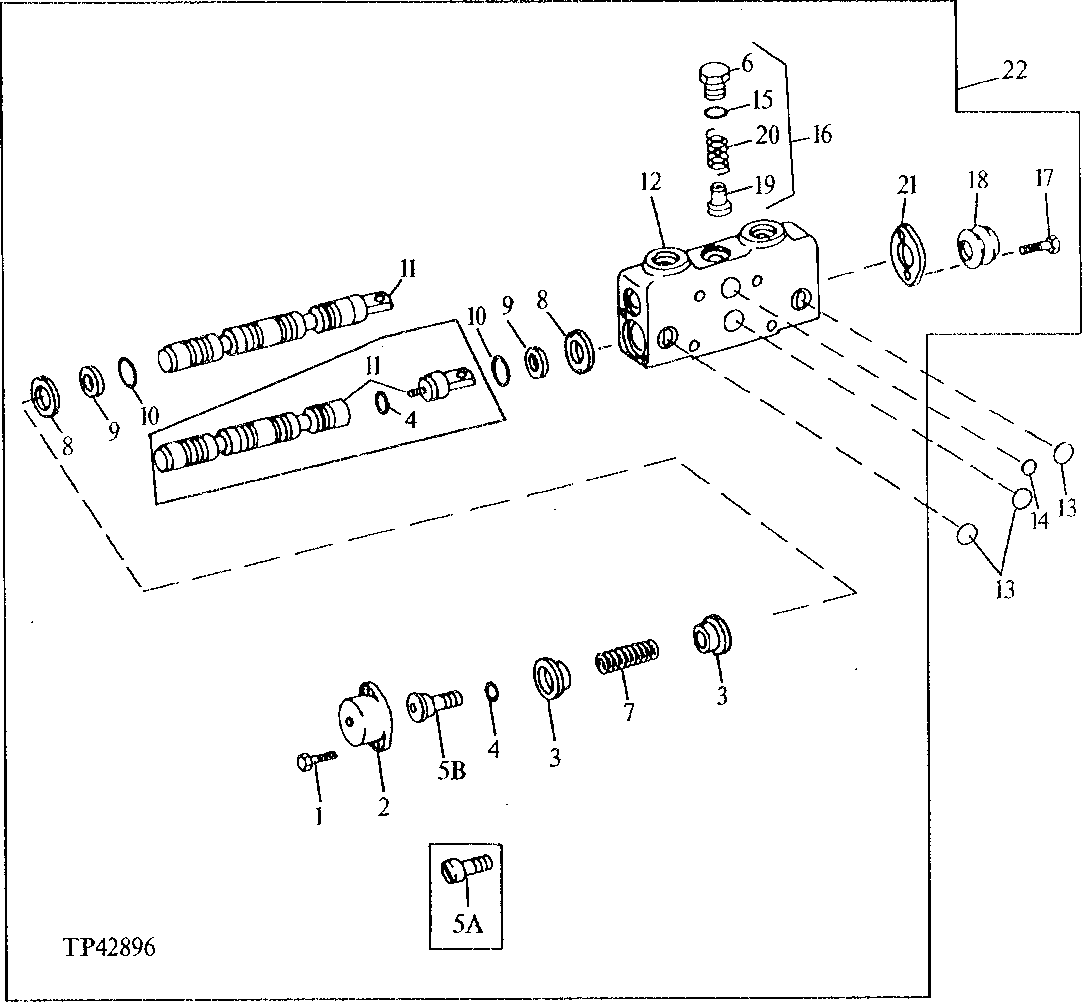

BACKHOE CONTROL VALVE BOOM SECTION (GRESEN) [03D24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T106306	2	Screw	(SUB FOR T35975)
2	AT117656	1	CAP	(SUB FOR T75995 AND T106286)
3	T75991	2	ROUND RETAINER	-
4	R26287	2	O-Ring	-
6	-	1	Part 7	(SUB FOR T75989 AND AT107496) (SUB FOR T54922, THIS APPLICATION)
7	T75992	1	SPRING	-
8	T75997	2	RING	-
9	T76002	2	BACK-UP RING	-
10	T122034	2	O-Ring	(SUB FOR A4730R, THIS APPLICATION) (SUB FOR T106295)
11	-	1	Part 12	(SUB AT163866) (ALSO ORDER AT159816)
12	-	1	Part 13	(SUB AT163866) (ALSO ORDER AT159816)
13	-	3	Part 14	(SUB AT159816) (SUB FOR T76003)
14	-	1	Part 15	(SUB AT159816) (SUB FOR U11326, THIS APPLICATION)
15	U17409	1	O-Ring	-
16	AT74127	1	FITTING PLUG	-
17	T104773	2	Cap Screw	(SUB FOR T75973)
18	T149740	1	BOOT	(SUB FOR T75999, T106279 AND T113029)
19	-	1	Part 20	( T75990 - NO LONGER AVAILABLE)
20	-	1	Part 21	( U17406 - NO LONGER AVAILABLE)
21	T75998	1	FLANGE	-
22	AT163866	1	SPOOL VALVE	BOOM SECTION, (ALSO ORDER AT159816) (USE WITH AT141192 AND AT74133) (SUB FOR AT141189, AT107501, AT78506, AT75076, AT151900 AND AT163158)
5A	T78361	1	PLUG	(SUB T106305)
5B	T106305	1	BUSHING	-

BACKHOE CONTROL VALVE BOOM SECTION (GRESEN) [03D24]

Нет текстового описания
