Открытый узел

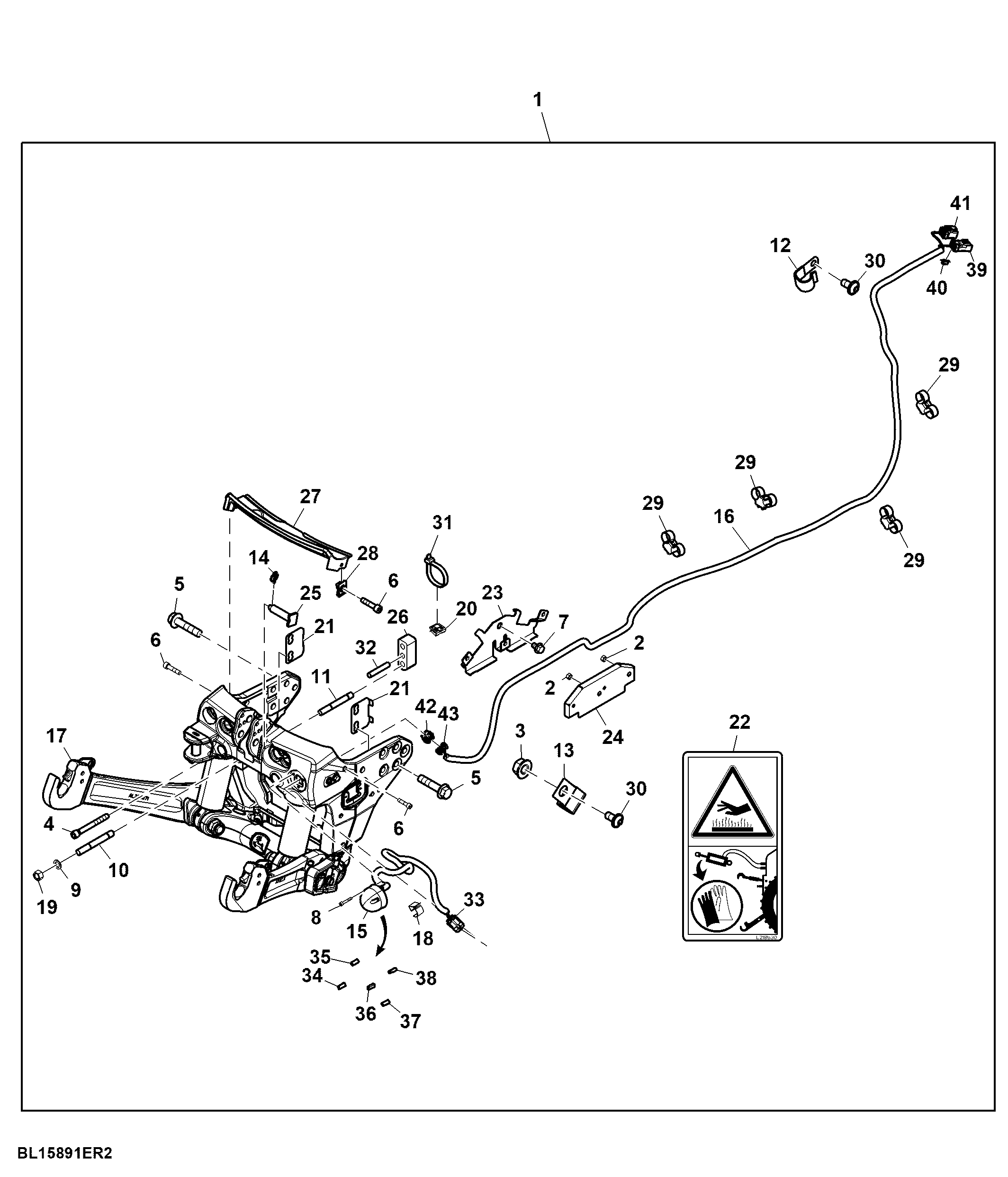

Attachment, Front 3 Point Hitch, Category 3

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15891	1	Front 3-Point Hitch	-
2	14M7295	2	Nut	M12
3	14M7298	1	Flange Nut	M8
4	L226910	2	Screw	M20 X 180, SUB FOR APPL 19M10782
5	19M11526	6	Screw	M20 X 90
6	19M8274	2	Screw	M8 X 35
7	19M8468	1	Screw	M16 X 25
8	19M8576	3	Screw	M5 X 30
9	24M7396	2	Washer	21 X 34 X 3 mm
10	42M7136	2	Stud	M20 X 150
11	42M7137	2	Stud	M20 X 140
12	AH89486	1	Clip	-
13	AH89557	1	Clip	-
14	AL14540	1	Quick Lock Pin	-
15	AL217571	1	Wiring Harness	-
16	AL224188	1	Wiring Harness	-
17	AL233370	1	Front 3-Point Hitch	SUB FOR AL231652
18	L115277	1	Clip	-
19	L204993	2	Lock Nut	-
20	L205558	2	Clip	-
21	L218262	2	Sheet	-
22	L218530	1	Label	-
23	L219638	1	Retainer	-
24	L219642	1	Retainer	-
25	L220347	1	Pin Fastener	-
26	L220805	2	Holder	-
27	L221510	1	Cover	-
28	L55969	2	Nut	-
29	R213663	4	Clamp	-
30	R264173	7	Bolt	-
31	R44302	3	Tie Band	-
32	R552287	2	Dowel Pin	-
33	57M7697	1	Electrical Connector Assy	Inline Adapter 7 Pin Socket, X234M
33	57M7574	1	Elec. Connector Terminal	Cavity E
33	57M7259	1	Elec. Connector Seal	Cavity B
33	57M7576	1	Elec. Connector Terminal	Cavity G
33	57M7583	1	Elec. Connector Terminal	Cavity G
33	57M7252	4	Elec. Connector Terminal	Cavity A, C, D, F
33	57M9215	1	Elec. Connector Seal	Cavity A, C, D, F
34	57M7170	1	Elec. Connector Housing	Trailer Socket 7 Pin Front, X883-3
34	57M7106	1	Elec. Connector Terminal	Cavity A
35	57M7170	1	Elec. Connector Housing	Trailer Socket 7 Pin Front, X883-4
35	57M7089	1	Elec. Connector Terminal	Cavity A
36	57M7170	1	Elec. Connector Housing	Trailer Socket 7 Pin Front, X883-7
36	57M7089	1	Elec. Connector Terminal	Cavity A
37	57M7170	1	Elec. Connector Housing	Trailer Socket 7 Pin Front, X883-1
37	57M7089	1	Elec. Connector Terminal	Cavity A
38	57M7170	1	Elec. Connector Housing	Trailer Socket 7 Pin Front, X883-5
38	57M7089	1	Elec. Connector Terminal	Cavity A
39	57M10524	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
39	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10
39	57M10525	2	Elec. Connector Terminal	Cavity 3, 7
39	57M10300	1	Elec. Connector Housing	Inline Transmission, X1235M
40	L210722	1	Clip	-
41	57M10299	1	Elec. Connector Housing	Inline 7 Pin Socket Rear, X1235F-1
41	57M8545	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
41	57M8565	2	Elec. Connector Terminal	Cavity 3, 7
41	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10
45	57M7696	1	Elec. Connector Housing	Inline 7 Pin Socket Front, X234F
45	57M10770	4	Elec. Connector Terminal	Cavity A, C, D, F
45	57M7576	1	Elec. Connector Terminal	Cavity G
45	57M7259	1	Elec. Connector Seal	Cavity B
45	57M7574	1	Elec. Connector Terminal	Cavity E
46	57M7698	1	Elec. Connector Terminal	-

Attachment, Front 3 Point Hitch, Category 3

Нет текстового описания
