Открытый узел

Wiring Harness, Power Outlet Socket, 60A, Rear, W/O Midstack SCV

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL224962	1	Wiring Harness	SUB FOR AL221346
2	14M7298	1	Flange Nut	M8
3	14M7397	4	Lock Nut	M6
4	19M9343	4	Screw	M6 X 55
5	AL222212	1	Bracket	-
6	L210203	1	Clip	-
7	L215125	1	Bracket	-
8	R207913	2	Retainer	-
9	R44302	1	Tie Band	-
10	57M13307	2	Clamp	SUB FOR T27523 APPL
11	L206645	1	Tie Band	SUB FOR L200543 APPL
12	L219754	1	Pad	SUB FOR R219535 APPL
13	L171232	1	Clip	-
14	R213663	1	Clamp	-
15	RE568839	1	Electrical Connector Assy	-
16	L207653	1	Cover	-
17	L207654	1	Cover	-
18	AL207376	1	Relay	70A
19	57M7623	2	Fuse	60 A
20	57M13652	1	Elec. Connector Housing	Connector for Implement Switch, X760F-1
20	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
20	57M13856	2	Elec. Connector Terminal	Cavity 2, 4
21	AL77324	1	Relay	40 A
22	L210947	1	Label	-
23	34H235	1	Spring Pin	3/32" X 1"
24	R201046	2	O-Ring	-
25	RE201032	1	Electrical Connector Cap	-
26	R205342	2	Push Nut	-
27	AL159725	1	Clamp	-
28	L214190	1	Adapter	-
29	57M9604	1	Elec. Connector Housing	Relay for Power Supply to Implements, K068
29	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
29	57M7071	2	Elec. Connector Terminal	Cavity 2, 8
29	AL207376	1	Relay	-
29	57M7724	1	Electrical Connector Assy	-
30	57M9607	1	Elec. Connector Accessory	Power Socket Box Fuse
30	57M7623	2	Fuse	-
30	57M8877	2	Elec. Connector Terminal	Cavity 1, 2
30	57M8966	2	Elec. Connector Terminal	Cavity 3, 4
31	57M9600	1	Elec. Connector Housing	Relay for Power Supply to Implements, K069
31	AL77324	1	Relay	-
31	57M9681	2	Elec. Connector Terminal	Cavity 2, 8
31	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
32	57M7175	1	Elec. Connector Terminal	Ground Point, XGND51
33	R78064	2	Elec. Connector Cavity Plug	-
33	57M9219	2	Elec. Connector Seal	Cavity A, B
33	R78060	2	Elec. Connector Terminal	Cavity A, B
33	R78053	1	Electrical Connector Assy	-
33	RE12363	1	Electrical Connector Assy	Connector for Implement Switch, X574F
34	57M7265	1	Elec. Connector Housing	Connection point on wiring harness W401, X543M
34	57M7281	1	Elec.Connect Locking Device	-
34	57M9215	4	Elec. Connector Seal	Cavity A, B, C, K
34	57M9214	4	Elec. Connector Seal	Cavity F, G, H, J
34	57M7259	2	Elec. Connector Seal	Cavity D, E
34	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, K
34	57M7495	4	Elec. Connector Terminal	Cavity F, G, H, J
35	57M9033	1	Elec. Connector Housing	Connector of the Rear Implement Socket, X760F-2
35	57M12049	1	Elec. Connector Accessory	-
35	57M7618	1	Electrical Connector Assy	-
35	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4

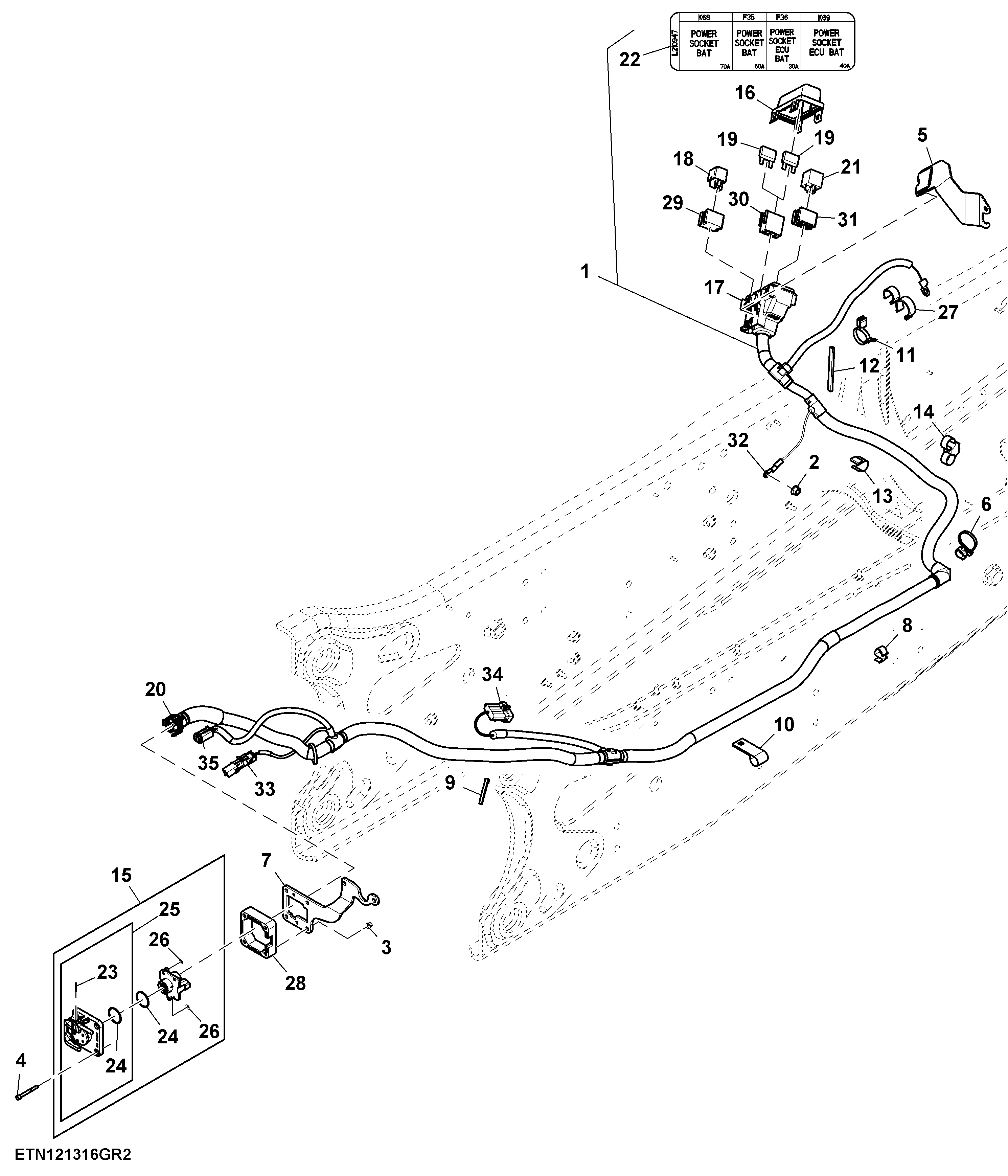

Wiring Harness, Power Outlet Socket, 60A, Rear, W/O Midstack SCV
