Открытый узел

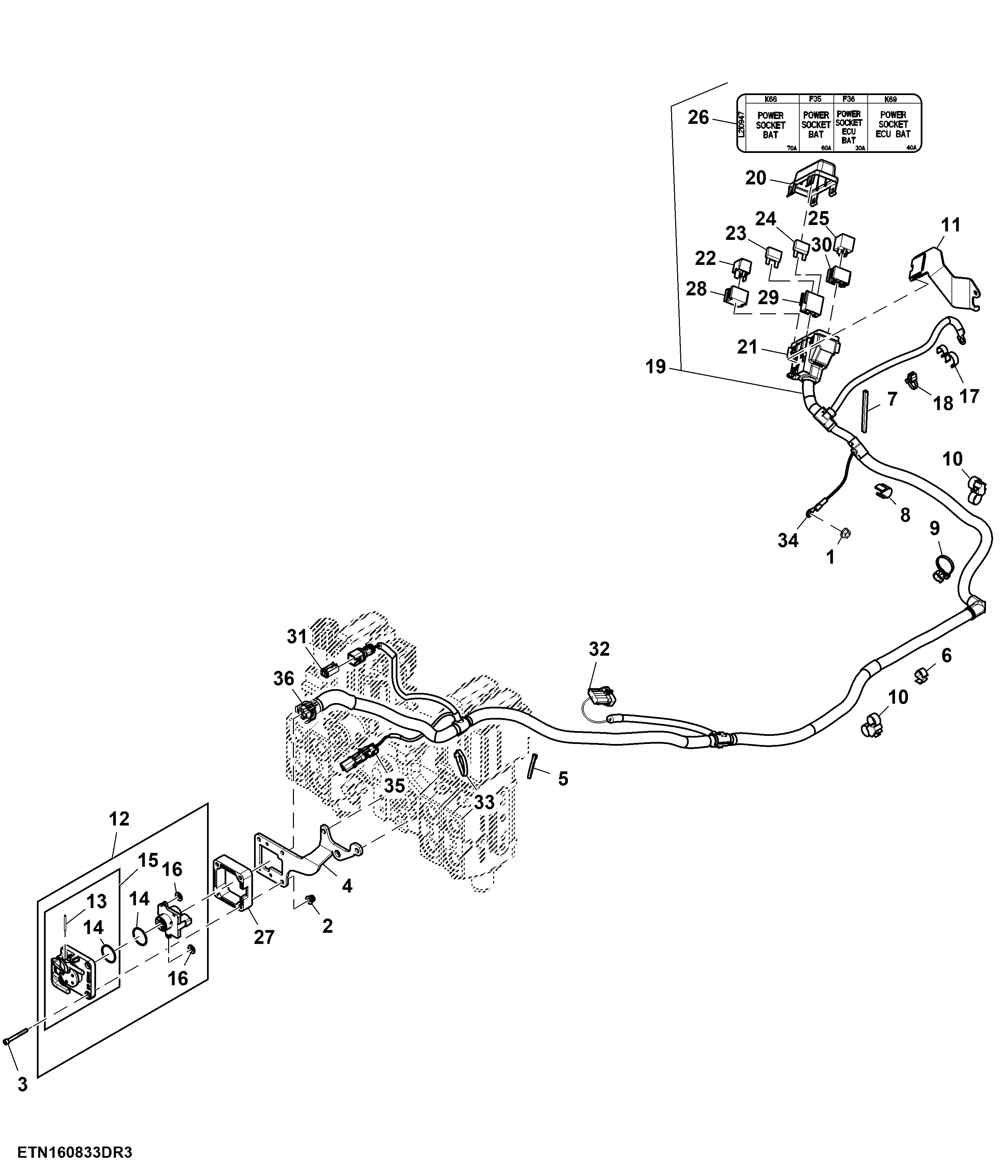

Wiring Harness, Power Outlet Socket, 60A, Rear, W/ Midstack SCV

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	1	Flange Nut	M8
2	14M7608	4	Flange Nut	M6
3	19M9343	4	Screw	M6 X 55
4	L215125	1	Bracket	-
5	R44302	1	Tie Band	-
6	R207913	2	Retainer	-
7	L219754	1	Pad	SUB FOR R219535 APPL
8	L171232	1	Clip	-
9	L210203	1	Clip	-
10	R213663	3	Clamp	-
11	AL222212	1	Bracket	-
12	RE568839	1	Electrical Connector Assy	-
13	34H235	1	Spring Pin	3/32" X 1"
14	R201046	2	O-Ring	-
15	RE201032	1	Electrical Connector Cap	-
16	R205342	2	Push Nut	-
17	AL159725	1	Clamp	-
18	L206645	1	Tie Band	-
19	AL224962	1	Wiring Harness	SUB FOR AL221346
20	L207653	1	Cover	-
21	L207654	1	Cover	-
22	AL207376	1	Relay	-
23	57M7623	1	Fuse	-
24	WZ2605354	1	Fuse	-
25	AL77324	1	Relay	-
26	L210947	1	Label	-
27	L214190	1	Adapter	-
28	57M7724	1	Electrical Connector Assy	-
28	57M7071	2	Elec. Connector Terminal	Cavity 2, 8
28	57M9604	1	Elec. Connector Housing	Relay for Power Supply to Implements, K068
29	57M9607	1	Elec. Connector Accessory	Power Socket Fuse Box
29	57M8877	2	Elec. Connector Terminal	Cavity 1, 2
29	57M8966	2	Elec. Connector Terminal	Cavity 3, 4
29	AZ53111	1	Fuse	-
30	57M9600	1	Elec. Connector Housing	Relay for Power Supply to Implements, K069
30	57M9681	2	Elec. Connector Terminal	Cavity 2, 8
31	57M9033	1	Elec. Connector Housing	Implement Socket (Rear), X760F-2
31	R78065	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
31	57M12049	1	Elec. Connector Accessory	-
31	57M7618	1	Electrical Connector Assy	-
32	57M9215	4	Elec. Connector Seal	Cavity A, B, C, K
32	57M7259	2	Elec. Connector Seal	Cavity D, E
32	57M7281	1	Elec.Connect Locking Device	-
32	57M9214	4	Elec. Connector Seal	Cavity F, G, H, J
32	57M7495	4	Elec. Connector Terminal	Cavity F, G, H, J
32	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, K
32	57M7265	1	Elec. Connector Housing	Inline Transmission, X543M
33	57M12233	1	Elec. Connector Accessory	-
34	57M7175	1	Elec. Connector Terminal	Ground Point, XGND51
35	RE12363	1	Electrical Connector Assy	Connector for Implement Switch, X574F
35	R78060	2	Elec. Connector Terminal	Cavity A, B
35	57M9219	2	Elec. Connector Seal	Cavity A, B
35	R78053	1	Electrical Connector Assy	-
35	R78064	2	Elec. Connector Cavity Plug	-
36	57M13652	1	Elec. Connector Housing	Implement Socket (Rear), X760F-1
36	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
36	57M13856	2	Elec. Connector Terminal	Cavity 2, 4

Wiring Harness, Power Outlet Socket, 60A, Rear, W/ Midstack SCV

Нет текстового описания
