Открытый узел

Wiring Harness, Vehicle, W/O Front Controller

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222907	1	Wiring Harness	SUB FOR AL220105 APPL
2	R50454	1	Clamp	-
3	AL214371	1	Bracket	-
4	R264173	3	Bolt	-
5	R44302	4	Tie Band	-
6	57M9856	3	Clamp	-
7	14M7298	5	Flange Nut	M8
8	AL156697	2	Relay	70A
9	37M7361	2	Screw	M6 X 16
10	AH90990	1	Clip	-
11	19M7784	1	Screw	M10 X 20
12	R207639	1	Clamp	SUB FOR R207913 APPL
13	AL200541	1	Wiring Harness	USE WITH AL222908
14	L114178	1	Clamp	-
15	L55969	1	Nut	-
16	57M7170	1	Elec. Connector Housing	Radiator Ground Connection, X305F-1
16	57M7106	1	Elec. Connector Terminal	Cavity A
17	57M8545	7	Elec. Connector Terminal	Cavity 2, 3, 4, 8, 9, 10, 11
17	57M8572	3	Elec. Connector Cavity Plug	Cavity 12, 13, 14
17	57M8565	4	Elec. Connector Terminal	Cavity 1, 5, 6, 7
17	57M10297	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X547F
18	57M9817	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W471, X637F-1
18	57M9840	1	Elec. Connector Accessory	-
18	57M11335	1	Elec. Connector Accessory	-
18	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
19	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
20	57M7348	1	Elec. Connector Terminal	Ground Point, XGND9F
21	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
21	57M11134	1	Elec. Connector Housing	-
21	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
22	RE538505	1	Elec. Connector Accessory	Engine Control Unit, X021F-3
22	R528122	1	Elec. Connector Accessory	-
22	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
22	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
22	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
23	57M8080	1	Elec. Connector Accessory	-
23	57M7401	5	Elec. Connector Cavity Plug	Cavity 4, 5, 7, 9, 10
23	57M7400	2	Elec. Connector Seal	Cavity 2, 3
23	57M7399	3	Elec. Connector Seal	Cavity 1, 6, 8
23	57M8074	1	Elec. Connector Terminal	-
23	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W511, X1080M
23	57M9042	2	Elec. Connector Terminal	Cavity 2, 3
24	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W102, X1233F
24	57M8081	1	Elec. Connector Accessory	-
24	57M9532	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10
24	57M8079	1	Elec. Connector Terminal	Cavity 8
24	57M7400	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10
24	57M7399	1	Elec. Connector Seal	Cavity 8
25	57M10212	2	Elec. Connector Cable Seal	Cavity 1, 2
25	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
25	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
25	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
26	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
26	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
26	57M10212	2	Elec. Connector Cable Seal	Cavity 1, 2
26	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
27	57M8738	1	Elec. Connector Accessory	-
27	57M7401	3	Elec. Connector Cavity Plug	Cavity 57, 61, 62
27	57M7403	31	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 12, 15, 17, 18,21, 22, 23, 24, 26, 28, 29, 33, 34, 35, 36, 37, 38, 39, 47, 48, 50, 51, 52, 53, 54, 55, 56
27	57M7399	1	Elec. Connector Seal	Cavity 59
27	57M7400	2	Elec. Connector Seal	Cavity 58, 60
27	57M7402	6	Elec. Connector Cable Seal	Cavity 11, 27, 40, 41, 45, 46
27	57M9157	19	Elec. Connector Seal	Cavity 4, 6, 7, 8, 9, 10, 13, 14, 16, 19, 20, 25, 30, 31, 32, 42, 43, 44, 49
27	57M8585	1	Elec. Connector Terminal	Cavity 59
27	57M8584	2	Elec. Connector Terminal	Cavity 58, 60
27	57M9161	25	Elec. Connector Terminal	Cavity 4, 6, 7, 8, 9, 10, 11, 13, 14, 16, 19, 20, 25, 27, 30, 31, 32, 40, 41, 42, 43, 44, 45, 46, 49
27	57M8730	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W201, X782F
28	57M7065	1	Elec. Connector Housing	Windshield Washer Pump, X285F
28	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
29	57M7065	1	Elec. Connector Housing	Rear Window Washer Pump, X044F
29	57M7431	1	Elec. Connector Terminal	Cavity 1
29	57M7430	1	Elec. Connector Terminal	Cavity 2
30	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
31	57M7068	1	Elec. Connector Housing	Radiator Ground Connection, X305M-1
31	57M7039	1	Elec. Connector Terminal	Cavity 1

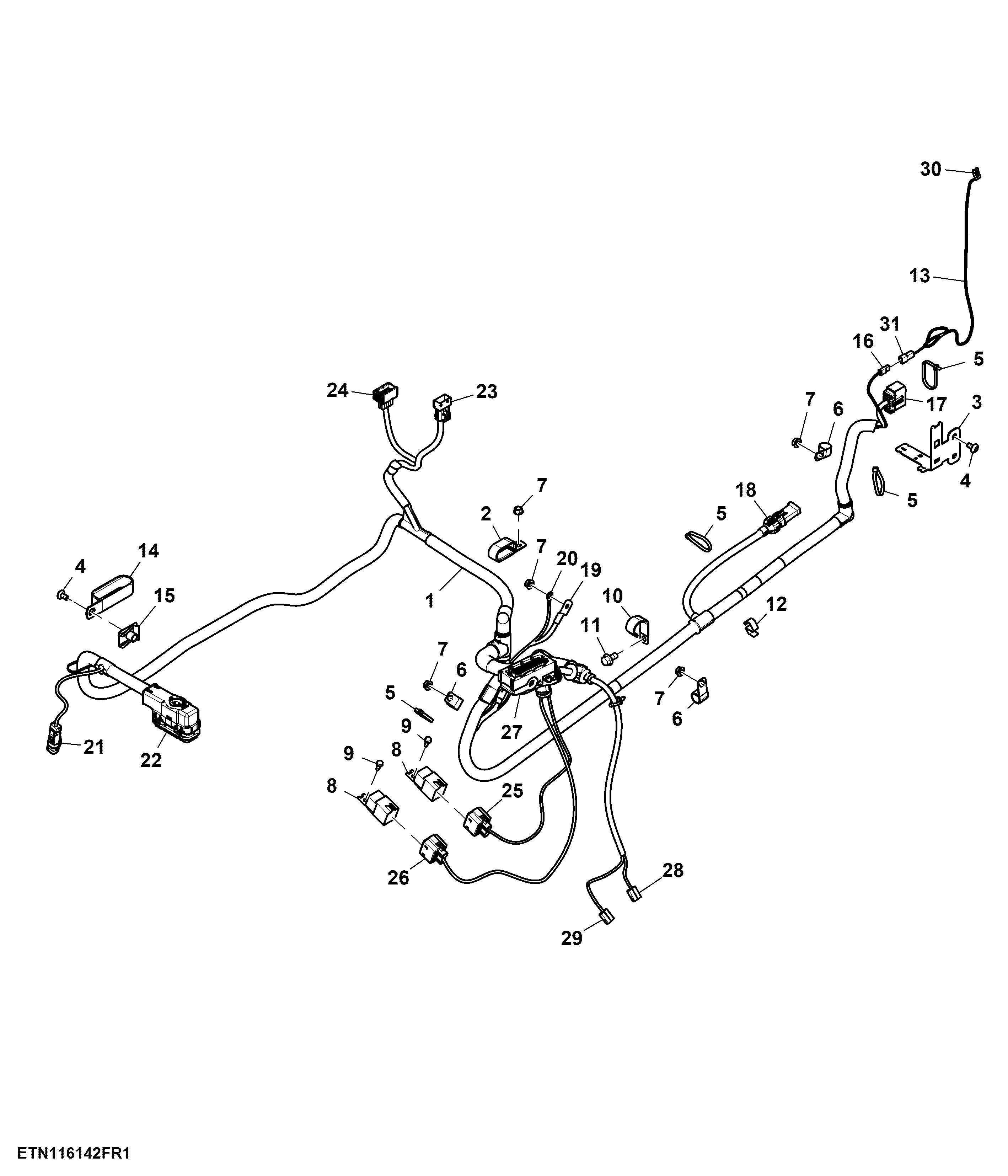

Wiring Harness, Vehicle, W/O Front Controller
