Открытый узел

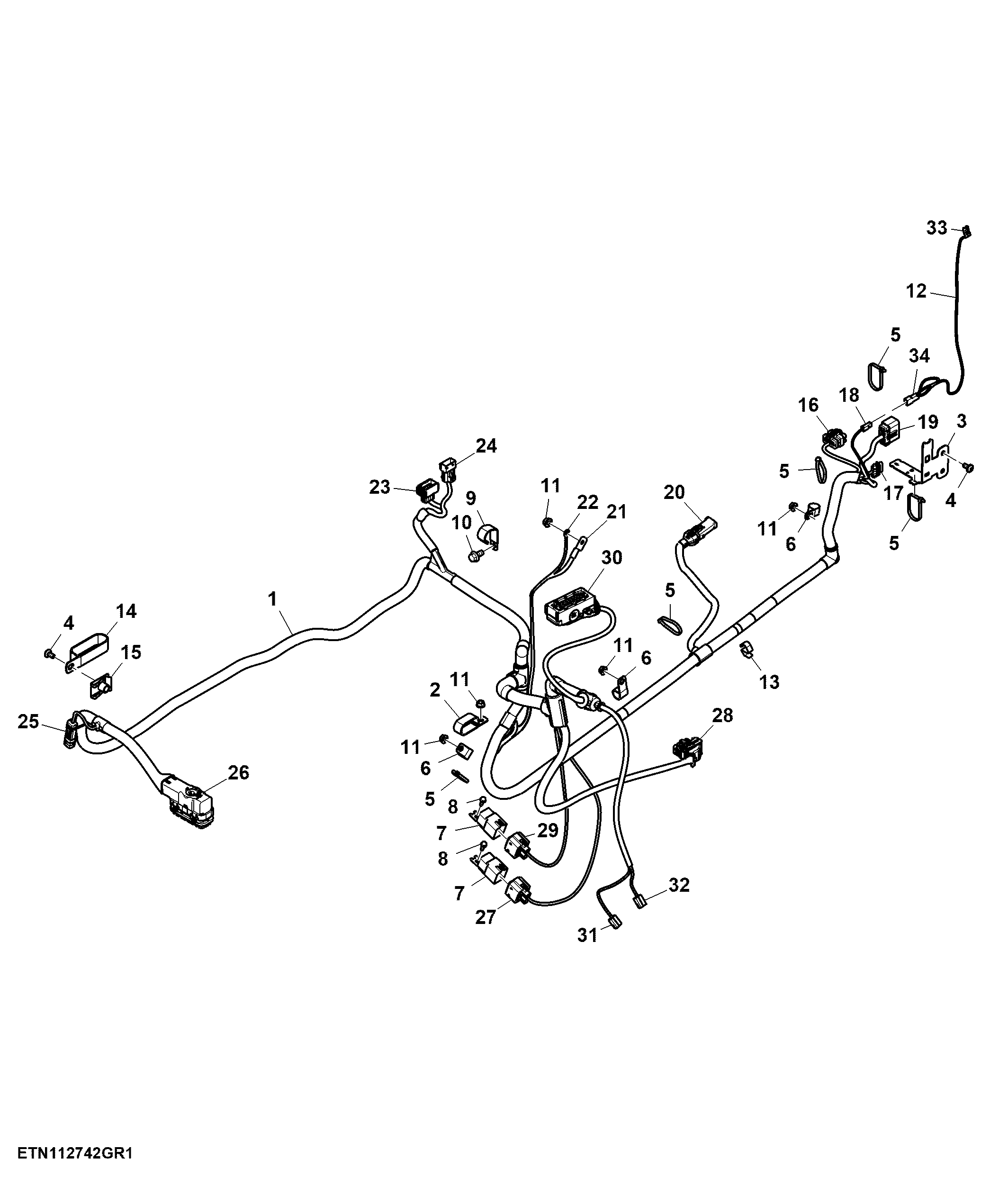

Wiring Harness, Vehicle, W/ Front Controller

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222908	1	Wiring Harness	SUB FOR AL220106 APPL
2	R50454	1	Clamp	-
3	AL214371	1	Bracket	-
4	R264173	3	Bolt	-
5	R44302	5	Tie Band	-
6	57M9856	3	Clamp	-
7	AL156697	2	Relay	70A
8	37M7361	2	Screw	M6 X 16
9	AH90990	1	Clip	-
10	19M7784	1	Screw	M10 X 20
11	14M7298	5	Flange Nut	M8
12	AL200541	1	Wiring Harness	USE WITH AL222908
13	R207639	1	Clamp	SUB FOR R207913 APPL
14	L114178	1	Clamp	-
15	L55969	1	Nut	-
16	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W701, X205F
16	57M11338	1	Elec. Connector Accessory	-
16	57M9940	1	Elec. Connector Accessory	-
16	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
16	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
17	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
17	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
17	L116272	1	Elec. Connector Accessory	-
17	57M8416	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W471, X002F
17	57M7318	1	Elec. Connector Accessory	-
18	57M7170	1	Elec. Connector Housing	Radiator Ground Connection, X305F-1
18	57M7106	1	Elec. Connector Terminal	Cavity A
19	57M10297	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W011, X547F
19	57M8565	4	Elec. Connector Terminal	Cavity 1, 5, 6, 7
19	57M8545	7	Elec. Connector Terminal	Cavity 2, 3, 4, 8, 9, 10, 11
19	57M8572	3	Elec. Connector Cavity Plug	Cavity 12, 13, 14
20	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
20	57M11335	1	Elec. Connector Accessory	-
20	57M9840	1	Elec. Connector Accessory	-
20	57M9817	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W471, X637F-1
21	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
22	57M7348	1	Elec. Connector Terminal	Ground Point, XGND9F
23	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W102, X1233F
23	57M8081	1	Elec. Connector Accessory	-
23	57M9532	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10
23	57M8079	1	Elec. Connector Terminal	Cavity 8
23	57M7400	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10
23	57M7399	1	Elec. Connector Seal	Cavity 8
24	57M7399	3	Elec. Connector Seal	Cavity 1, 6, 8
24	57M7400	2	Elec. Connector Seal	Cavity 2, 3
24	57M7401	5	Elec. Connector Cavity Plug	Cavity 4, 5, 7, 9, 10
24	57M8080	1	Elec. Connector Accessory	-
24	57M8074	1	Elec. Connector Terminal	-
24	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W511, X1080M
24	57M9042	2	Elec. Connector Terminal	Cavity 2, 3
25	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
25	57M11134	1	Elec. Connector Housing	-
25	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
26	RE538505	1	Elec. Connector Accessory	Engine Control Unit, X021F-3
26	R528122	1	Elec. Connector Accessory	-
26	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
26	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
26	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
27	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
27	57M8237	2	Elec. Connector Seal	Cavity 1, 2
27	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
28	57M10614	1	Elec. Connector Housing	Front Chassis Control Unit, X026F
28	57M10613	1	Elec. Connector Housing	-
28	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
28	57M10330	11	Elec. Connector Terminal	Cavity B2, C4, F2, H4, J2, J3, J4, K1, K2, K3, K4
28	57M10331	6	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M4
28	57M10333	27	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B3, B4, C1, C2, C3, D1, D2, D3, D4, E1, E2, E3, E4, F1, F3, F4, G1, G2, G3, G4, H1, H2, H3, J1
28	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, M3
29	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
29	57M8237	2	Elec. Connector Seal	Cavity 1, 2
29	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
30	57M8730	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W201, X782F
30	57M7401	2	Elec. Connector Cavity Plug	Cavity 57, 62
30	57M7403	29	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 12, 15, 17, 18, 22, 23, 26, 28, 29, 33, 34, 35, 36, 37, 38, 39, 47, 48, 50, 51, 52, 53, 54, 55, 56
30	57M7399	1	Elec. Connector Seal	Cavity 59
30	57M7400	3	Elec. Connector Seal	Cavity 58, 60, 61
30	57M7402	6	Elec. Connector Cable Seal	Cavity 11, 27, 40, 41, 45, 46
30	57M9157	21	Elec. Connector Seal	Cavity 4, 6, 7, 8, 9, 10, 13, 14, 16, 19, 20, 21, 24, 25, 30, 31, 32, 42, 43, 44, 49
30	57M8585	1	Elec. Connector Terminal	Cavity 59
30	57M8584	3	Elec. Connector Terminal	Cavity 58, 60, 61
30	57M9161	27	Elec. Connector Terminal	Cavity 4, 6, 7, 8, 9, 10, 11, 13, 14, 16, 19, 20, 21, 24, 25, 27, 30, 31, 32, 40, 41, 42, 43, 44, 45, 46, 49
30	57M8738	1	Elec. Connector Accessory	-
31	57M7065	1	Elec. Connector Housing	Rear Window Washer Pump, X044F
31	57M7431	1	Elec. Connector Terminal	Cavity 1
31	57M7430	1	Elec. Connector Terminal	Cavity 2
32	57M7065	1	Elec. Connector Housing	Windshield Washer Pump, X285F
32	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
33	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
34	57M7068	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X305M-1
34	57M7039	1	Elec. Connector Terminal	Cavity 1

Wiring Harness, Vehicle, W/ Front Controller

Нет текстового описания
