Открытый узел

Electronic Support, Front PTO, W/O Electronic Control Unit, W/ TLS™, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

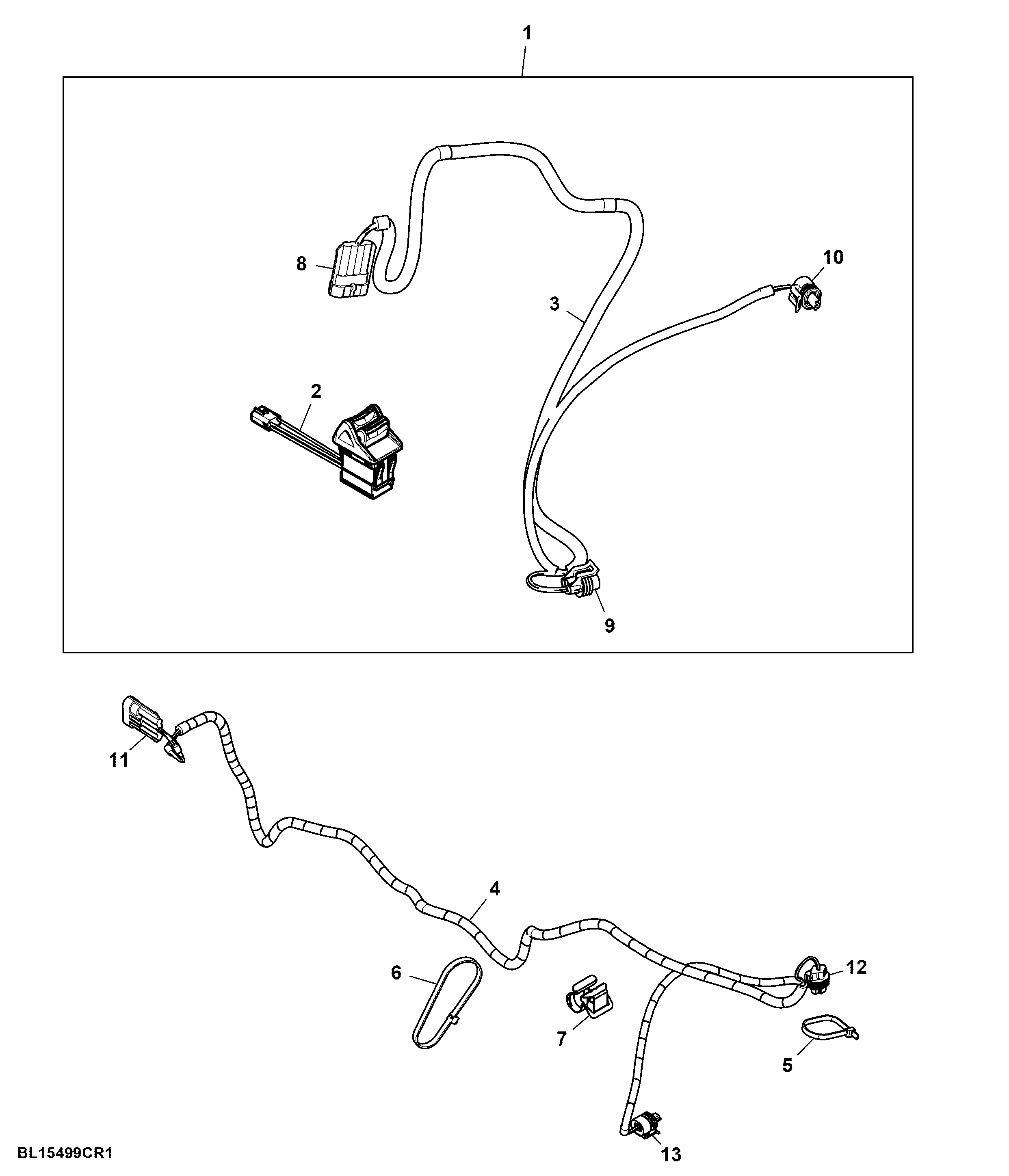

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15499	1	Wiring Harness	-
2	RE160961	1	Toggle/Rocker Switch	W/O CommandARM™
2	RE576339	1	Toggle/Rocker Switch	Not Included in Service Kit, Order Additionally if required, W/ CommandARM™
3	AL204930	1	Wiring Harness	-
4	AL210669	1	Wiring Harness	Order Additionally if required, For 6MC/RC Series Tractor
5	R44302	7	Tie Band	Order Additionally if required
6	L210204	3	Tie Band	Order Additionally if required, For 6MC/RC Series Tractor
7	L171201	1	Clip	Order Additionally if required
8	57M7244	1	Elec. Connector Housing	Engine Interface, X2M
8	57M7318	1	Elec. Connector Accessory	-
8	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
8	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
8	57M7259	1	Elec. Connector Seal	-
9	R104846	2	Elec. Connector Terminal	Cavity A, B
9	57M7259	1	Elec. Connector Seal	-
9	57M7493	2	Elec. Connector Seal	Cavity A, B
9	57M7347	1	Elec. Connector Accessory	-
9	57M7346	1	Elec. Connector Housing	Front PTO Speed Sensor, X167F
10	57M7813	1	Elec. Connector Housing	Front PTO Solenoid Valve, X95F
10	57M7829	2	Elec. Connector Terminal	Cavity A, B
11	57M7244	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W741, X002M
11	57M7318	1	Elec. Connector Accessory	-
11	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
11	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
12	57M7346	1	Elec. Connector Housing	Front PTO Speed Sensor, X167F
12	57M7347	1	Elec. Connector Accessory	-
12	R104846	2	Elec. Connector Terminal	Cavity A, B
12	57M7493	2	Elec. Connector Seal	Cavity A, B
13	57M7813	1	Elec. Connector Housing	Front PTO Solenoid Valve, X166F
13	57M7829	2	Elec. Connector Terminal	Cavity A, B

Electronic Support, Front PTO, W/O Electronic Control Unit, W/ TLS™, Attachment

Нет текстового описания
