Открытый узел

Control Unit / Wiring Harness, Front Loader / E-SCV ,Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15731	1	Electronic Control Unit	W/ M50 Controller
2	RE160961	1	Toggle/Rocker Switch	-
3	AL224175	1	Electronic Control Unit	M50 Controller, SUB FOR AL215297
4	19M6614	4	Cap Screw	M6 X 12
5	12M7133	4	Lock Washer	6 mm
6	14M7303	1	Flange Nut	M6
7	R44302	14	Tie Band	-
8	AL204930	1	Wiring Harness	-
9	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
9	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
9	57M7318	1	Elec. Connector Accessory	-
9	57M7244	1	Elec. Connector Housing	Engine Interface, X2M
10	57M7346	1	Elec. Connector Housing	Front PTO Speed Sensor, X167F
10	57M7347	1	Elec. Connector Accessory	-
10	R104846	2	Elec. Connector Terminal	Cavity A, B
10	57M7493	2	Elec. Connector Seal	Cavity A, B
11	57M7813	1	Elec. Connector Housing	Front PTO Solenoid Valve, X95F
11	57M7829	2	Elec. Connector Terminal	Cavity A, B
12	57M12234	12	Elec. Connector Accessory	-
13	L210204	1	Tie Band	-
14	L214454	1	Clamp	-
15	57M14447	1	Elec. Connector Accessory	-

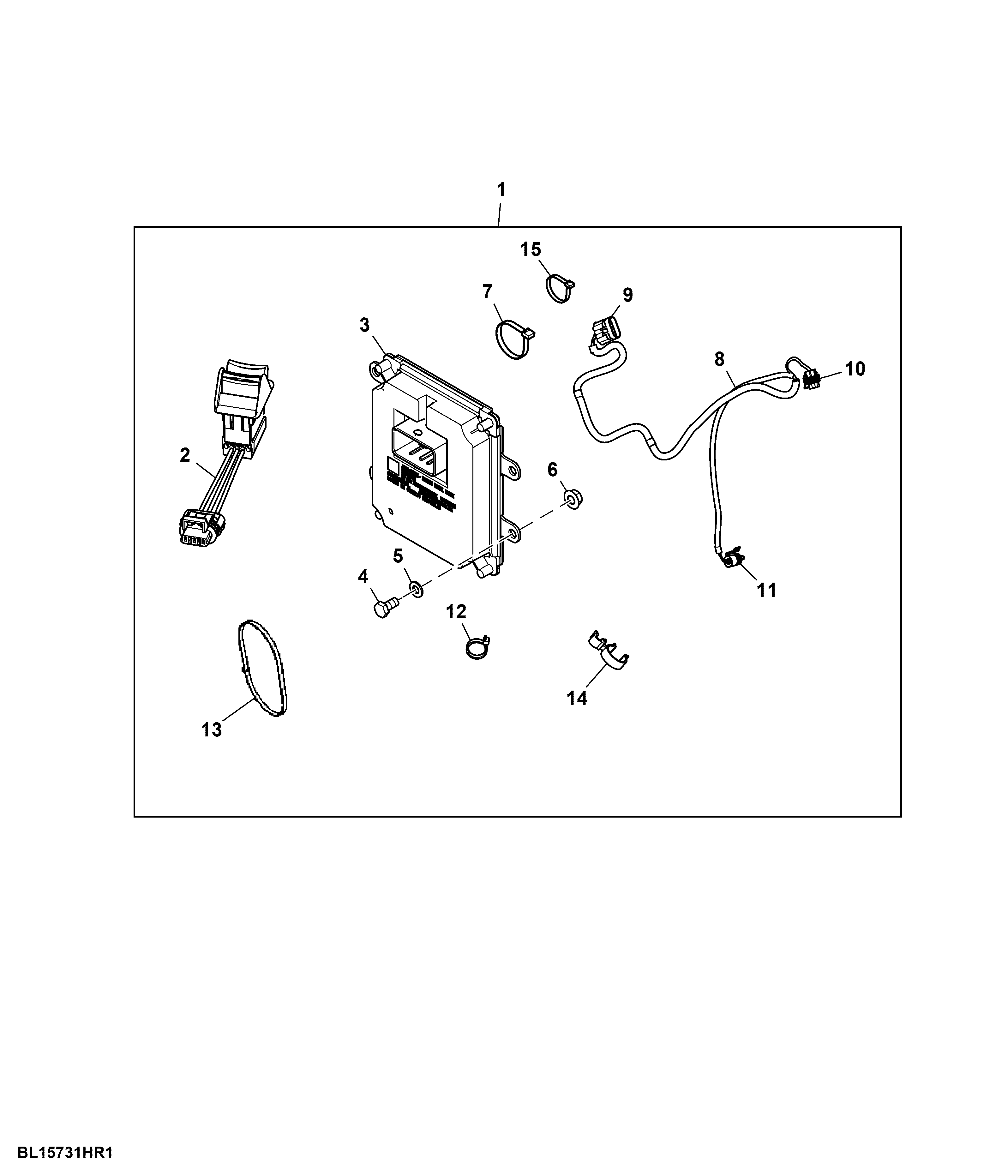

Control Unit / Wiring Harness, Front Loader / E-SCV ,Attachment

Нет текстового описания
