Открытый узел

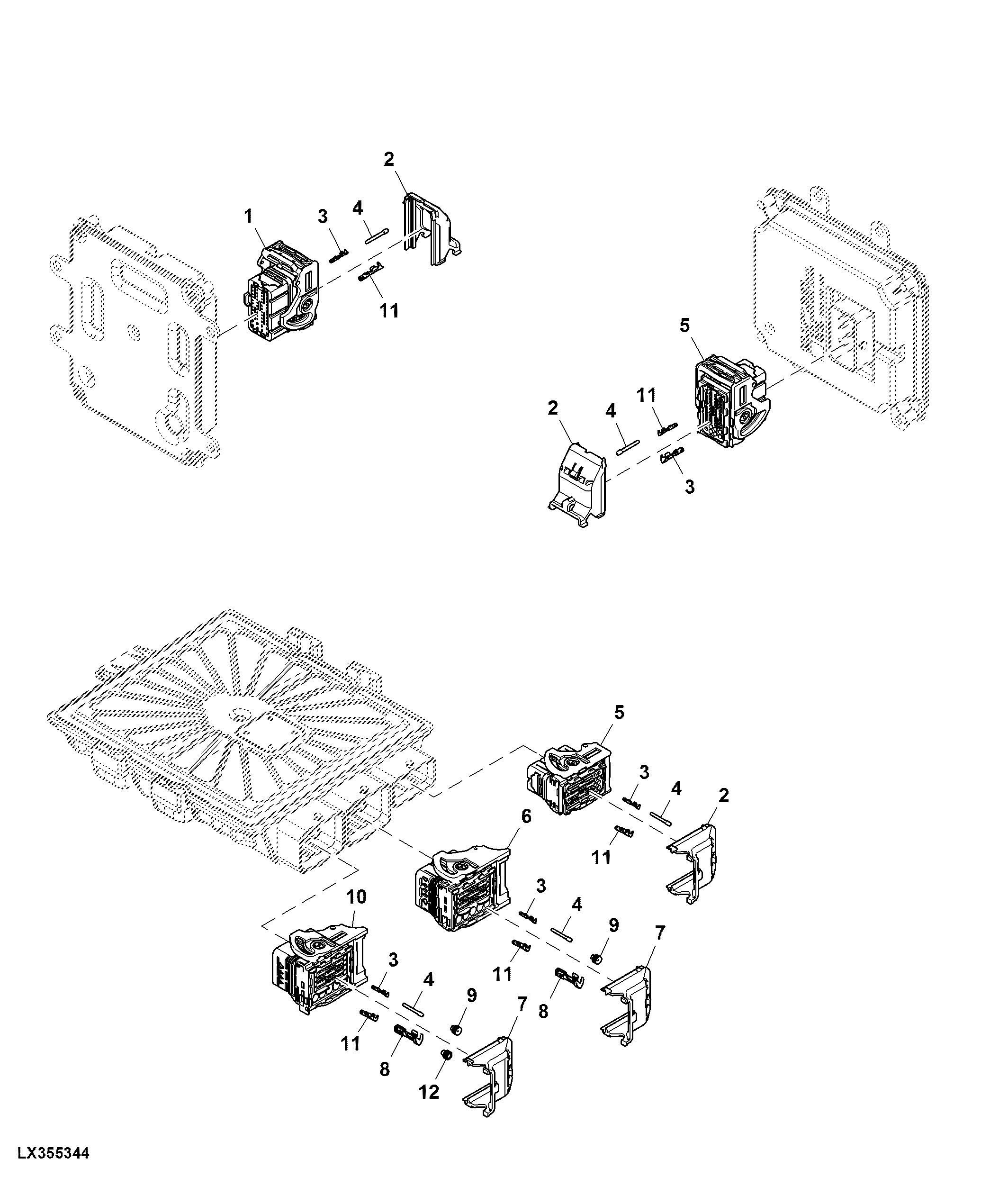

Connectors, Electronic Control Units, Cab, Main and Tractor Electronic Control Unit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10614	1	Elec. Connector Housing	48 - Pin Plug
2	57M10613	3	Elec. Connector Housing	-
3	57M10514	1	Elec. Connector Terminal	0.5 mm², Cable Gauge Plug Width
3	57M10330	1	Elec. Connector Terminal	0.75 mm², Cable Gauge Plug Width
4	57M10333	1	Elec. Connector Cavity Plug	White
4	57M10334	1	Elec. Connector Cavity Plug	Orange
5	57M10615	2	Elec. Connector Housing	48 - Pin Plug
6	57M9937	1	Elec. Connector Housing	53 - Pin Plug
7	57M10401	2	Elec. Connector Accessory	-
8	57M10332	1	Elec. Connector Terminal	0.5 - 1.0 mm², Cable Gauge Plug Width
8	57M10217	1	Elec. Connector Terminal	1.0 – 2.0 mm², Cable Gauge Plug Width
9	57M11959	1	Elec. Connector Seal	Red
10	57M10329	1	Elec. Connector Housing	53 - Pin Plug
11	57M10331	1	Elec. Connector Terminal	0.5 - 1.0 mm², Cable Gauge Plug Width
12	57M11973	1	Elec. Connector Seal	Green

Connectors, Electronic Control Units, Cab, Main and Tractor Electronic Control Unit

Нет текстового описания
