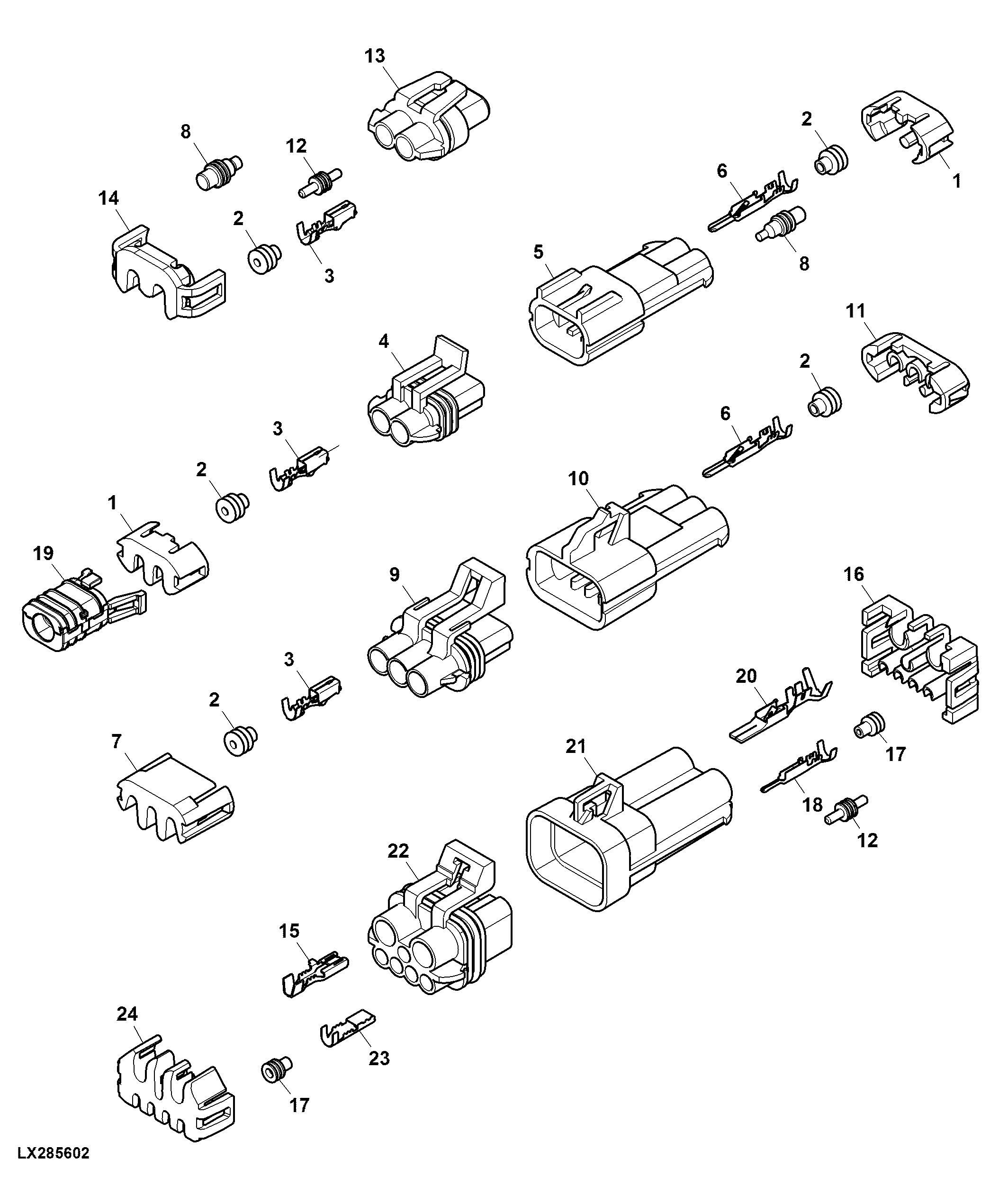

Connectors 2-, 3- and 7- Terminal, Metri Pack

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7306	1	Elec.Connect Locking Device	-
2	57M9217	1	Elec. Connector Seal	Blue
2	57M9216	1	Elec. Connector Seal	Gray, USE WITH 57M7304
2	R78063	1	Elec. Connector Seal	Gray
2	57M9218	1	Elec. Connector Seal	Green
2	57M9219	1	Elec. Connector Seal	Purple
2	R78062	1	Elec. Connector Seal	Blue, USE WITH 57M7280
3	57M7491	1	Elec. Connector Terminal	2.0 - 3.0 mm² , Cable Gauge Plug Width
3	57M7299	1	Elec. Connector Terminal	3.0 - 4.0 mm², Cable Gauge Plug Width
4	57M7309	1	Elec. Connector Housing	-
5	57M7304	1	Elec. Connector Housing	-
6	57M7286	1	Elec. Connector Terminal	2.5 - 4.0 mm², Cable Gauge Plug Width
7	57M7274	1	Elec. Connector Accessory	-
8	R78064	1	Elec. Connector Cavity Plug	Gray
9	57M7280	1	Elec. Connector Housing	-
10	57M7305	1	Elec. Connector Housing	-
11	57M7307	1	Electrical Connector Assy	-
12	57M7259	1	Elec. Connector Seal	Red
13	57M8839	1	Elec. Connector Housing	-
14	57M8129	1	Elec. Connector Terminal	Green
15	57M7581	1	Elec. Connector Terminal	1.0 - 2.5 mm², Cable Gauge Plug Width
16	57M7699	1	Elec. Connector Terminal	-
17	57M7258	1	Elec. Connector Seal	Red
17	57M9215	1	Elec. Connector Seal	CABLE OD = 1.20 - 1.85 mm, White
17	57M7493	1	Elec. Connector Seal	CABLE OD = 1.60 - 2.15 mm, White
18	R104919	1	Elec. Connector Terminal	0.5 - 1.0 mm², Cable Gauge Plug Width
19	57M10477	1	Elec. Connector Accessory	-
20	57M7583	1	Elec. Connector Terminal	2.0 - 3.0 mm², Cable Gauge Plug Width
21	57M7697	1	Electrical Connector Assy	-
22	57M7696	1	Elec. Connector Housing	-
23	R104846	1	Elec. Connector Terminal	0.5 - 1.0 mm², Cable Gauge Plug Width
23	57M9541	1	Elec. Connector Terminal	2.0 - 2.1 mm², Cable Gauge Plug Width
24	57M7698	1	Elec. Connector Terminal	-

Connectors 2-, 3- and 7- Terminal, Metri Pack
