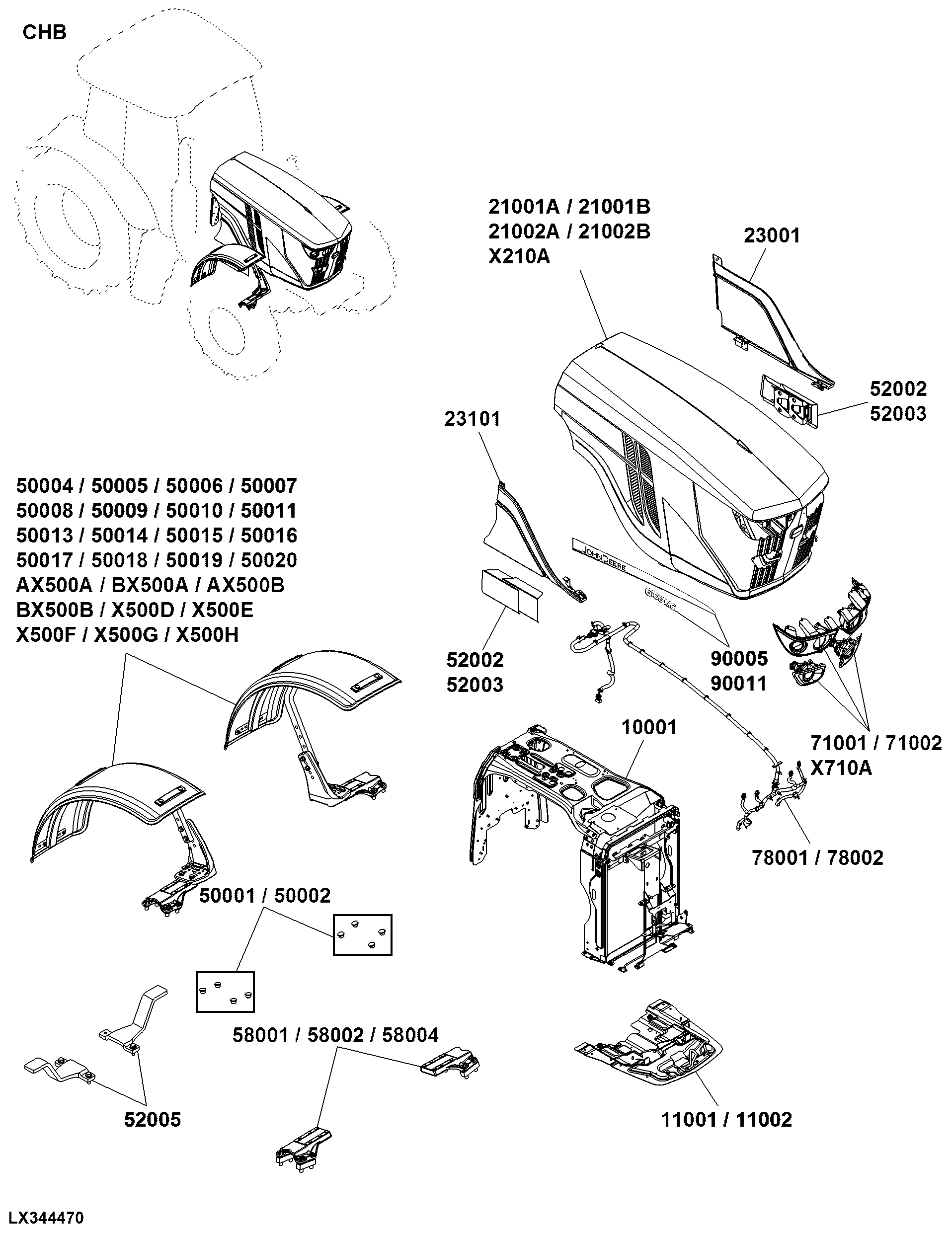

CHB Sheet Metal and Styling

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Hood Support	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 540 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 370 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 420 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 480 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 540 mm Wide	-
-	-	1	Front Fenders, W/ 2WD	-
-	-	1	Headlights, W/ Corner Lights	-
-	-	1	Headlights, W/O Corner Lights	-
-	-	1	Hood / Radiator Grille	-
-	-	1	Hood / Radiator Grille, Lockable	-
-	-	1	Hood Lift Cylinder / Front Grille	-
-	-	1	Hood Lift Cylinder / Front Grille, Lockable	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 480 mm Wide	-
-	-	1	Panel, Fender Stop, for Front Loader Application	-
-	-	1	Plastic Plugs, W/O Front Fender, 2WD Axle	-
-	-	1	Plastic Plugs, W/O Front Fender, MFWD Axle	-
-	-	1	Plate, Fender Stop	-
-	-	1	Plate, Fender Stop	-
-	-	1	Side Cover, LH	-
-	-	1	Side Cover, RH	-
-	-	1	Spacer, Front Fender, W/ AutoTrac™	-
-	-	1	Trademark, Decals, Black / Silver	-
-	-	1	Trademark, Decals, Black / Yellow	-
-	-	1	Wiring Harness, Hood, W/ Corner Lights	-
-	-	1	Wiring Harness, Hood, W/O Corner Lights	-
-	-	1	Cover, Front Axle Support, W/ Front PTO	-
-	-	1	Attachment, Base Support, Front Fenders, 3 Piece MFWD Axle, Rigid	-
-	-	1	Attachment, Front Fenders, Regular Support, 3 Piece MFWD Axle, 370 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, 3 Piece MFWD Axle, 420 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, 3 Piece MFWD Axle, 480 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, 3 Piece MFWD Axle, 540 mm Wide	-
-	-	1	Attachment, Front Fenders, W/ 4WD	-
-	-	1	Attachment, Hood Locking Parts, Vandal Protection	-
-	-	1	Attachment, Wiring Harness Hood / Cornerlight	-
-	-	1	Base Part, Front Fender, W/ AutoTrac™	-
-	-	1	Base Support, Front Fenders, 3 Piece MFWD Axle, Pivot, Attachment	-
-	-	1	Base Support, Front Fenders, 3 Piece MFWD Axle, Rigid, Attachment	-
-	-	1	Base Support, Front Fenders, MFWD Axle	-
-	-	1	Attachment, Base Support, Front Fenders, 3 Piece MFWD Axle, Pivot	-
-	-	1	Cover, Front Axle Support, W/O Front PTO	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Pivot, 370 mm Wide	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Pivot, 420 mm Wide	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Pivot, 480 mm Wide	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Pivot, 540 mm Wide	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Rigid, 370 mm Wide	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Rigid, 420 mm Wide	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Rigid, 480 mm Wide (866616 - )	-
-	-	1	Front Fenders, Regular Support, 3 Piece MFWD Axle, Rigid, 540 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 370 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 420 mm Wide	-
