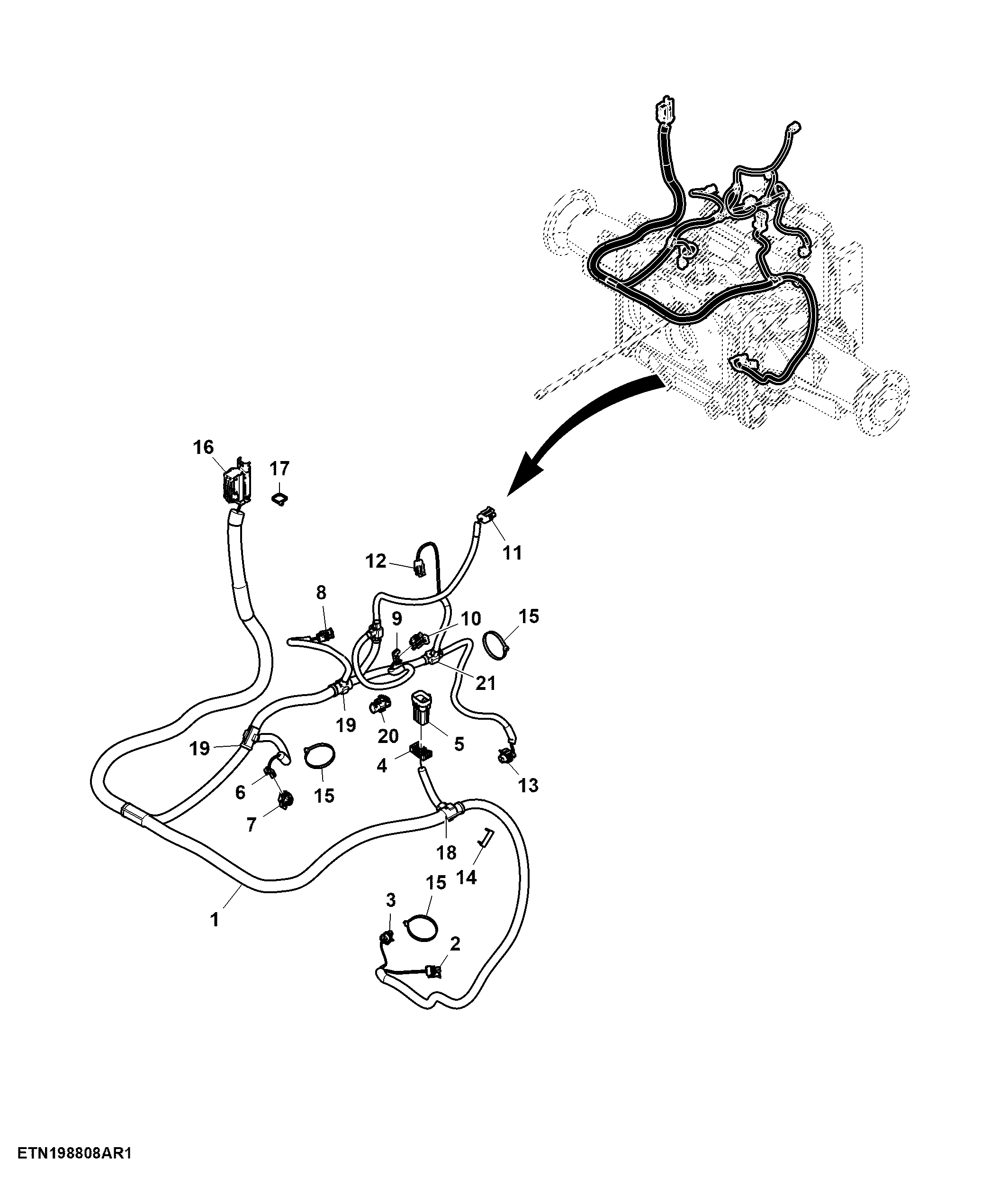

Transmission Wiring Harness, Rear (010000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL232232	1	Wiring Harness	Transmission
2	57M7796	1	Elec. Connector Housing	Left Draft Sensor X089F
2	57M7496	3	Elec. Connector Terminal	-
3	57M7796	1	Elec. Connector Housing	Right Draft Sensor X090F
3	57M7496	3	Elec. Connector Terminal	-
4	57M7699	1	Elec. Connector Terminal	-
5	57M7697	1	Electrical Connector Assy	Transmission to 7 Pin Trailer Socket X234M
5	57M7252	5	Elec. Connector Terminal	Cavity A, B, C, D, F
5	57M7583	2	Elec. Connector Terminal	Cavity E, G
5	57M9215	5	Elec. Connector Seal	Cavity A, B, C, D, F
5	57M9563	2	Elec. Connector Cable Seal	Cavity E, G
6	57M7347	1	Elec. Connector Accessory	-
7	57M10770	2	Elec. Connector Terminal	-
7	57M9215	2	Elec. Connector Seal	-
7	57M7346	1	Elec. Connector Housing	Hall Sending Unit Speed Meter X088F-3
8	57M7379	1	Elec. Connector Housing	Differential Lock Solenoid X087F
8	57M7829	2	Elec. Connector Terminal	-
9	57M7317	1	Elec. Connector Accessory	-
10	57M7255	1	Elec. Connector Housing	Rockshaft Position Sensor X096F
10	57M10770	3	Elec. Connector Terminal	-
10	57M9215	3	Elec. Connector Seal	-
11	57M10466	1	Elec. Connector Housing	Stepper Motor X092F
11	57M7830	4	Elec. Connector Terminal	-
12	57M7829	2	Elec. Connector Terminal	-
12	57M7813	1	Elec. Connector Housing	Rear PTO Solenoid On/Off X095F
13	57M7346	1	Elec. Connector Housing	Sending Unit for Rear PTO Speed X094F
13	57M9215	2	Elec. Connector Seal	-
14	L101761	1	Clamp	-
15	R44302	3	Tie Band	-
16	57M7400	2	Elec. Connector Seal	Cavity 6, 7
16	57M8107	1	Elec. Connector Cavity Plug	Cavity 2
16	57M7403	18	Elec. Connector Cavity Plug	Cavity 10, 16, 17, 19, 20, 21, 22, 27, 28, 29, 30, 34, 35, 36, 38, 39, 41, 4
16	57M7401	3	Elec. Connector Cavity Plug	Cavity 3, 4, 8
16	57M8241	12	Elec. Connector Terminal	Cavity 9, 14, 18, 23, 24, 25, 26, 31, 32, 33, 37, 40
16	57M8106	1	Elec. Connector Seal	Cavity 1
16	57M7402	4	Elec. Connector Cable Seal	Cavity 11, 12, 13, 15
16	57M7399	1	Elec. Connector Seal	Cavity 5
16	57M9532	2	Elec. Connector Terminal	Cavity 6, 7
16	57M8941	1	Elec. Connector Terminal	Cavity 5
16	57M8425	16	Elec. Connector Terminal	Cavity 9, 11, 12, 13, 14, 15, 18, 23, 24, 25, 26, 31, 32, 33, 37, 40
16	57M8097	1	Retainer	-
16	57M13596	1	Elec. Connector Accessory	-
16	57M8197	1	Elec. Connector Housing	Inline Platform X430F
17	57M13596	1	Elec. Connector Accessory	-
18	57M10289	1	Elec. Connector Accessory	-
19	57M10638	2	Elec. Connector Accessory	-
20	57M12109	1	Elec. Connector Accessory	-
21	57M10094	2	Elec. Connector Accessory	-

Transmission Wiring Harness, Rear (010000 - )

Нет текстового описания
