Открытый узел

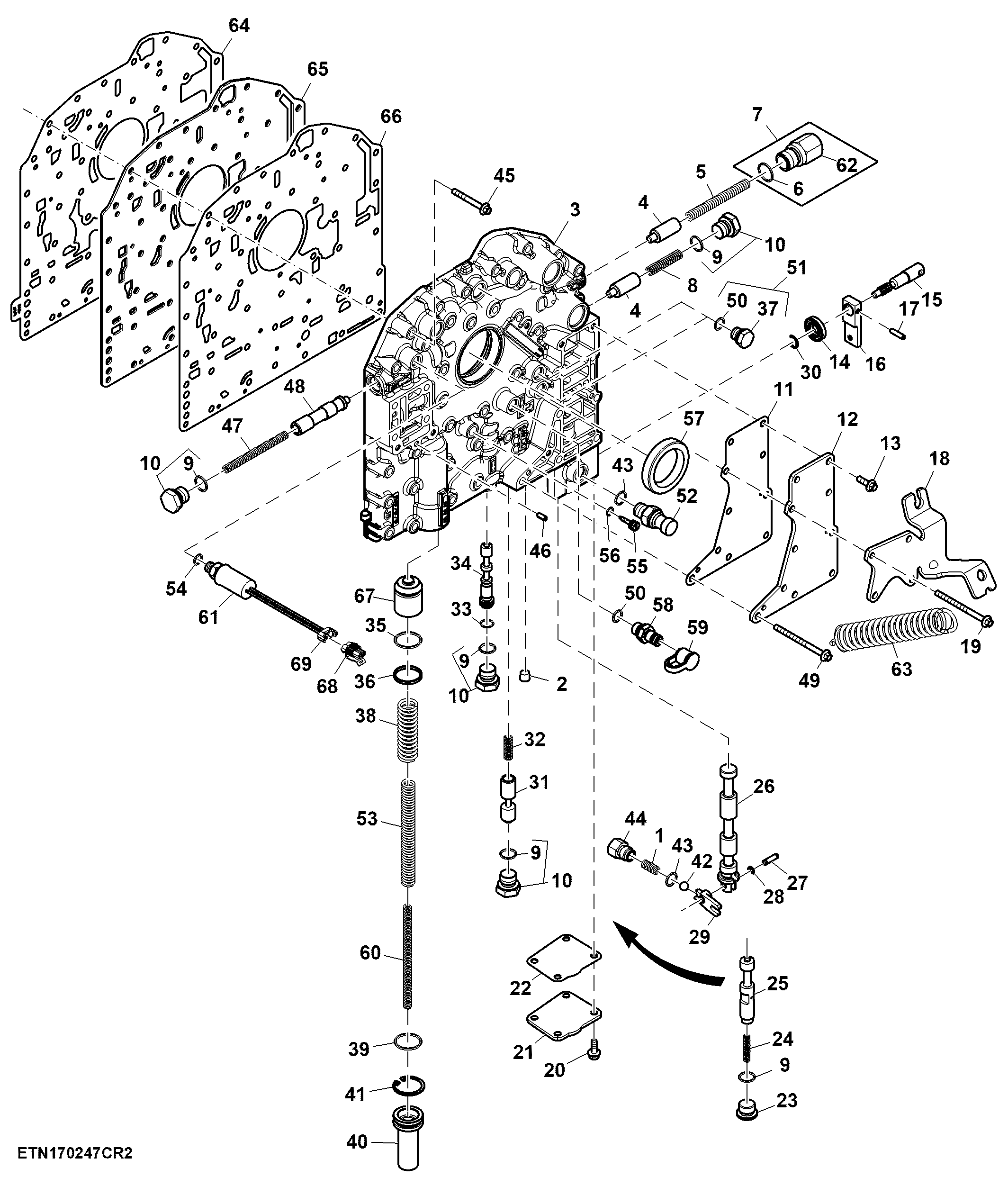

Front Valve Housing and Valve, PowrQuad™, W/ Mechanical Reverser Control (010000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R197564	1	Compression Spring	SUB FOR L171152
2	R121580	1	Pipe Plug	-
3	R331511	1	Housing	-
4	R95081	2	Valve	Lube Relief Valve
5	R95084	1	Spring	-
6	51M7045	1	O-Ring	19.300 X 2.200 mm
7	AL166743	1	Fitting Plug	-
8	R116040	1	Spring	-
9	51M7043	5	O-Ring	15.300 X 2.200 mm
10	RE46685	4	Fitting Plug	-
11	R341957	1	Gasket	-
12	R167722	1	Cover	Front
13	L156151	3	Screw	-
14	AR103873	1	Seal	-
15	R184115	1	Shaft	LGTH = 75 mm
16	L154293	1	Lever	LH
17	34M7268	1	Spring Pin	5 X 20 mm
18	L154134	1	Holder	-
19	L158312	4	Cap Screw	-
20	19M7775	4	Screw	M6 X 16
21	R186903	1	Cover	Bottom
22	R341956	1	Gasket	-
23	L41384	1	Pipe Plug	-
24	R129184	1	Compression Spring	-
25	R167684	1	Spool Valve	Engagement Override Valve
26	R224445	1	Spool	-
27	R192193	1	Pin Fastener	-
28	40M7251	1	Snap Ring	-
29	R197326	1	Lever	Bottom
30	H63237	1	Snap Ring	-
31	R153841	1	Spool Valve	-
32	T23853	1	Spring	-
33	R28776	1	O-Ring	-
34	R134141	1	Valve	-
35	P51079	1	O-Ring	-
36	R559033	1	Seal	-
37	R107768	2	Drain Plug	-
38	R222602	1	Spring	-
39	R104728	1	O-Ring	-
40	R87455	1	Plug	-
41	40M1857	1	Snap Ring	-
42	R42849	1	Ball	-
43	51M7042	2	O-Ring	13.300 X 2.200 mm
44	R202861	1	Fitting Plug	-
45	R109067	34	Screw	-
46	34M5028	4	Spring Pin	5 X 12 mm
47	R95077	1	Spring	-
48	R95076	1	Valve	Transmission Oil Filter Relief Valve
49	R109066	3	Screw	-
50	51M7041	3	O-Ring	11.300 X 2.200 mm
51	RE46684	2	Fitting Plug	-
52	RE46534	1	Switch	Ball Actuated
53	R95354	1	Compression Spring	-
54	51M7040	1	O-Ring	9.300 X 2.200 mm
55	R34028	1	Bolt	-
56	R27976	1	O-Ring	-
57	RE39354	1	Seal	-
58	AL80099	1	Hydr. Quick Coupler Plug	-
59	R77175	1	Cover	-
60	R95353	1	Compression Spring	-
61	RE212876	1	Pressure Switch	28 V, INCLUDES 57M7328 AND 57M7289
62	L166446	1	Fitting Plug	-
63	R105605	1	Spring	-
64	R338152	1	Gasket	-
65	L225197	1	Plate	-
66	R338151	1	Gasket	-
67	R88791	1	Piston	-
68	57M7328	1	Elec. Connector Housing	-
68	R104846	2	Elec. Connector Terminal	-
68	57M7258	2	Elec. Connector Seal	-
69	57M7289	1	Elec.Connect Locking Device	-

Front Valve Housing and Valve, PowrQuad™, W/ Mechanical Reverser Control (010000 - )
