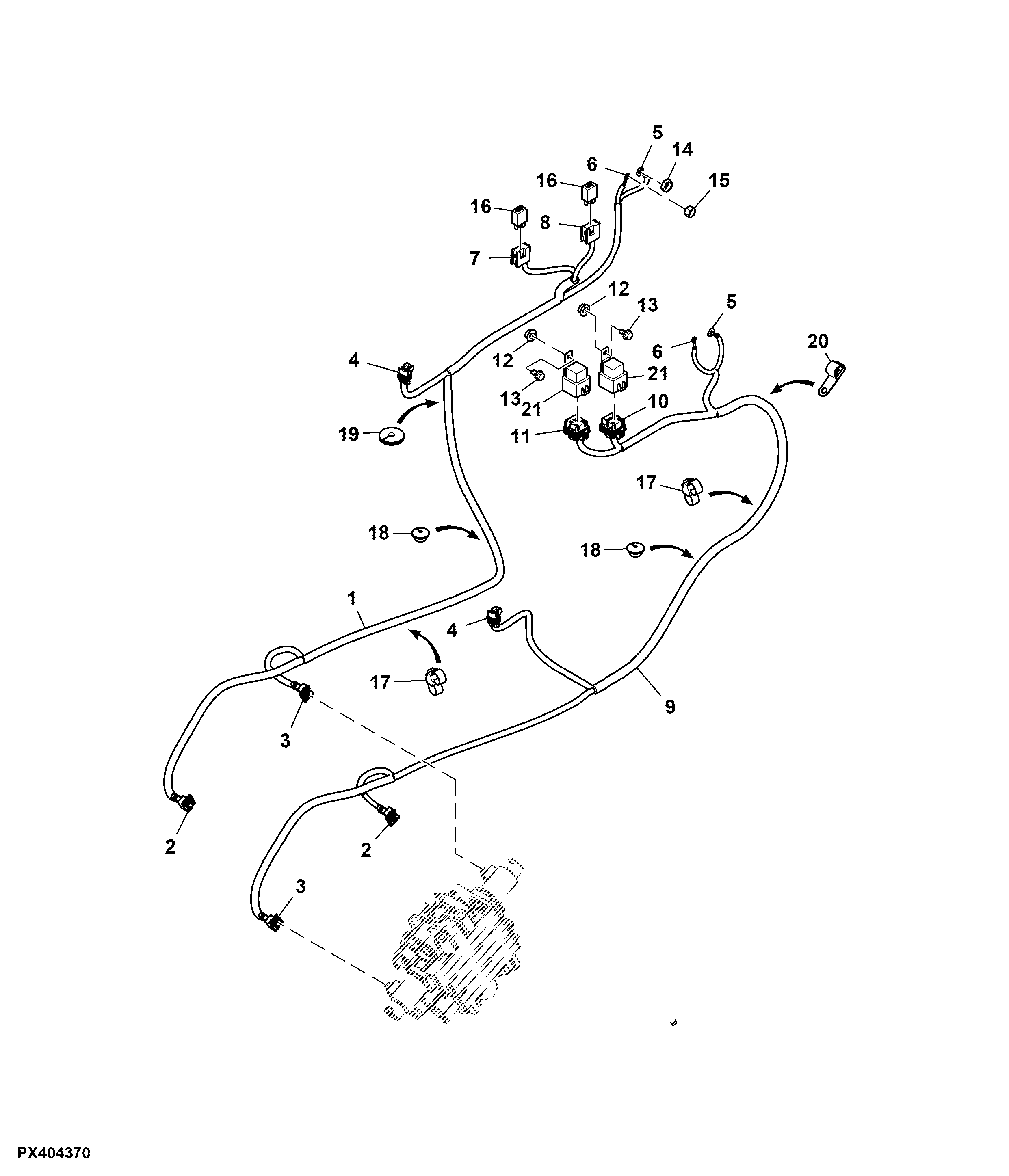

Triple Mid SCV W/ Controls (5/5)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ22619	1	Wiring Harness	Mid SCV, Cab
2	57M10118	2	Elec. Connector Housing	Mid Mount Solenoid Gray Y03A
2	57M8621	2	Elec. Connector Terminal	Cavity 1,2
2	57M8515	2	Elec. Connector Seal	Cavity 1,2
3	57M10118	2	Elec. Connector Housing	Mid Mount Solenoid Black Y03B
3	57M8621	2	Elec. Connector Terminal	Cavity 1,2
3	57M8515	2	Elec. Connector Seal	Cavity 1,2
4	R104846	3	Elec. Connector Terminal	Cavity A, B, C
4	57M9215	3	Elec. Connector Seal	Cavity A, B, C
4	57M7317	1	Elec. Connector Accessory	-
4	57M7255	1	Elec. Connector Housing	Mid Mount Solenoid Switch S19
5	57M8871	1	Elec. Connector Terminal	Junction Block Switched Power X02-BAtt
6	57M8875	1	Elec. Connector Terminal	Junction Block Ground X02-GND
7	57M8845	1	Elec. Connector Housing	Mid Mount Relay Gray K26
7	57M11409	1	Elec. Connector Terminal	Cavity 1
7	57M7881	1	Elec. Connector Terminal	Cavity 3
7	57M7513	1	Elec. Connector Terminal	Cavity 5
8	57M7513	1	Elec. Connector Terminal	Cavity 5
8	57M7881	1	Elec. Connector Terminal	Cavity 3
8	57M8845	1	Elec. Connector Housing	Mid Mount Relay Black K25
8	57M11409	1	Elec. Connector Terminal	Cavity 1
9	SJ22620	1	Wiring Harness	Mid SCV, OOS
10	57M7966	1	Electrical Connector Assy	Mid Mount Relay Gray K26
10	57M8878	1	Elec.Connect Locking Device	-
10	57M7707	4	Elec. Connector Terminal	Cavity 30, 85, 86, 87
10	57M9219	4	Elec. Connector Seal	Cavity 30, 85, 86, 87
11	57M9219	4	Elec. Connector Seal	Cavity 30, 85, 86, 87
11	57M7707	4	Elec. Connector Terminal	Cavity 30, 85, 86, 87
11	57M8878	1	Elec.Connect Locking Device	-
11	57M7966	1	Electrical Connector Assy	Mid Mount Relay Black K25
12	14M7303	2	Flange Nut	M6
13	19M7774	2	Screw	M6 X 12
14	14M7194	1	Nut	M6
15	14M7297	1	Nut	M5
16	AL76702	2	Relay	10 A
17	R213663	8	Clamp	-
18	L76801	2	Grommet	-
19	R112645	1	Grommet	-
20	57M8824	1	Elec. Connector Accessory	-
21	SJ15811	2	Relay	12 V
