Electronic Control Unit / Antenna / Wiring Harness, JDLink™, Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SU61613	1	Bracket	-
2	L207604	6	Washer	-
3	R105388	2	Tie Band	-
4	SU50051	1	Bracket	-
5	SU50050	1	Bracket	-
6	PFA10877	1	Antenna	-
7	SJ39082	1	Wiring Harness	JDLink™
8	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
8	57M8164	2	Elec. Connector Terminal	Cavity C, D
8	N282069	2	Elec. Connector Terminal	Cavity A, B
8	57M7919	1	Elec. Connector Housing	Service ADVISOR™ 03
9	57M10613	1	Elec. Connector Housing	-
10	57M7920	1	Electrical Connector Assy	Mate to Service ADVISOR™ 02
10	57M7546	2	Elec. Connector Terminal	Cavity A, B
10	57M8165	2	Elec. Connector Terminal	Cavity C, D
10	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
11	57M10334	5	Elec. Connector Cavity Plug	Cavity L2, L3, L4, M3, M4
11	57M10333	37	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F4, G1, G2, G3, G4, H3, H4, J1, J2, J3, J4, K1, K2, K3, K4
11	57M10331	3	Elec. Connector Terminal	Cavity L1, M1, M2
11	Z36392	1	Tie Band	-
11	57M10614	1	Elec. Connector Housing	MTG Connector 01
11	57M10514	3	Elec. Connector Terminal	Cavity F3, H1, H2
12	AE44929	1	Electrical Connector Assy	Outlet Connector 04
12	57M9163	1	Elec. Connector Accessory	-
12	57M9239	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	M137828	2	Bumper	-
14	L116644	2	Washer	-
15	19M7897	4	Screw	M8 X 35
16	19M8875	5	Screw	M6 X 25
17	PFA11990	1	Electronic Control Unit	-
18	PFA10884	1	Antenna	-
19	PH50229231	1	Electrical Connector Assy	-
20	PH60228055	1	Cover	-
21	21H1442	2	Screw	0.112" X 3/8"
22	RE258807	5	Tie Band	-
23	14M7396	4	Lock Nut	M8

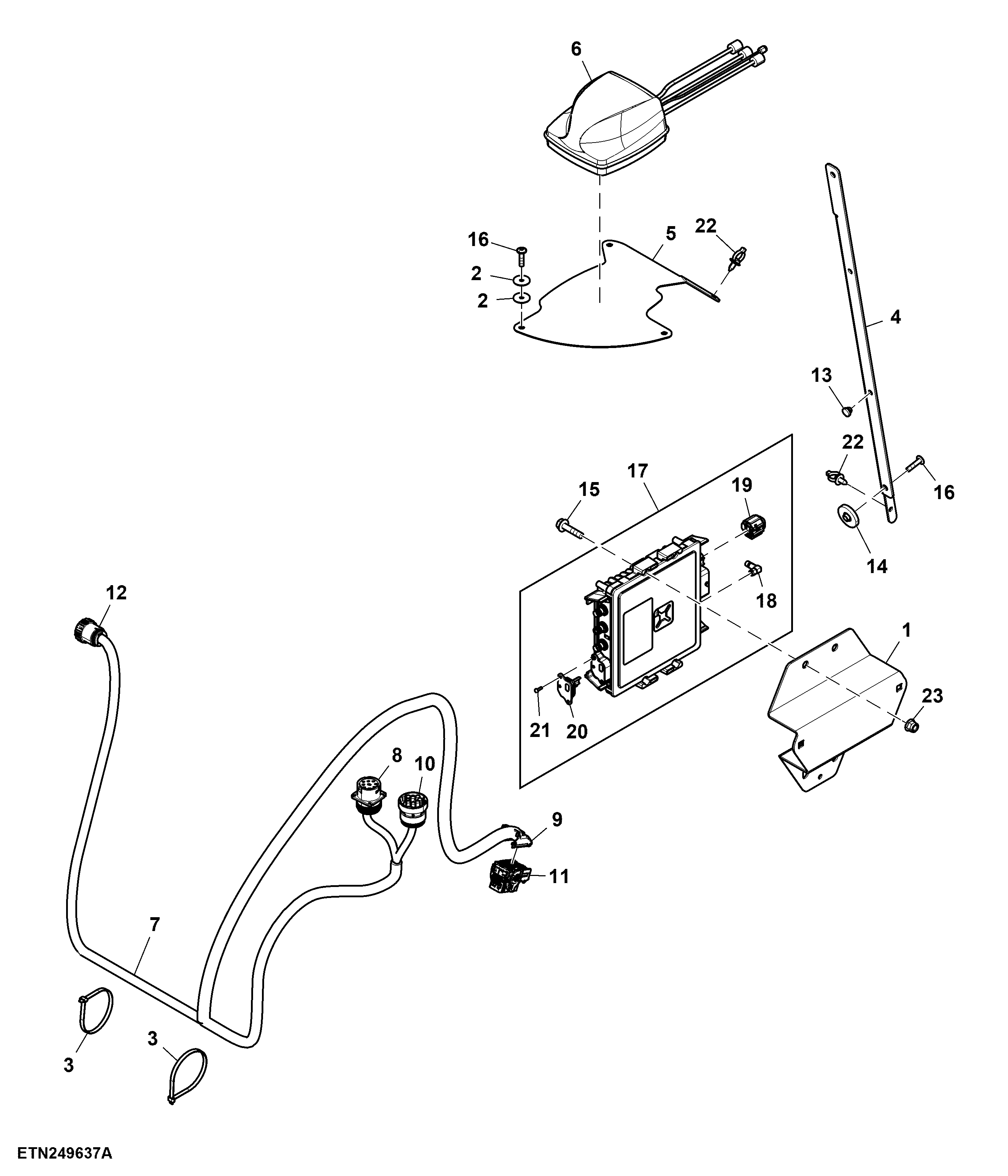

Electronic Control Unit / Antenna / Wiring Harness, JDLink™, Cab
