Chassis Wiring Harness, PowrReverser™, OOS, FT4, (3/6) (012460 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ39020	1	Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Park Brake Switch 55
2	57M9215	3	Elec. Connector Seal	Cavity A, B, C
2	57M7290	1	Elec. Connector Accessory	-
2	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
3	RE12364	1	Electrical Connector Assy	Brake Switch 2 55
3	R78060	2	Elec. Connector Terminal	Cavity A, C
3	57M10924	1	Elec. Connector Terminal	Cavity B
3	57M9218	2	Elec. Connector Seal	Cavity A, C
3	57M9219	1	Elec. Connector Seal	Cavity B
4	RE12364	1	Electrical Connector Assy	Brake Switch 1 56
4	R78060	2	Elec. Connector Terminal	Cavity A, C
4	57M10924	1	Elec. Connector Terminal	Cavity B
4	57M9218	2	Elec. Connector Seal	Cavity A, C
4	57M9219	1	Elec. Connector Seal	Cavity B
5	R112653	2	Grommet	-
6	57M7469	1	Electrical Connector Assy	-
6	57M9215	1	Elec. Connector Seal	Cavity D
6	57M7258	3	Elec. Connector Seal	Cavity A, B, C
6	R104919	4	Elec. Connector Terminal	Cavity A, B, C, D
6	57M7839	1	Electrical Connector Assy	Hood Harness 36
7	57M8910	1	Clip	-
8	R276202	1	Bracket	-
9	57M7182	1	Elec. Connector Housing	Diode Module 61
9	57M7825	2	Elec. Connector Terminal	Cavity 2, 6
9	57M9491	2	Elec. Connector Terminal	Cavity 4, 5
9	57M9492	1	Elec. Connector Terminal	Cavity 8
9	57M9714	3	Elec. Connector Terminal	Cavity 1, 3, 7
10	RE262484	1	Diode	P Pin Block
11	57M9491	1	Elec. Connector Terminal	Cavity 5
11	57M9492	1	Elec. Connector Terminal	Cavity 3
11	Z61311	1	Elec. Connector Housing	Neutral Relay K11
11	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
12	Z61311	1	Elec. Connector Housing	Headlight Relay K27
12	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
12	57M9491	2	Elec. Connector Terminal	Cavity 3, 5
13	Z61311	1	Elec. Connector Housing	Accessory Relay K07
13	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
13	57M9491	2	Elec. Connector Terminal	Cavity 3, 5
14	57M9880	3	Relay	12 A, SUB FOR 57M8853
15	57M8484	1	Elec. Connector Housing	Instrument Cluster J1 ICC J1
15	57M9919	1	Elec. Connector Accessory	-
15	57M8299	4	Elec. Connector Terminal	Cavity G, H, L, N
15	57M8300	10	Elec. Connector Terminal	Cavity A, B, C, D, E, J, K, M, R, S
15	57M9223	4	Elec. Connector Seal	Cavity G, H, L, N
15	57M8321	10	Elec. Connector Terminal	Cavity A, B, C, D, E, J, K, M, R, S
16	57M8164	3	Elec. Connector Terminal	Cavity 5, 6, 7
16	57M7678	1	Elec. Connector Terminal	-
16	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch 57
17	57M7255	1	Elec. Connector Housing	Hand Throttle 42
17	57M7290	1	Elec. Connector Accessory	-
17	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9215	3	Elec. Connector Seal	Cavity A, B, C
18	R77480	1	Electrical Connector Assy	Horn Switch 52
18	57M9199	2	Elec. Connector Terminal	Cavity 1, 2
19	57M7263	1	Elec. Connector Housing	EH-MFWD Switch 51
19	R104919	3	Elec. Connector Terminal	Cavity A, B, C
19	57M9215	3	Elec. Connector Seal	Cavity A, B, C
20	L78202	1	Elec. Connector Housing	Key Switch 53
21	57M9835	1	Elec. Connector Housing	Instrument Cluster J2 ICC J2
21	57M10201	1	Elec. Connector Accessory	-
21	57M8300	10	Elec. Connector Terminal	Cavity A, B, E, F, G, H, J, M, N, P
21	57M8321	10	Elec. Connector Terminal	Cavity A, B, E, F, G, H, J, M, N, P

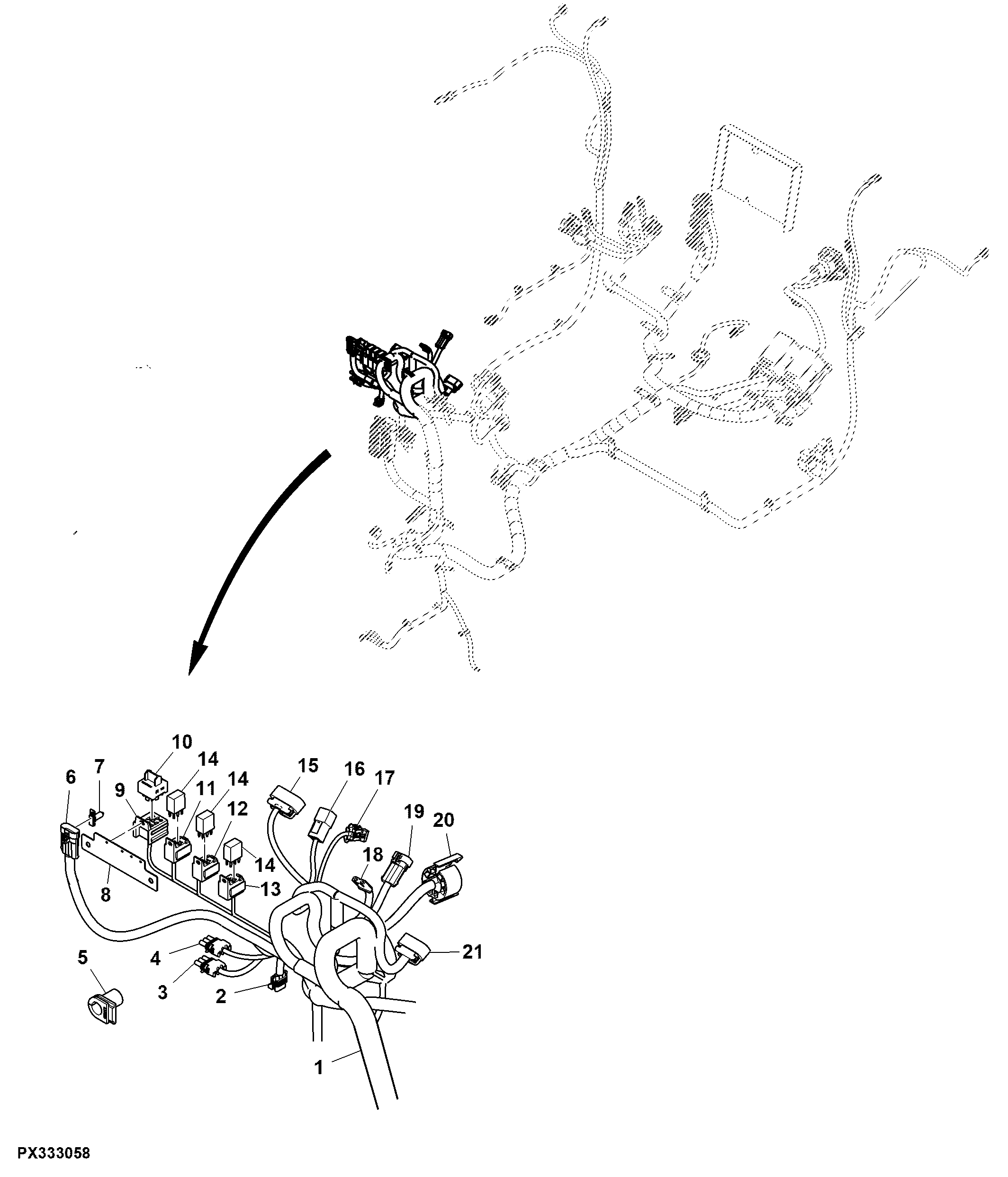

Chassis Wiring Harness, PowrReverser™, OOS, FT4, (3/6) (012460 - )
