Chassis Wiring Harness, PowrReverser™, OOS, FT4, (2/6) ( - 012459)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ29249	1	Wiring Harness	-
2	57M8875	1	Elec. Connector Terminal	Fuel Tank Ground 30
3	57M7894	1	Elec. Connector Terminal	Single Point Ground Stud 31A
4	57M7894	1	Elec. Connector Terminal	Single Point Ground Stud 31B
5	57M7894	1	Elec. Connector Terminal	Single Point Ground Stud 31C
6	57M8902	8	Clip	-
7	57M9432	6	Clamp	-
8	57M7762	1	Electrical Connector Assy	Engine Harness 2 33
8	57M10916	1	Elec. Connector Terminal	Cavity 1
9	57M7953	1	Electrical Connector Assy	Foot Throttle 32
9	57M9180	3	Elec. Connector Terminal	, Cavity 1, 2, 4
9	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 4
10	57M9772	1	Elec. Connector Housing	Cap
11	57M9776	1	Elec. Connector Housing	Control Area Network Terminator 34
11	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
12	RE538503	1	Elec. Connector Accessory	ECU J3 Connector ECU J3
12	57M10321	11	Elec. Connector Terminal	Cavity 12, 13, 14, 16, 17, 23, 24, 27, 43, 44, 50
12	57M9808	11	Elec. Connector Terminal	Cavity 1, 2, 7, 9, 10, 11, 28, 32, 36, 48, 49
13	R528122	1	Elec. Connector Accessory	-
14	57M9881	6	Clamp	-
15	57M9223	8	Elec. Connector Seal	Cavity C, E, F, G, K, M, N, R
15	57M8323	1	Elec. Connector Terminal	Cavity A
15	57M8322	1	Elec. Connector Terminal	Cavity J
15	57M8321	1	Elec. Connector Terminal	Cavity P
15	57M9539	8	Elec. Connector Terminal	Cavity C, E, F, G, K, M, N, R
15	57M8306	1	Elec. Connector Terminal	Cavity J
15	57M8301	1	Elec. Connector Terminal	Cavity P
15	57M11996	1	Elec. Connector Accessory	-
15	57M8281	1	Elec. Connector Housing	Transmission Harness 2 24
15	57M8307	1	Elec. Connector Terminal	Cavity A
16	57M9223	12	Elec. Connector Seal	Cavity A, B, C, D, G, J, K, L, M, N, P, R
16	57M8321	3	Elec. Connector Terminal	Cavity E, F, J
16	57M8300	3	Elec. Connector Terminal	Cavity E, F, J
16	57M8299	12	Elec. Connector Terminal	Cavity A, B, M, C, D, G, J, K, L, N, P, R
16	57M9919	1	Elec. Connector Accessory	-
16	57M8484	1	Elec. Connector Housing	Transmission Harness 1 23
17	57M7260	1	Elec. Connector Housing	Clutch Assembly 49
17	57M7291	1	Electrical Connector Assy	-
17	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
17	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
18	57M7840	1	Elec. Connector Housing	FNR Switch 48
18	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
18	57M7494	2	Elec. Connector Terminal	Cavity B, C
18	R104846	2	Elec. Connector Terminal	Cavity A, D
18	57M7469	1	Electrical Connector Assy	-
19	57M7256	1	Elec. Connector Housing	Audible Alarm 50
19	57M7289	1	Elec.Connect Locking Device	-
19	R104919	2	Elec. Connector Terminal	Cavity A, B
19	57M9215	2	Elec. Connector Seal	Cavity A, B
20	57M8871	1	Elec. Connector Terminal	Neutral Start Relay C 39A
21	57M8871	1	Elec. Connector Terminal	Neutral Start Relay C 39B
22	57M9196	1	Elec. Connector Terminal	Neutral Start Relay D 40
23	57M10497	1	Elec. Connector Housing	Neutral start Relay Control 41
23	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
23	57M9911	2	Elec. Connector Cable Seal	Cavity 1, 2
24	57M8868	1	Elec. Connector Terminal	Chassis Ground 25

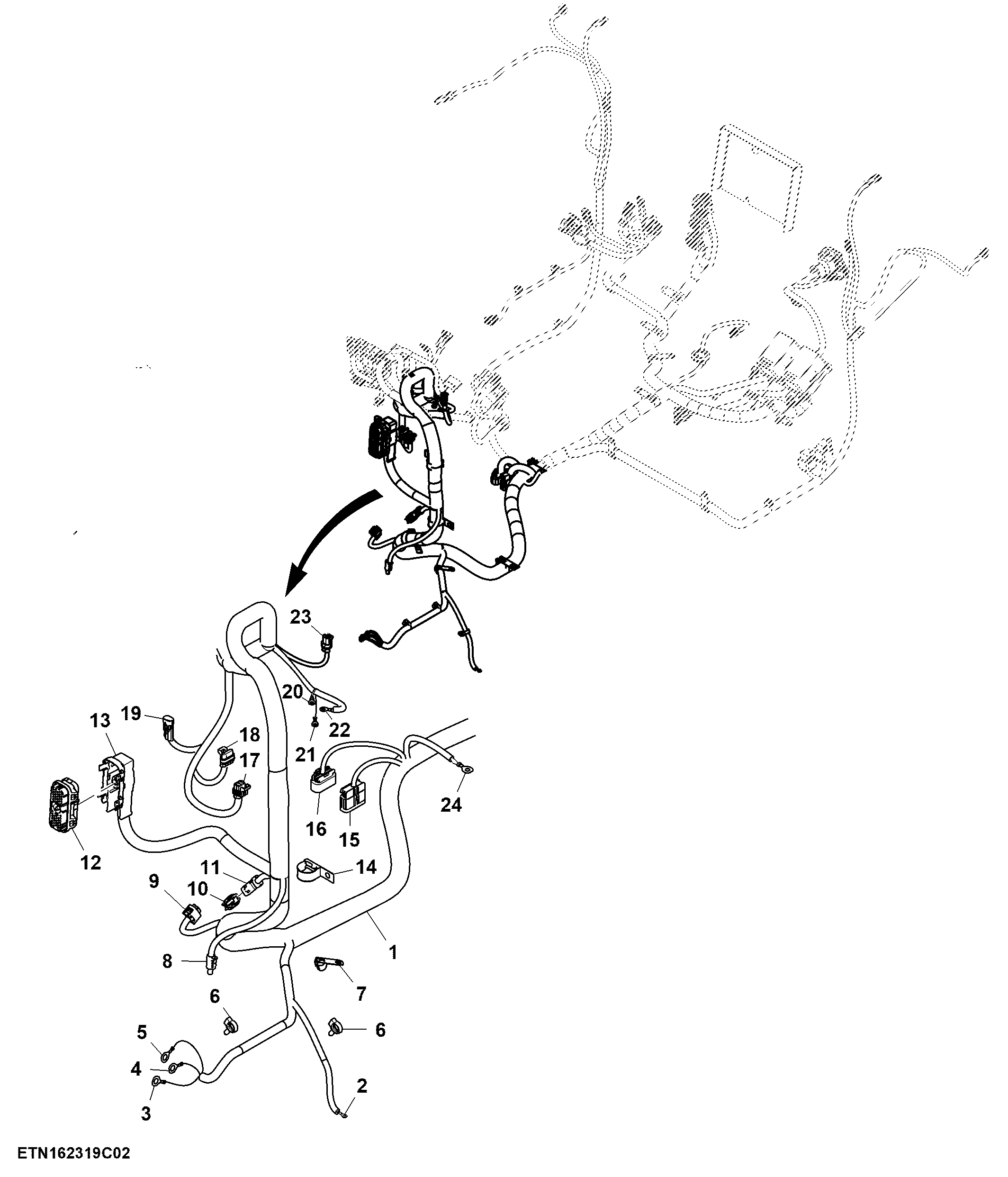

Chassis Wiring Harness, PowrReverser™, OOS, FT4, (2/6) ( - 012459)
