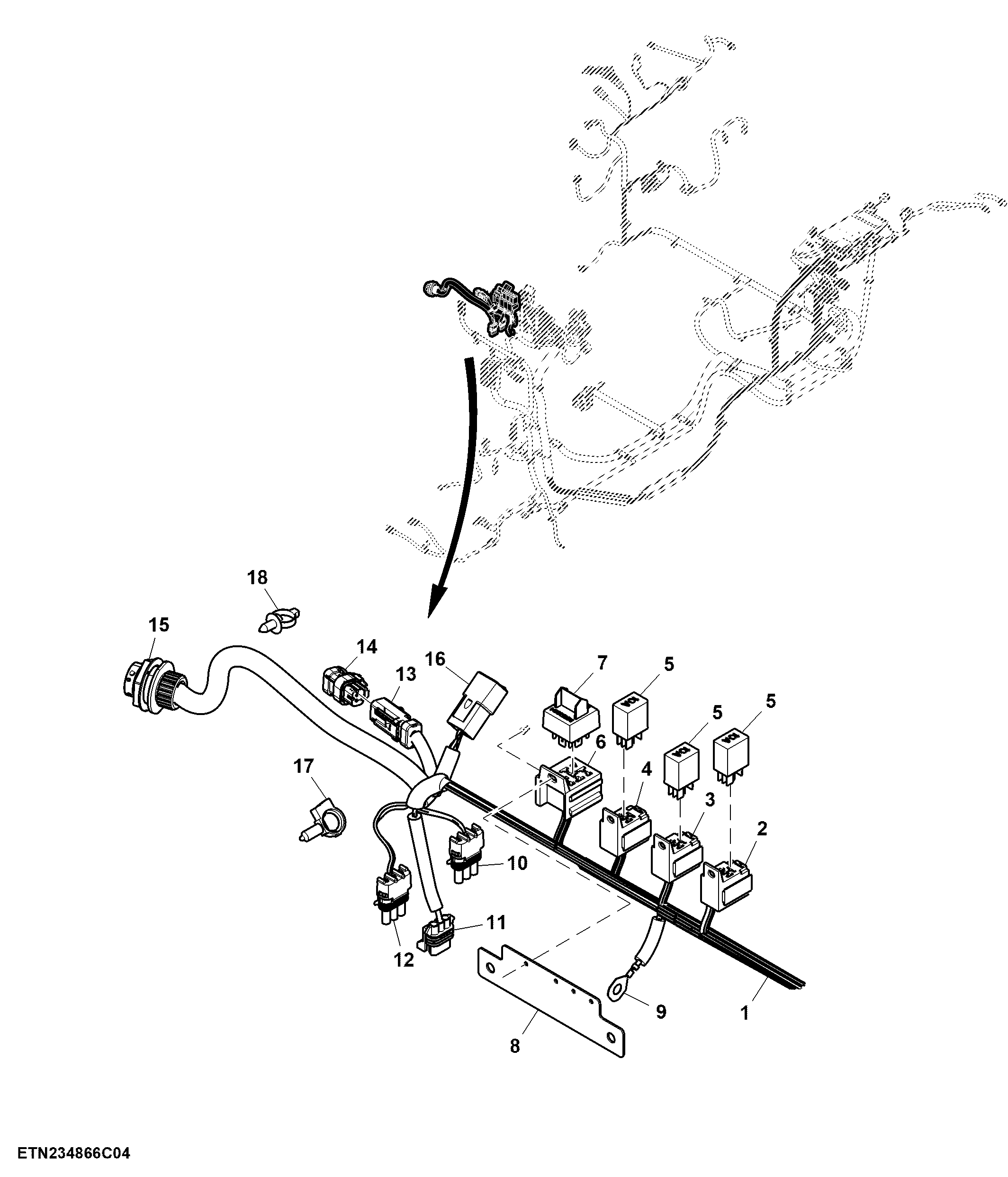

Cab Wiring Harness, PowrReverser™ (4/8) (012460 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ41792	1	Wiring Harness	Front Console Harness
2	Z61311	1	Elec. Connector Housing	Accessory Relay (K07)
2	57M9492	2	Elec. Connector Terminal	Cavity 3, 5
2	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
3	Z61311	1	Elec. Connector Housing	Headlight Relay (K27)
3	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
3	57M10980	2	Elec. Connector Terminal	Cavity 3, 5
4	Z61311	1	Elec. Connector Housing	Neutral Relay (K11)
4	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9492	1	Elec. Connector Terminal	Cavity 3
4	57M10980	1	Elec. Connector Terminal	Cavity 5
5	AL76702	3	Relay	10 A
6	57M10426	1	Elec. Connector Accessory	Diode Module
6	57M10980	4	Elec. Connector Terminal	Cavity 30, 85, 86, 87A
6	57M9492	1	Elec. Connector Terminal	Cavity 87
7	RE262484	1	Diode	-
8	R276202	1	Bracket	-
9	57M8868	1	Elec. Connector Terminal	Chassis Ground
10	57M9219	3	Elec. Connector Seal	Cavity A, B, C
10	RE12364	1	Electrical Connector Assy	Brake Switch
10	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
11	57M7255	1	Elec. Connector Housing	Park Brake Switch
11	57M7290	1	Elec. Connector Accessory	-
11	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
11	57M9215	3	Elec. Connector Seal	Cavity A, B, C
12	RE12364	1	Electrical Connector Assy	Second Brake Switch
12	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
12	57M9219	3	Elec. Connector Seal	Cavity A, B, C
13	57M9776	1	Elec. Connector Housing	AMS Can Terminator
13	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
14	57M11134	1	Elec. Connector Housing	-
15	57M9231	1	Elec. Connector Housing	AMS Monitor
15	57M9232	1	Elec. Connector Seal	-
15	57M9567	2	Elec. Connector Terminal	Cavity N, P
15	57M9230	3	Elec. Connector Terminal	Cavity R, U, V
16	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch
16	57M7678	1	Elec. Connector Terminal	-
16	57M8164	3	Elec. Connector Terminal	Cavity 4, 5, 6
16	R78069	3	Elec. Connector Cavity Plug	Cavity 1, 2, 3
17	57M8902	8	Clip	-
18	RE258807	1	Tie Band	-
