Открытый узел

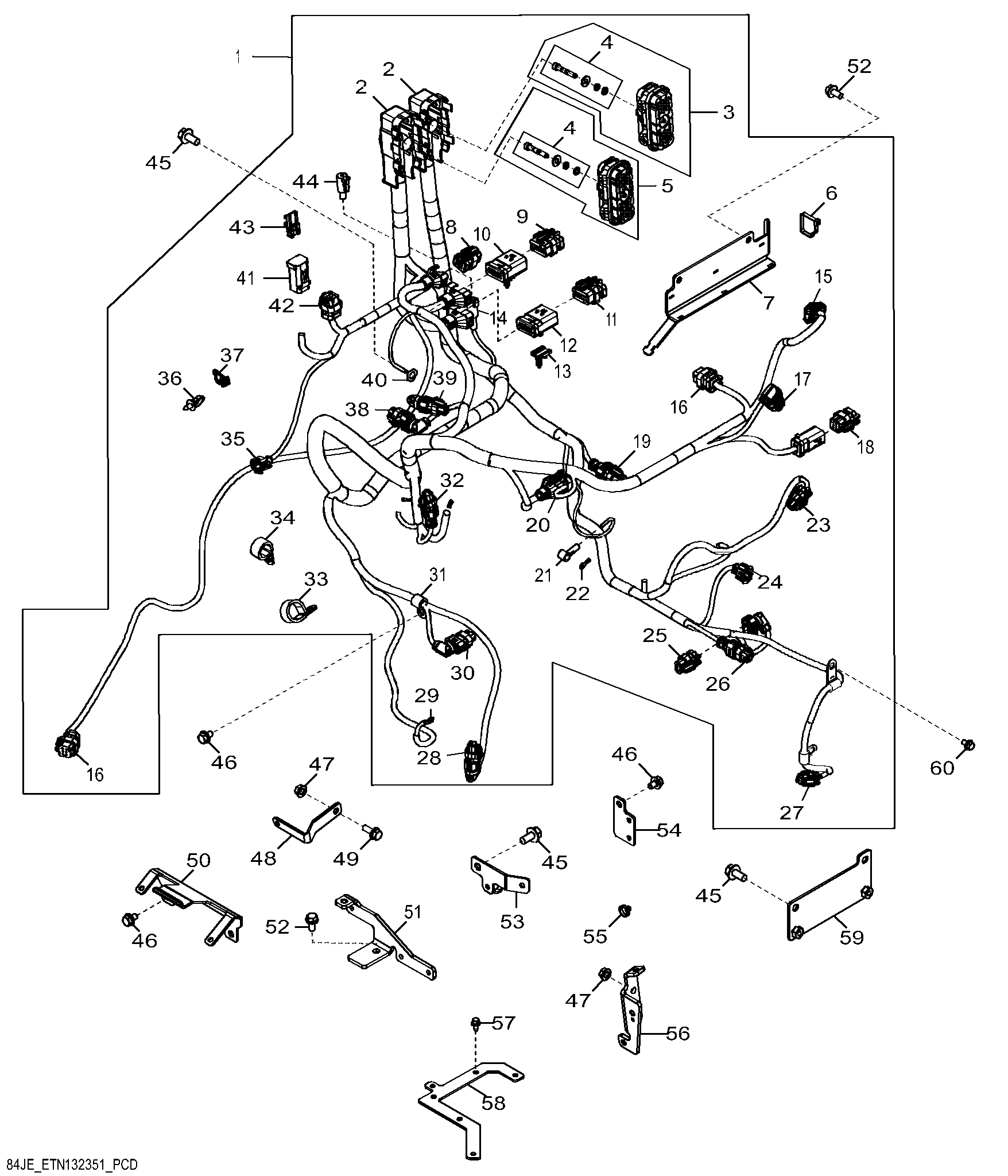

84JE Wiring Harness

84JE Wiring Harness

84JE Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

84JE Wiring Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ101755	1	Wiring Harness	-
2	R528122	2	Elec. Connector Accessory	-
3	RE543733	1	Elec. Connector Accessory	-
4	RE545538	2	Bolt Kit	-
5	RE538504	1	Elec. Connector Accessory	-
6	R44302	3	Tie Band	-
7	R542761	1	Bracket	-
8	57M9786	3	Elec. Connector Housing	-
8	57M9841	3	Elec. Connector Accessory	-
9	57M9801	1	Elec. Connector Housing	-
10	57M9805	1	Elec. Connector Housing	-
10	57M9844	1	Elec. Connector Accessory	-
11	57M9802	1	Elec. Connector Housing	-
12	57M9825	1	Elec. Connector Housing	-
12	57M9844	1	Elec. Connector Accessory	-
13	57M9940	3	Elec. Connector Accessory	-
14	57M7763	1	Elec. Connector Housing	-
15	57M9144	1	Elec. Connector Housing	-
16	57M9787	3	Elec. Connector Housing	-
17	57M9781	2	Elec. Connector Housing	-
17	57M10156	1	Elec. Connector Accessory	-
18	57M9786	1	Elec. Connector Housing	-
18	57M9789	1	Elec. Connector Housing	-
19	57M9780	3	Elec. Connector Housing	-
19	57M9838	3	Elec. Connector Accessory	-
20	57M9792	1	Elec. Connector Housing	-
20	57M9842	1	Elec. Connector Accessory	-
21	T103917	1	Boot	-
22	57M7559	1	Elec. Connector Terminal	-
23	57M9773	1	Elec. Connector Housing	-
24	57M9828	1	Elec. Connector Housing	-
25	57M9782	1	Elec. Connector Housing	-
25	57M10156	1	Elec. Connector Accessory	-
26	57M9775	2	Elec. Connector Housing	-
26	57M9837	2	Elec. Connector Accessory	-
27	57M9775	1	Elec. Connector Housing	-
28	57M10155	1	Elec. Connector Accessory	-
28	57M9772	1	Elec. Connector Housing	-
29	57M7547	1	Elec. Connector Terminal	-
30	57M10156	1	Elec. Connector Accessory	-
30	57M9783	1	Elec. Connector Housing	-
31	57M12128	1	Clamp	-
32	57M9774	2	Elec. Connector Housing	-
32	57M9837	2	Elec. Connector Accessory	-
33	57M12125	1	Clamp	-
34	57M12124	1	Clamp	-
35	57M10315	1	Elec. Connector Housing	-
36	RE258807	6	Tie Band	-
37	RE564777	7	Tie Band	-
38	57M9780	1	Elec. Connector Housing	-
38	57M10156	1	Elec. Connector Accessory	-
39	57M9773	3	Elec. Connector Housing	-
39	57M10155	3	Elec. Connector Accessory	-
40	57M9535	1	Elec. Connector Terminal	-
41	57M11336	3	Elec. Connector Accessory	-
42	57M9786	1	Elec. Connector Housing	-
43	57M9717	1	Elec.Connect Locking Device	-
44	57M7762	1	Electrical Connector Assy	-
45	19M7784	3	Screw	M10 X 20
46	RE524730	7	Cap Screw	-
47	14M7298	3	Flange Nut	M8
48	R534484	1	Bracket	-
49	19M7866	1	Screw	M8 X 20
50	DZ100473	1	Bracket	-
51	DZ102175	1	Bracket	-
52	19M7865	3	Screw	M8 X 16
53	R531628	1	Bracket	-
54	R532475	1	Bracket	-
55	R527993	2	Tie Band	-
56	DZ100263	1	Bracket	-
57	37M7089	2	Screw	M6 X 12
58	DZ100264	1	Bracket	-
59	RE565010	1	Bracket	-
60	19M7861	2	Screw	M6 X 10
