Cable, Battery, W/ Cut-Off Relay, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16102	1	Switch Kit	-
2	AL227565	1	Relay	-
3	AL228471	1	Battery Cable	-
4	AL228960	1	Wiring Harness	INCLUDES L171035
5	57M11416	1	Elec. Connector Housing	Fuse for StarFire™ Receiver, XF034F
5	57M8057	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7121	2	Fuse	10 A
7	57M11416	1	Elec. Connector Housing	Fuse for Radio, XF031F
7	57M8057	2	Elec. Connector Terminal	Cavity 1, 2
8	57M9939	1	Elec. Connector Accessory	-
9	57M10603	4	Elec. Connector Terminal	Cavity 3, 6, 11, 12
9	57M10336	4	Elec. Connector Cavity Plug	Cavity 1, 2, 9, 10
9	57M9813	4	Elec. Connector Terminal	Cavity 4, 5, 7, 8
9	57M9804	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W60X and W010 or W011, X1272M-2
10	57M7348	1	Elec. Connector Terminal	Ground Point, XGND56
11	L171035	1	Tie Band	-
12	57M9535	1	Elec. Connector Terminal	Battery Cut-Off Relay, Port 2, XA136F-2
13	57M9796	1	Elec. Connector Housing	Battery Cut-Off Relay, Connector 1, XA136M-1
13	57M9813	4	Elec. Connector Terminal	Cavity 1, 2, 4, 6
13	57M10603	3	Elec. Connector Terminal	Cavity 3, 5, 8
13	57M10336	1	Elec. Connector Cavity Plug	Cavity 7
14	AL231338	1	Battery Cable	-
15	AL231339	1	Battery Cable	-

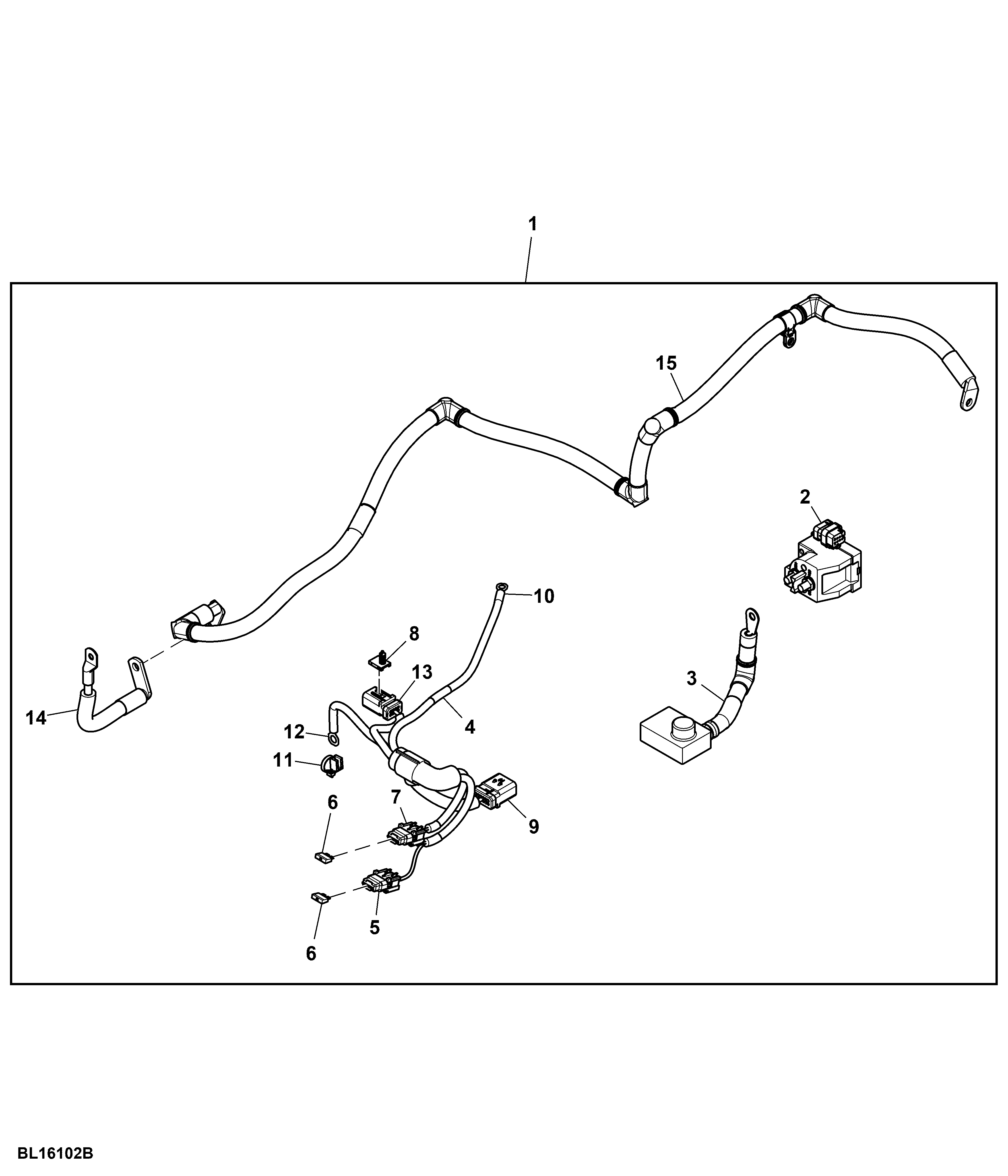

Cable, Battery, W/ Cut-Off Relay, Attachment
