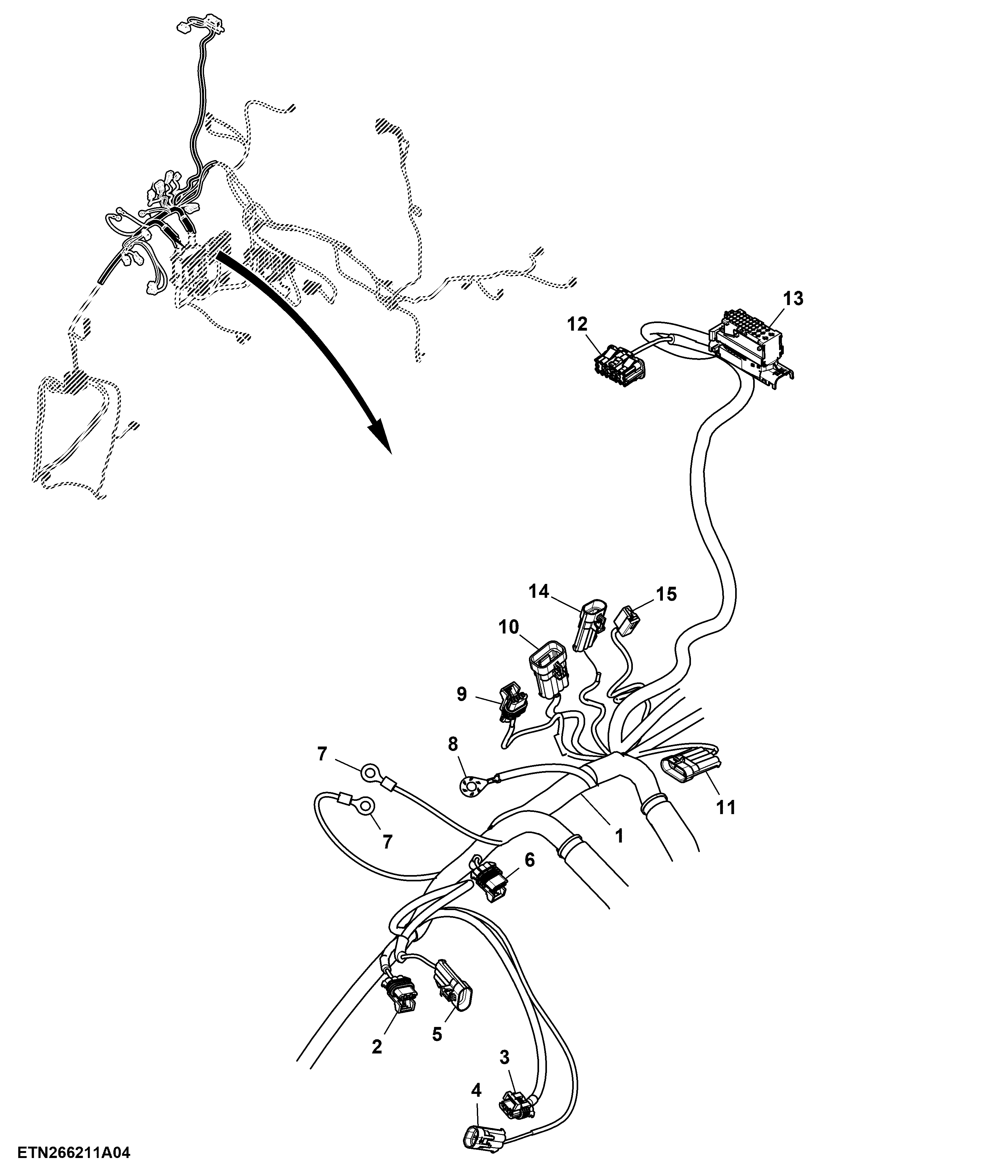

Wiring Harness, Cab (4/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234234	1	Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Differential Lock Switch X122F
2	57M7259	1	Elec. Connector Seal	Cavity B
2	57M9214	1	Elec. Connector Seal	Cavity C
2	57M9215	1	Elec. Connector Seal	Cavity A
2	57M10770	1	Elec. Connector Terminal	Cavity A
2	57M7290	1	Elec. Connector Accessory	-
2	57M7494	1	Elec. Connector Terminal	Cavity C
3	57M7255	1	Elec. Connector Housing	Hand Throttle X460F
3	57M7290	1	Elec. Connector Accessory	-
3	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
3	57M9214	3	Elec. Connector Seal	Cavity A, B, C
4	57M7256	1	Elec. Connector Housing	Park Switch X503M
4	57M7289	1	Elec.Connect Locking Device	-
4	57M9546	1	Elec. Connector Terminal	Cavity A
4	57M7252	1	Elec. Connector Terminal	Cavity B
4	57M9214	1	Elec. Connector Seal	Cavity A
4	57M9215	1	Elec. Connector Seal	Cavity B
5	57M9214	3	Elec. Connector Seal	Cavity A, B, C
5	57M9546	3	Elec. Connector Terminal	Cavity A, B, C
5	57M7257	1	Elec. Connector Housing	MFWD Switch X245M
5	57M7290	1	Elec. Connector Accessory	-
6	57M7255	1	Elec. Connector Housing	Resume Switch X636F
6	57M7290	1	Elec. Connector Accessory	-
6	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9215	3	Elec. Connector Seal	Cavity A, B, C
7	57M9419	2	Elec. Connector Terminal	Ground
8	57M7118	1	Elec. Connector Terminal	Ground
9	57M7255	1	Elec. Connector Housing	Load Depth X014F-2
9	57M9214	1	Elec. Connector Seal	Cavity B
9	57M9215	2	Elec. Connector Seal	Cavity A, C
9	57M7494	1	Elec. Connector Terminal	Cavity B
9	57M10770	2	Elec. Connector Terminal	Cavity A, C
9	57M7290	1	Elec. Connector Accessory	-
10	57M9214	6	Elec. Connector Seal	Cavity C, D, E, F, G, H
10	57M9215	2	Elec. Connector Seal	Cavity A, B
10	57M7252	2	Elec. Connector Terminal	Cavity A, B
10	57M7283	1	Elec.Connect Locking Device	-
10	57M7264	1	Elec. Connector Housing	Linear Hitch X014M-1
10	57M9546	6	Elec. Connector Terminal	Cavity C, D, E, F, G, H
11	57M8415	1	Elec. Connector Housing	Cruise Control X236F
11	57M7469	1	Electrical Connector Assy	-
11	57M9546	3	Elec. Connector Terminal	Cavity A, C, D
11	57M9214	3	Elec. Connector Seal	Cavity A, C, D
11	57M7259	1	Elec. Connector Seal	Cavity B
12	L35424	2	Electrical Connector Assy	Cavity 3, 13
12	L36681	1	Elec. Connector Terminal	Cavity 12
12	L36685	3	Elec. Connector Terminal	Cavity 9 - 11
12	57M7161	8	Elec. Connector Terminal	Cavity 2, 4 - 8, 15, 16
12	57M7323	1	Elec. Connector Housing	Inline Blower X182F
13	57M8941	1	Elec. Connector Terminal	Cavity 3
13	57M7403	25	Elec. Connector Cavity Plug	Cavity 10 - 15, 20, 21, 24, 26, 27, 29 - 42
13	57M7401	3	Elec. Connector Cavity Plug	Cavity 6 - 8
13	57M8241	9	Elec. Connector Terminal	Cavity 9, 16 - 19, 22, 23, 25, 28
13	57M7400	2	Elec. Connector Seal	Cavity 4, 5
13	57M7399	1	Elec. Connector Seal	Cavity 3
13	57M11944	1	Elec. Connector Seal	Cavity 2
13	57M7398	7	Elec. Connector Terminal	Cavity 16 - 19, 22, 23, 25
13	57M8425	2	Elec. Connector Terminal	Cavity 9, 28
13	57M8078	2	Elec. Connector Terminal	Cavity 4, 5
13	57M13998	1	Elec. Connector Terminal	Cavity 2
13	57M8097	1	Retainer	-
13	57M13596	1	Elec. Connector Accessory	-
13	57M8197	1	Elec. Connector Housing	Inline Roof X400F
14	57M7257	1	Elec. Connector Housing	Rear PTO Switch X125M
14	57M7290	1	Elec. Connector Accessory	-
14	57M7252	1	Elec. Connector Terminal	Cavity A
14	57M9546	2	Elec. Connector Terminal	Cavity B, C
14	57M9215	1	Elec. Connector Seal	Cavity A
14	57M9214	2	Elec. Connector Seal	Cavity B, C
15	57M7065	1	Elec. Connector Housing	Cigarette Light X128F
15	57M7430	2	Elec. Connector Terminal	Cavity 1, 2

Wiring Harness, Cab (4/7)
