Platform Wiring Harness (3/6)

Platform Wiring Harness (3/6)

Platform Wiring Harness (3/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

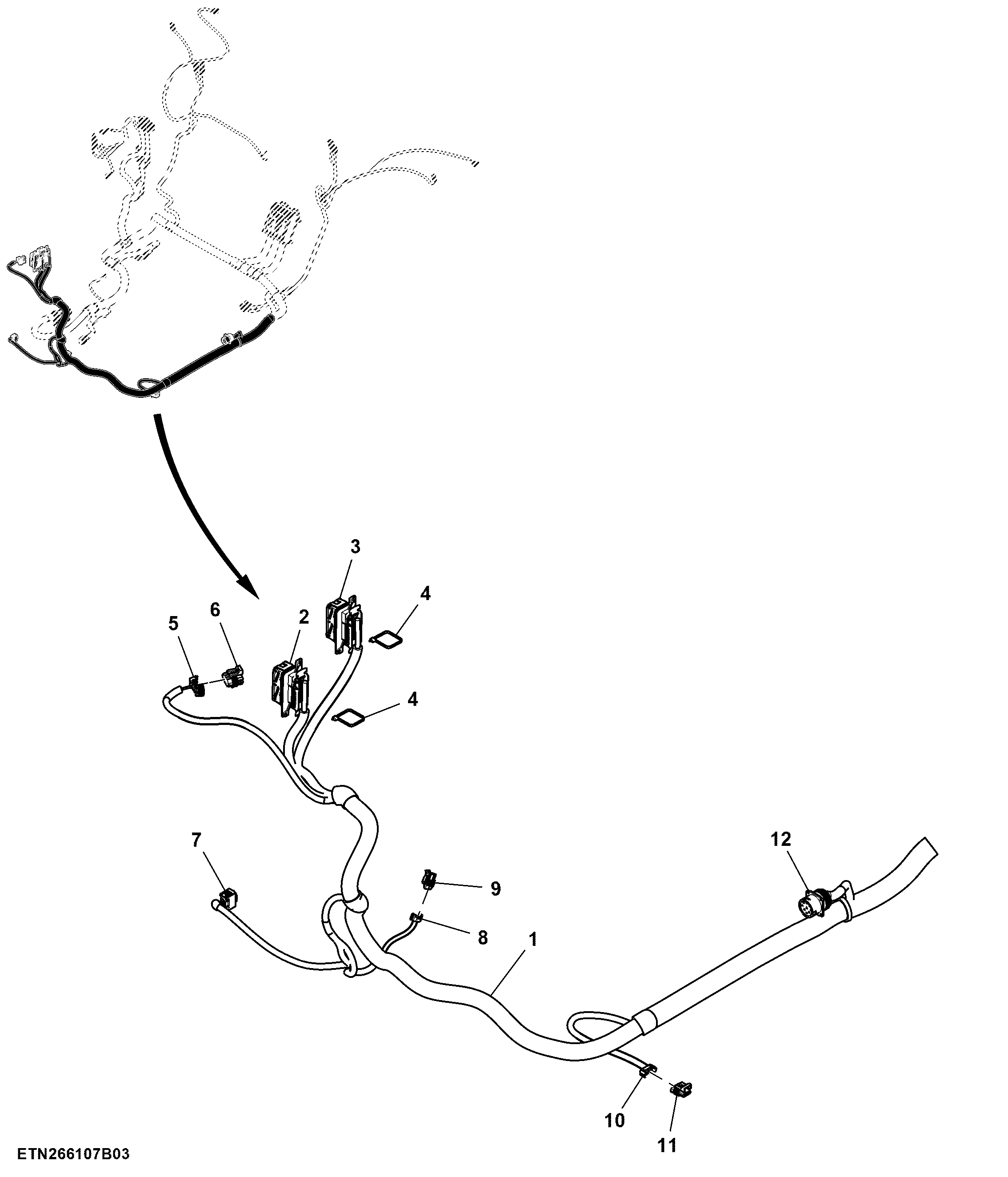

Platform Wiring Harness (3/6)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234635	1	Wiring Harness	-
2	57M8167	1	Elec. Connector Housing	Inline Front Support X504M
2	57M7403	21	Elec. Connector Cavity Plug	Cavity 9, 12, 15, 16, 18, 21 - 25, 28, 30, 33 - 36, 38 - 42
2	57M7401	4	Elec. Connector Cavity Plug	Cavity 3, 5, 7, 8
2	57M7402	3	Elec. Connector Cable Seal	Cavity 31, 32, 37
2	57M8241	10	Elec. Connector Terminal	Cavity 10, 11, 13, 14, 17, 19, 20, 26, 27, 29
2	57M7400	2	Elec. Connector Seal	Cavity 4, 6
2	57M9041	12	Elec. Connector Terminal	Cavity 11, 13, 14, 17, 19, 20, 26, 27, 29, 31, 32, 37
2	57M9042	2	Elec. Connector Terminal	Cavity 4, 6
2	57M8100	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8953	1	Elec. Connector Accessory	-
2	57M8098	1	Elec. Connector Terminal	-
2	57M8105	2	Elec. Connector Terminal	Cavity 1, 2
3	57M9042	1	Elec. Connector Terminal	Cavity 4
3	57M7403	21	Elec. Connector Cavity Plug	Cavity 10, 11, 15 - 18, 21, 22, 25, 26, 29 - 31, 33, 35, 37 - 42
3	57M7401	1	Elec. Connector Cavity Plug	Cavity 8
3	57M8107	1	Elec. Connector Cavity Plug	Cavity 2
3	57M7402	5	Elec. Connector Cable Seal	Cavity 24, 27, 28, 34, 36
3	57M8241	8	Elec. Connector Terminal	Cavity 9, 12 - 14, 19, 20, 23, 32
3	57M7400	1	Elec. Connector Seal	Cavity 4
3	57M7399	4	Elec. Connector Seal	Cavity 3, 5 - 7
3	57M11944	1	Elec. Connector Seal	Cavity 1
3	57M9041	13	Elec. Connector Terminal	Cavity 9, 12 - 14, 19, 20, 23, 24, 27, 28, 32, 34, 36
3	57M9158	4	Elec. Connector Terminal	Cavity 3, 5 - 7
3	57M9573	1	Elec. Connector Terminal	Cavity 1
3	57M8098	1	Elec. Connector Terminal	-
3	57M8096	1	Retainer	-
3	57M8198	1	Elec. Connector Housing	Inline Front Support X505M
4	57M13596	2	Elec. Connector Accessory	-
5	57M7296	1	Elec. Connector Accessory	-
6	57M7261	1	Elec. Connector Housing	Brake Switch X324F
6	57M9541	1	Elec. Connector Terminal	Cavity A
6	57M10770	1	Elec. Connector Terminal	Cavity B
6	57M12799	2	Elec. Connector Terminal	Cavity C, D
6	57M7258	1	Elec. Connector Seal	Cavity A
6	57M9215	1	Elec. Connector Seal	Cavity B
6	57M9214	2	Elec. Connector Seal	Cavity C, D
6	57M7259	4	Elec. Connector Seal	Cavity E - H
7	57M7953	1	Electrical Connector Assy	Foot Throttle X371F
7	57M9180	3	Elec. Connector Terminal	Cavity 1, 2, 4
7	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 4
7	57M7956	3	Elec. Connector Terminal	Cavity 3, 5, 6
8	57M7289	1	Elec.Connect Locking Device	-
9	57M7328	1	Elec. Connector Housing	Differential Lock Switch X122F
9	57M10770	1	Elec. Connector Terminal	Cavity A
9	57M7494	1	Elec. Connector Terminal	Cavity B
9	57M9215	1	Elec. Connector Seal	Cavity A
9	57M9214	1	Elec. Connector Seal	Cavity B
10	57M7290	1	Elec. Connector Accessory	-
11	57M7255	1	Elec. Connector Housing	Sending Unit Fuel Gauge X086F
11	57M7494	2	Elec. Connector Terminal	Cavity A, C
11	57M9214	2	Elec. Connector Seal	Cavity A, C
11	57M7259	1	Elec. Connector Seal	Cavity B
12	57M7919	1	Elec. Connector Housing	Domestic / Can Connector X571F
12	57M8164	4	Elec. Connector Terminal	Cavity A, B, C, D
12	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
