Открытый узел

Steering Controls, W/ Display Module 4640, PowrReverser™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	Steering Wheel
2	L100436	2	Washer	-
3	PFP19123	1	Knob	-
4	B3690R	1	O-Ring	-
5	T17148	1	Lock Washer	-
6	RE258807	1	Tie Band	-
7	PFP17707	1	Cover	Sprocket
8	PF12006	1	Wear Ring	-
9	PFA11841	1	Motor Kit	-
10	M85517	1	Grommet	-
11	GX26021	12	Socket Head Screw	-
12	PFA11385	1	Cover	Motor Cover
13	PFA12039	1	Display Module	SUB FOR PFA10839
14	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
14	57M8022	1	Elec.Connect Locking Device	-
14	57M8021	1	Electrical Connector Assy	Internal Resume C01
15	57M8021	1	Electrical Connector Assy	Internal Resume Switch
15	Z78008	2	Elec. Connector Seal	-
15	57M8022	1	Elec.Connect Locking Device	-
16	57M14708	1	Elec. Connector Housing	Switch 01 C02
17	L110367	2	Washer	-
18	57M14708	1	Elec. Connector Housing	Switch 02 C03
19	L116274	1	Elec. Connector Accessory	-
20	PFA11989	1	Harness Kit	-
21	57M9800	1	Elec. Connector Housing	Motor C01
21	57M9809	12	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
22	57M12321	1	Elec. Connector Terminal	Ground C04
23	57M9809	18	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18
23	57M14637	1	Elec. Connector Housing	Main C02
24	57M8023	1	Elec. Connector Housing	Internal Resume Switch C03
24	57M7621	1	Elec.Connect Locking Device	-
24	57M9717	1	Elec.Connect Locking Device	-
24	R78066	2	Elec. Connector Terminal	Cavity 1, 2
25	PFP17709	1	Roller Chain	Links = 54
26	21M7577	4	Socket Head Screw	M6 X 16
27	57M14636	1	Elec. Connector Housing	Main C01
27	57M11907	7	Elec. Connector Terminal	Cavity 1, 2, 3, 7, 9, 10, 13
27	57M14638	11	Elec. Connector Seal	Cavity 4, 5, 6, 8, 11, 12, 14, 15, 16, 17, 18
28	F058915	1	Elec. Connector Housing	AutoTrac™ Universal 200 C02
28	57M12061	7	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8
29	57M9165	1	Elec. Connector Accessory	-
30	BPF11855	1	Harness Kit	-
31	PF12460	1	Bracket	Anti Rotation
32	L100285	2	Screw	-
33	SU52040	1	Bracket	Display Module
34	PF12168	1	Hub	-
35	PF90687	1	Harness Kit	Display Module
36	57M7262	1	Elec. Connector Housing	-
37	57M8015	1	Electrical Connector Assy	-
38	57M8017	1	Elec. Connector Housing	-
39	14M7166	1	Lock Nut	M8
40	14M7209	1	Nut	M18
41	24M7054	2	Washer	6.400 X 12 X 1.600 mm
42	PF12415	1	Bracket	Anti Rotation
43	RE52952	1	Clamp	-
44	PF12236	1	Clamp	-

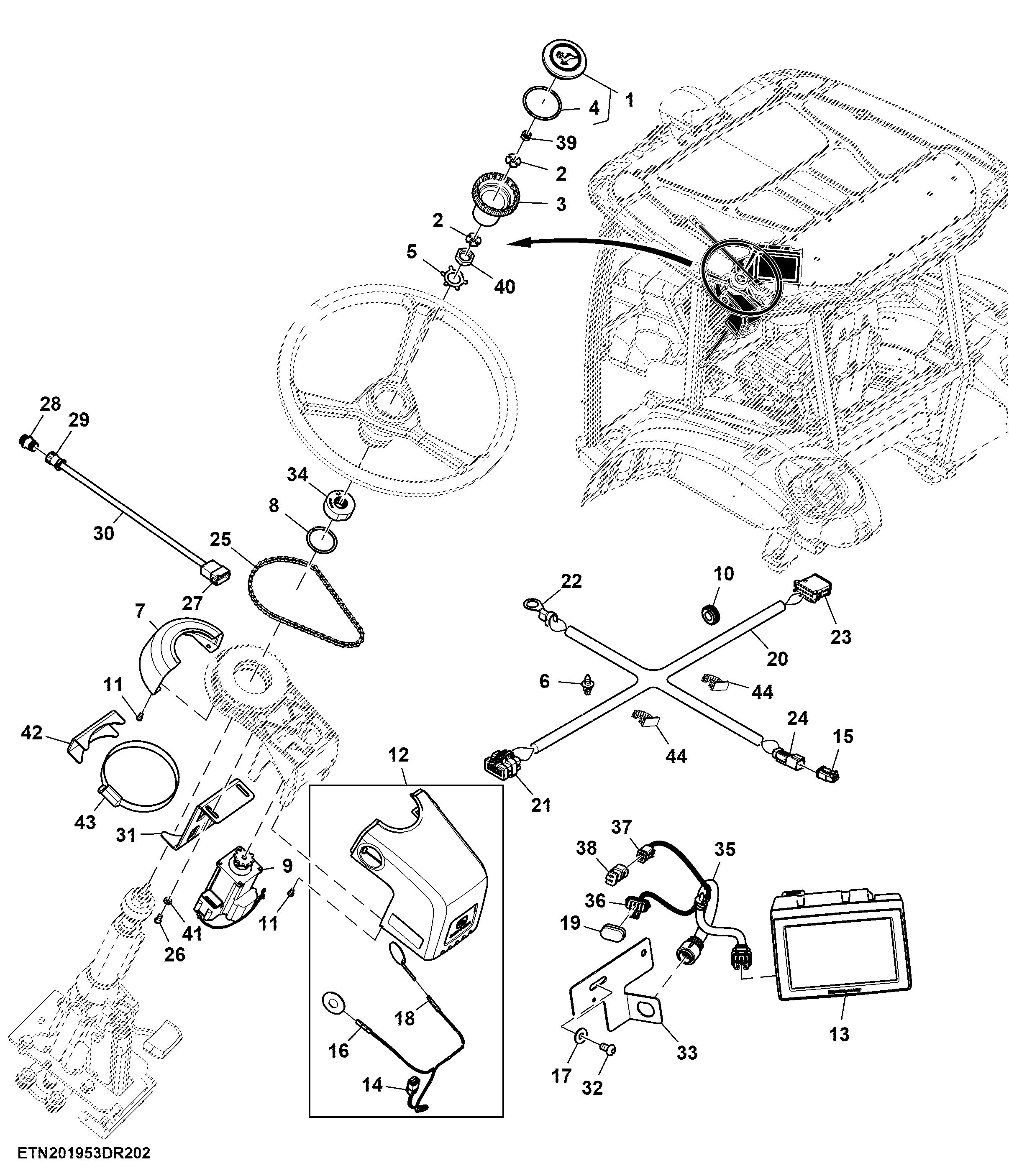

Steering Controls, W/ Display Module 4640, PowrReverser™
