Открытый узел

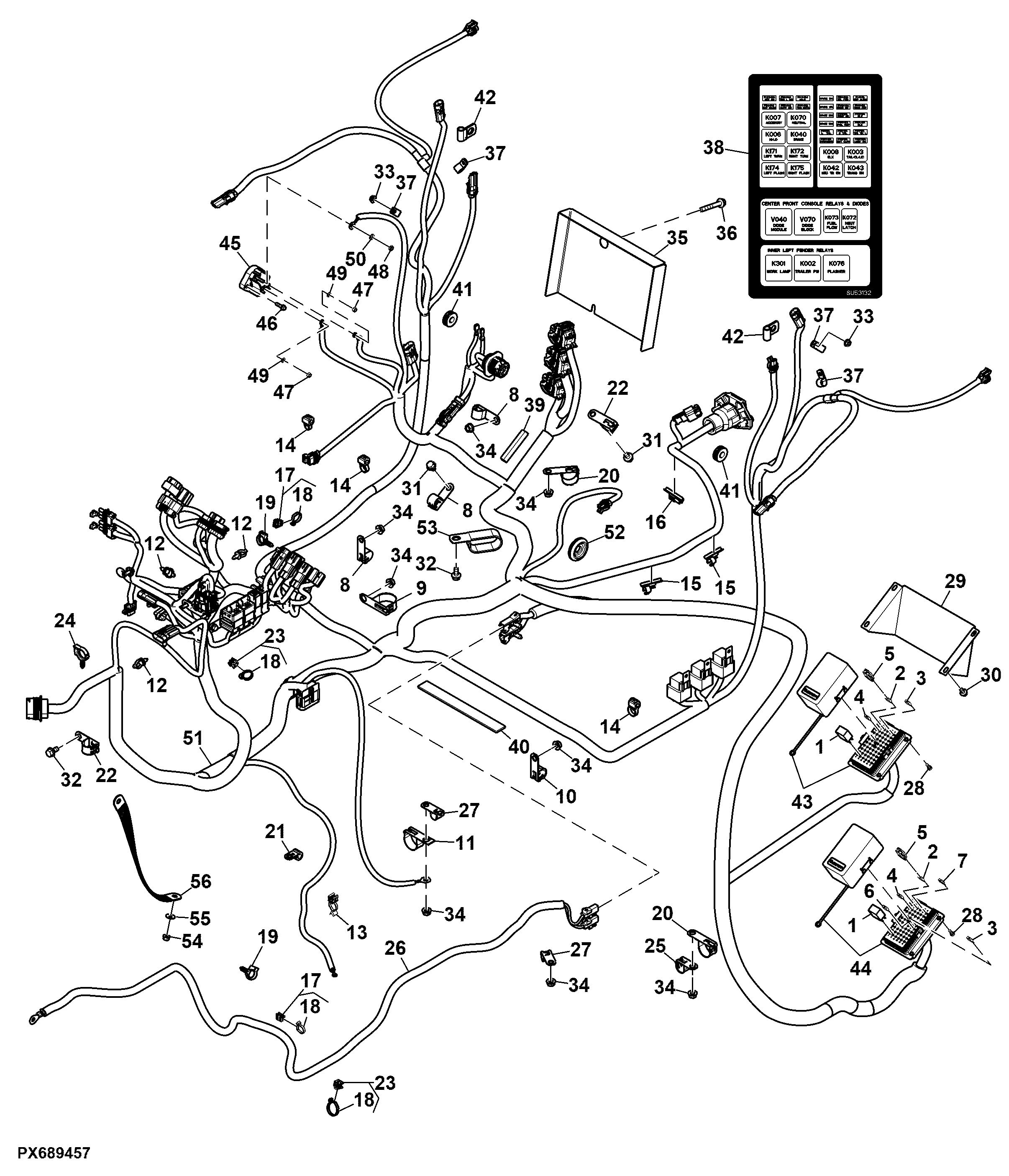

Chassis Wiring Harness, PowrReverser™, OOS, (5/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ15809	12	Relay	20 A
2	57M7689	9	Fuse	10 A
3	57M7690	5	Fuse	15 A
4	57M8163	7	Fuse	30 A
5	RE194287	1	Fuse Holder	-
6	57M7691	2	Fuse	20 A
7	57M7688	1	Fuse	5 A
8	57M8824	4	Elec. Connector Accessory	-
9	57M9429	2	Clamp	-
10	57M12053	2	Elec. Connector Accessory	-
11	57M9881	2	Clamp	-
12	RE258807	14	Tie Band	-
13	AH225364	1	Clip	-
14	CB01483609	4	Tie Band	-
15	57M11952	3	Elec. Connector Accessory	-
16	57M11168	1	Elec. Connector Accessory	-
17	57M10362	4	Clamp	-
18	R44302	6	Tie Band	-
19	57M8902	4	Clip	-
20	57M9412	3	Clamp	-
21	57M12128	1	Clamp	-
22	57M8827	3	Clamp	-
23	AH225365	2	Clip	-
24	57M8908	1	Clip	-
25	57M9425	1	Clamp	-
26	SJ32918	1	Wiring Harness	Cable Harness
27	57M9432	3	Clamp	-
28	19M7640	8	Cap Screw	M5 X 12
29	R275915	1	Cover	Load Center
30	19M7774	5	Screw	M6 X 12
31	19M7864	2	Screw	M8 X 12
32	19M7865	3	Screw	M8 X 16
33	14M7303	2	Flange Nut	M6
34	14M7298	12	Flange Nut	M8
35	SU30053	1	Cover	Electrical Controller
36	19M7979	2	Screw	M8 X 55
37	M85319	5	Clip	-
38	SU53132	1	Label	Load Center
39	-	1	Part 39	CTL 72 mm, MF L58448
40	DT5471S	1	Weatherstrip	-
41	R62356	2	Grommet	-
42	AH76883	2	Clip	-
43	RE269840	1	Fuse Box	Load Center I LC1
43	57M8585	10	Elec. Connector Terminal	Cavity A1, A2, A4, B1, B2, C2, C3, D2, E2, F2
43	57M8584	36	Elec. Connector Terminal	Cavity A3, A5, A6, A7, A8, A9, A10, B7, C1, C4, C5, C6, C7, C8, C9, C10, D1, D3, D4, D5, D6, D7, D8, D9, D10, E1, E7, F1, F3, F4, F5, F6, F7, F8, F9, F10
43	57M7399	10	Elec. Connector Seal	Cavity A1, A2, A4, B1, B2, C2, C3, D2, E2, F2
43	57M8515	36	Elec. Connector Seal	Cavity A3, A5, A6, A7, A8, A9, A10, B7, C1, C4, C5, C6, C7, C8, C9, C10, D1, D3, D4, D5, D6, D7, D8, D9, D10, E1, E7, F1, F3, F4, F5, F6, F7, F8, F9, F10
43	57M7401	14	Elec. Connector Cavity Plug	Cavity B3, B4, B5, B6, B8, B9, B10, E3, E4, E5, E6, E8, E9, E10
44	57M7401	7	Elec. Connector Cavity Plug	Cavity B7, B8, B10, E7, E8, E9, E10
44	57M8515	44	Elec. Connector Seal	Cavity A1, A2, A3, A4, A5, A6, A7, A8, A9, A10, B1, B2, B3, B4, B5, B6, B9, C3, C5, C6, C7, C8, C10, D4, D5, D6, D7, D8, D9, D10, E1, E2, E3, E4, E5, F1, F2, F3, F4, F5, F7, F8, F9, F10
44	57M8585	8	Elec. Connector Terminal	Cavity C1, C2, C4, D1, D2, D3, E6, F6,
44	57M7399	8	Elec. Connector Seal	Cavity C1, C2, C4, D1, D2, D3, E6, F6,
44	57M8584	44	Elec. Connector Terminal	Cavity A1, A2, A3, A4, A5, A6, A7, A8, A9, A10, B1, B2, B3, B4, B5, B6, B9, C3, C5, C6, C7, C8, C10, D4, D5, D6, D7, D8, D9, D10, E1, E2, E3, E4, E5, F1, F2, F3, F4, F5, F7, F8, F9, F10
44	RE269840	1	Fuse Box	Load Center II LC2
45	RE186986	1	Junction Block	-
46	37M7061	2	Screw	M5 X 20
47	14M7297	2	Nut	M5
48	14M7194	1	Nut	M6
49	24M7087	2	Washer	5.500 X 10 X 1 mm
50	24M7088	1	Washer	6.600 X 12 X 1.600 mm
51	SJ32915	1	Wiring Harness	OOS
52	Z53033	1	Grommet	-
53	L159016	1	Clamp	-
54	14M7608	1	Flange Nut	M6
55	24M7139	1	Washer	6.400 X 18 X 1.600 mm
56	MIA10189	1	Ground Cable	-
57	L159016	1	Clamp	-

Chassis Wiring Harness, PowrReverser™, OOS, (5/5)

Нет текстового описания
