Открытый узел

20 Engine 4045TBM10-DZ108783

20 Engine 4045TBM10-DZ108783

20 Engine 4045TBM10-DZ108783

20 Engine 4045TBM10-DZ108783

20 Engine 4045TBM10-DZ108783

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

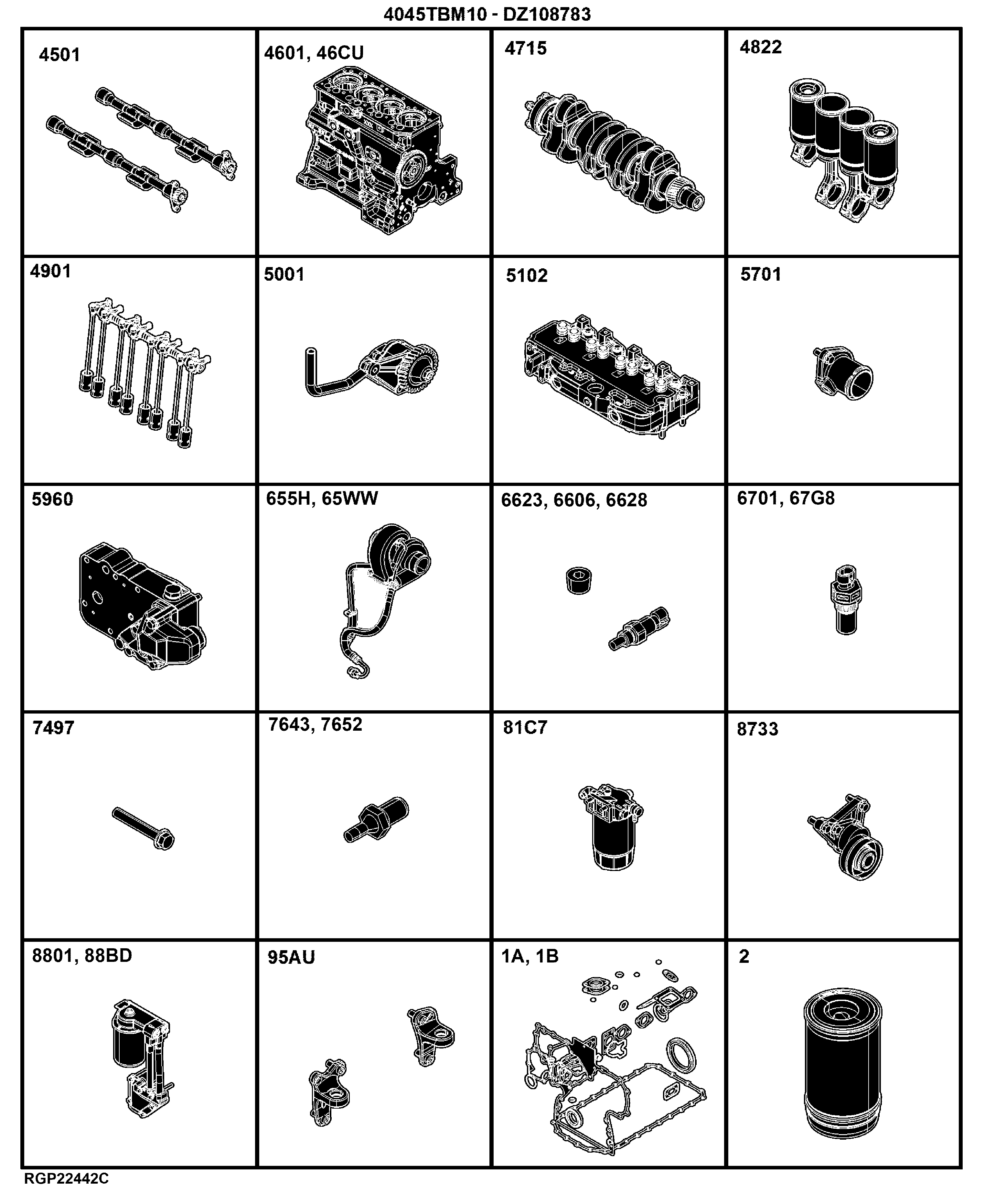

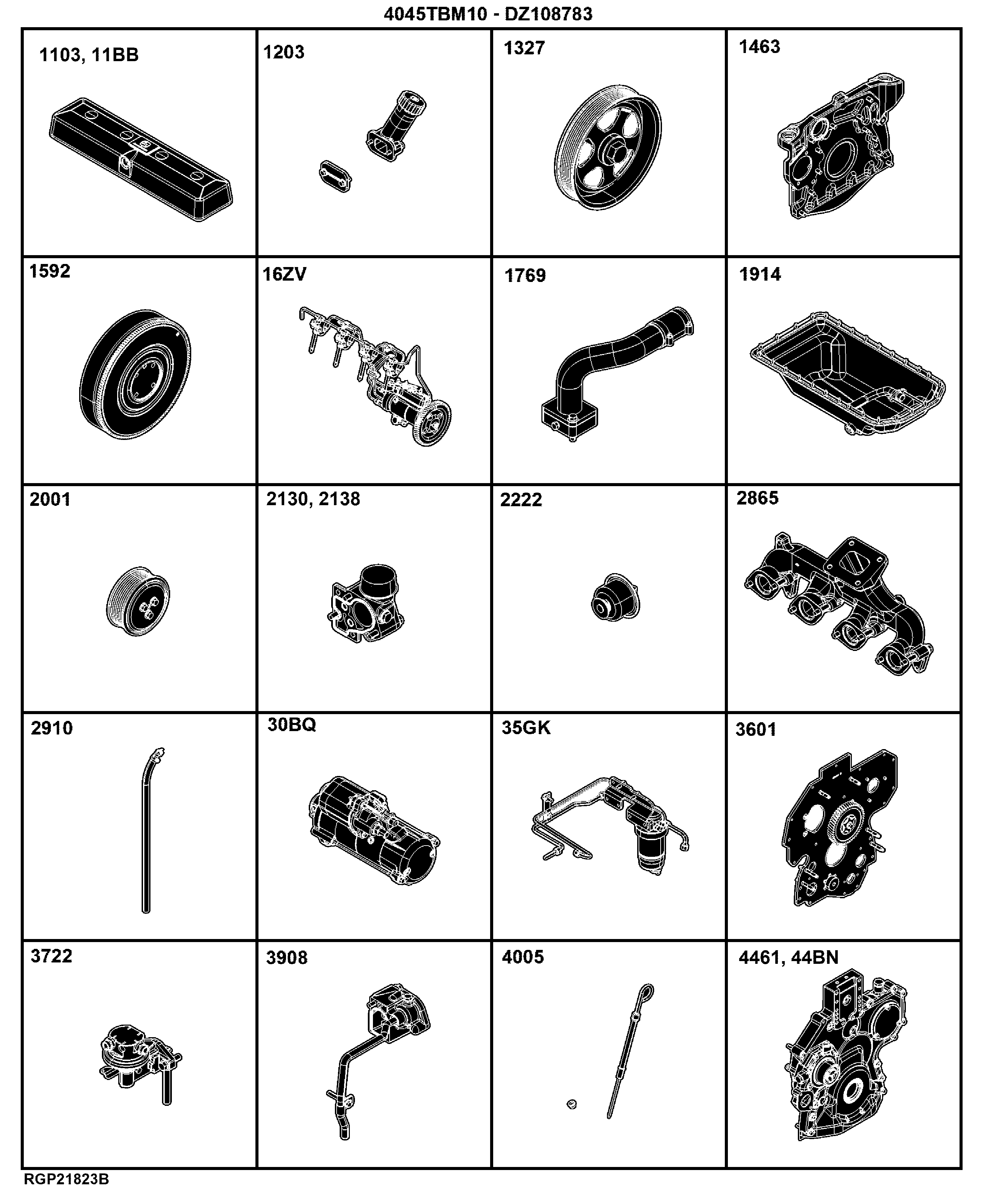

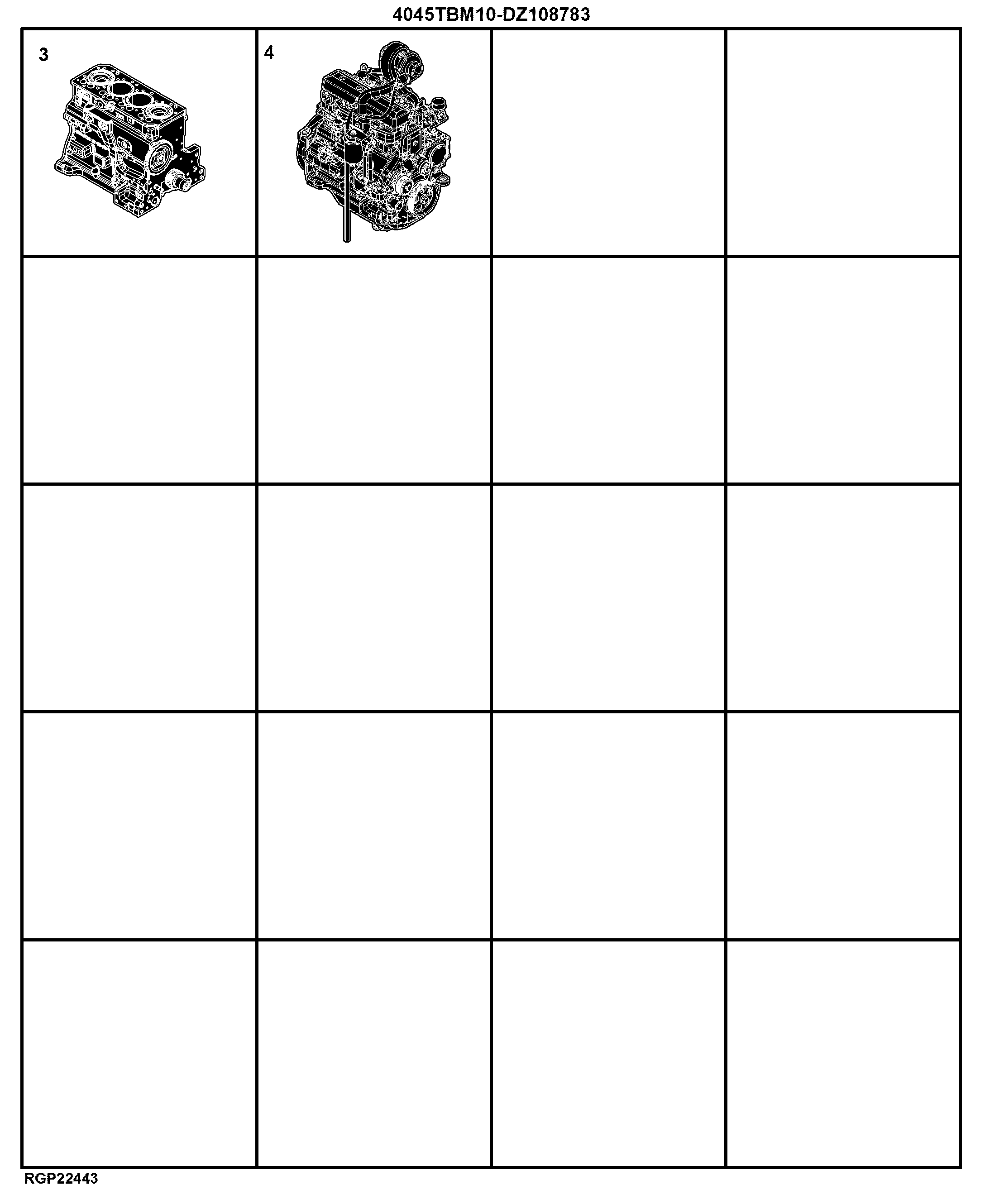

20 Engine 4045TBM10-DZ108783

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	7643 Oil Pressure Switch ( - 723394)	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5102 Cylinder Head with Valves	-
-	-	1	5701 Water Pump Inlet	-
-	-	1	5960 Engine Oil Cooler	-
-	-	1	655H Turbocharger (723395 - )	-
-	-	1	65WW Turbocharger ( - 723394)	-
-	-	1	6606 Water Temperature Sensor (714605 - ), ( - 723394)	-
-	-	1	6623 Temperature Switch ( - 714604)	-
-	-	1	6628 Temperature Switch (723395 - )	-
-	-	1	6701 Engine Sensors ( - 723394)	-
-	-	1	67G8 Engine Sensors (723395 - )	-
-	-	1	7497 Air Conditioner Mounting Hardware	-
-	-	1	4822 Connecting Rods and Pistons	-
-	-	1	7652 Oil Pressure Switch (723395 - )	-
-	-	1	81C7 Primary Fuel Filter	-
-	-	1	8733 Belt Tensioner	-
-	-	1	8801 Engine Oil Filter ( - 723394)	-
-	-	1	88BD Engine Oil Filter (723395 - )	-
-	-	1	95AU Engine Front Brackets	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	Fuel Injection Pump, Solenoid	-
-	-	1	2910 Ventilating System	-
-	-	1	11BB Valve Cover (715301 - )	-
-	-	1	1203 Oil Filler Neck	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1463 Flywheel Housing	-
-	-	1	1592 Flywheel	-
-	-	1	16ZV Fuel Injection System	-
-	-	1	1769 Air Intake	-
-	-	1	1914 Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2130 Thermostat Cover ( - 723394)	-
-	-	1	2138 Thermostat Cover (723395 - )	-
-	-	1	2222 Engine Thermostat	-
-	-	1	2865 Exhaust Manifold	-
-	-	1	1103 Valve Cover ( - 715300)	-
-	-	1	30BQ Starter Motor	-
-	-	1	35GK Final Fuel Filter	-
-	-	1	3601 Front Plate	-
-	-	1	3722 Fuel Transfer Pump	-
-	-	1	3908 Thermostat Housing	-
-	-	1	4005 Engine Oil Dipstick	-
-	-	1	4461 Timing Gear Cover and Water Pump ( - 723394)	-
-	-	1	44BN Timing Gear Cover and Water Pump (723395 - )	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4601 Cylinder Block ( - 723394)	-
-	-	1	46CU Cylinder Block (723395 - )	-
-	-	1	4715 Crankshaft and Bearings	-
