RANGE SHIFTING (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L77964	1	Insert	-
2	19M7560	1	Cap Screw	M6 X 16
3	24M7139	1	Washer	6.400 X 18 X 1.600 mm
4	L77805	1	Knob	-
5	AL110859	1	Shifter Rod	-
6	19M7865	4	Screw	M8 X 16
7	24M7024	1	Washer	9 X 28 X 3 mm
8	AL110861	1	Support	-
9	L77963	1	Washer	TK = 2.0MM (5/64")
10	L101929	1	Bushing	(WITH 16-SPEED TRANSMISSION = 30KM/H)
11	R198159	1	Bushing	SUB FOR L77978
12	AL117583	1	Quadrant	(SUB FOR AL110850)
13	14M7166	2	Lock Nut	M8
14	L79335	2	Washer	-
15	14M7416	2	Flange Nut	M8
16	19M8403	1	Cap Screw	M8 X 75, (10.9)
17	AL117582	1	Quadrant	INCL KEY 11 (SUB FOR AL110849)
18	AL110860	1	Support	INCL KEY 11
19	L113994	1	Pin Fastener	(SUB FOR L110566)
20	L77963	1	Washer	TK = 2.0MM (5/64")
20	L111987	1	Washer	TK = 1.5MM (1/16")
20	L111988	1	Washer	TK = 1.0MM (3/64")
21	L116303	1	Bushing	(SUB FOR L110567, L115163)
22	AL117581	1	Quadrant	INCL KEY 11 (SUB FOR AL110848)
23	L102451	1	Extension Spring	-
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm
25	19M7378	1	Cap Screw	M8 X 45
26	AL112912	1	Bracket	-
27	AL117584	1	Quadrant	(WITH 20-SPEED TRANSMISSION = 30KM/H) (WITH 24-SPEED TRANSMISSION = 40KM/H) INCL KEY 11 (SUB FOR AL110851)
28	L112469	4	Shim	-
29	AL77033	1	Switch	-
30	24M7117	2	Washer	4.300 X 9 X 0.800 mm
31	14M7139	2	Nut	M4
32	AL117590	1	Quadrant	(FOR JAPAN, ITALY AND SPAIN ONLY) INCL KEY 11 (SUB FOR AL114967)
33	AL117589	1	Quadrant	(WITH 20-SPEED TRANSMISSION = 30KM/H) (C) (D) INCL KEY 11 (SUB FOR AL114967)
34	21M7369	2	Screw	(FOR JAPAN, ITALY AND SPAIN ONLY) M4 X 25
35	AL114095	1	Angle	(FOR JAPAN, ITALY AND SPAIN ONLY)
36	AL78908	1	Switch	(FOR JAPAN, ITALY AND SPAIN ONLY)
37	L101999	1	Strap	(FOR JAPAN, ITALY AND SPAIN ONLY)
38	L113225	1	Washer	TK = 6.0MM (15/64")
39	24M7298	1	Washer	8.400 X 25 X 2 mm

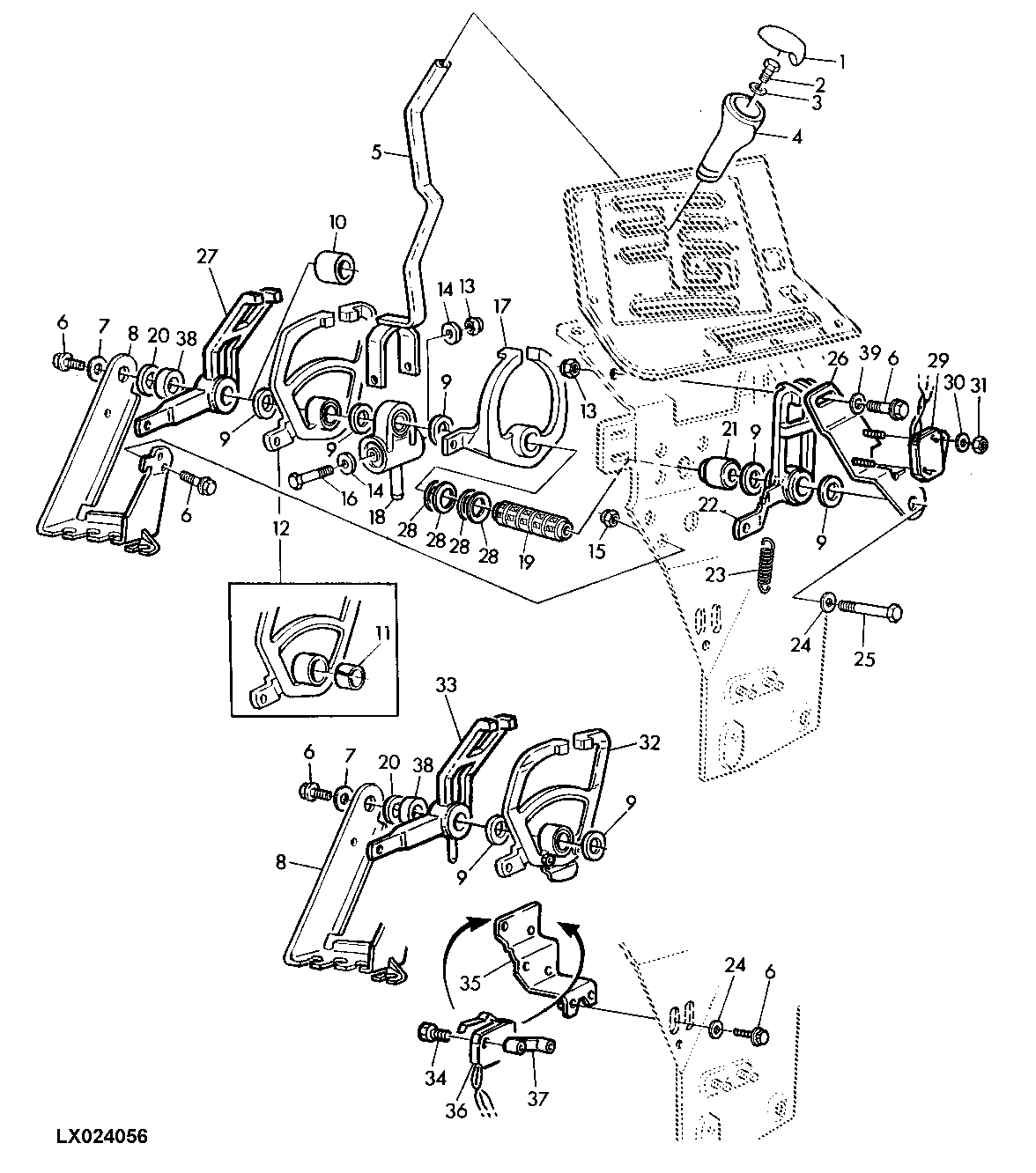

RANGE SHIFTING (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)
