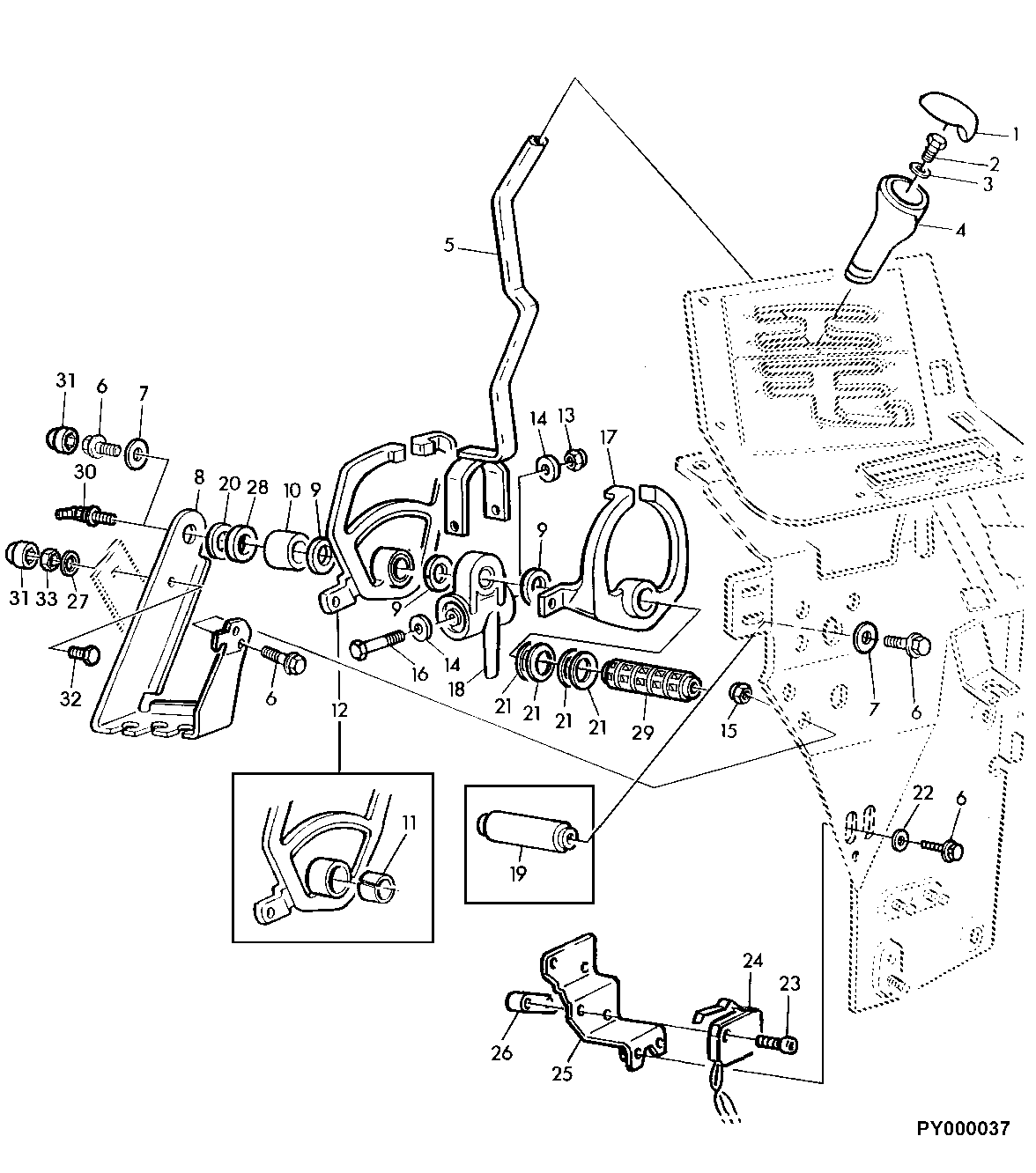

RANGE SHIFT COMPONENTS (POWER REVERSER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L77964	1	Insert	-
2	19M7560	1	Cap Screw	M6 X 16
3	24M7139	1	Washer	6.400 X 18 X 1.600 mm
4	L77805	1	Knob	-
5	AL110859	1	Shifter Rod	-
6	19M7865	4	Screw	M8 X 16
7	24M7024	2	Washer	9 X 28 X 3 mm
8	L112053	1	Support	-
9	L77963	3	Washer	TK = 2.0MM (5/64")
10	L101929	1	Bushing	-
11	R198159	1	Bushing	SUB FOR L77978
12	AL117583	1	Quadrant	(SUB FOR AL110850)
13	14M7166	1	Lock Nut	M8
14	L79335	2	Washer	-
15	14M7416	2	Flange Nut	M8
16	19M8403	1	Cap Screw	M8 X 75
17	AL117582	1	Quadrant	INCL KEY 11 (SUB FOR AL110849)
18	AL110860	1	Support	INCL KEY 11
19	L110566	1	Pin	(ORD L113994)
20	L111988	1	Washer	TK = 1.0MM (3/64")
20	L111987	1	Washer	TK = 1.5MM (1/16")
20	L77963	1	Washer	TK = 2.0MM (5/64")
21	L112469	4	Shim	-
22	24M7055	2	Washer	(NOT WITH BASIC CONTROL UNIT (BCU)) 8.400 X 16 X 1.600 mm
23	21M7369	2	Screw	(NOT WITH BASIC CONTROL UNIT (BCU)) M4 X 25
24	AL78908	1	Switch	(NOT WITH BASIC CONTROL UNIT (BCU))
25	AL114095	1	Angle	(NOT WITH BASIC CONTROL UNIT (BCU))
26	L101999	1	Strap	(NOT WITH BASIC CONTROL UNIT (BCU))
27	24M7055	1	Washer	8.400 X 16 X 1.600 mm
28	L113225	1	Washer	TK = 6.0MM (15/64")
29	L113994	1	Pin Fastener	(SUB FOR L110566)
30	AL117787	1	Screw	(USE IN CONJUNCTION WITH GEAR TRANSMISSION THAT HAS GREASE FITTING AND PIN L113994)
31	L32394	2	Cap	-
32	19M7139	1	Cap Screw	M8 X 20
33	14M7273	1	Nut	M8

RANGE SHIFT COMPONENTS (POWER REVERSER)
