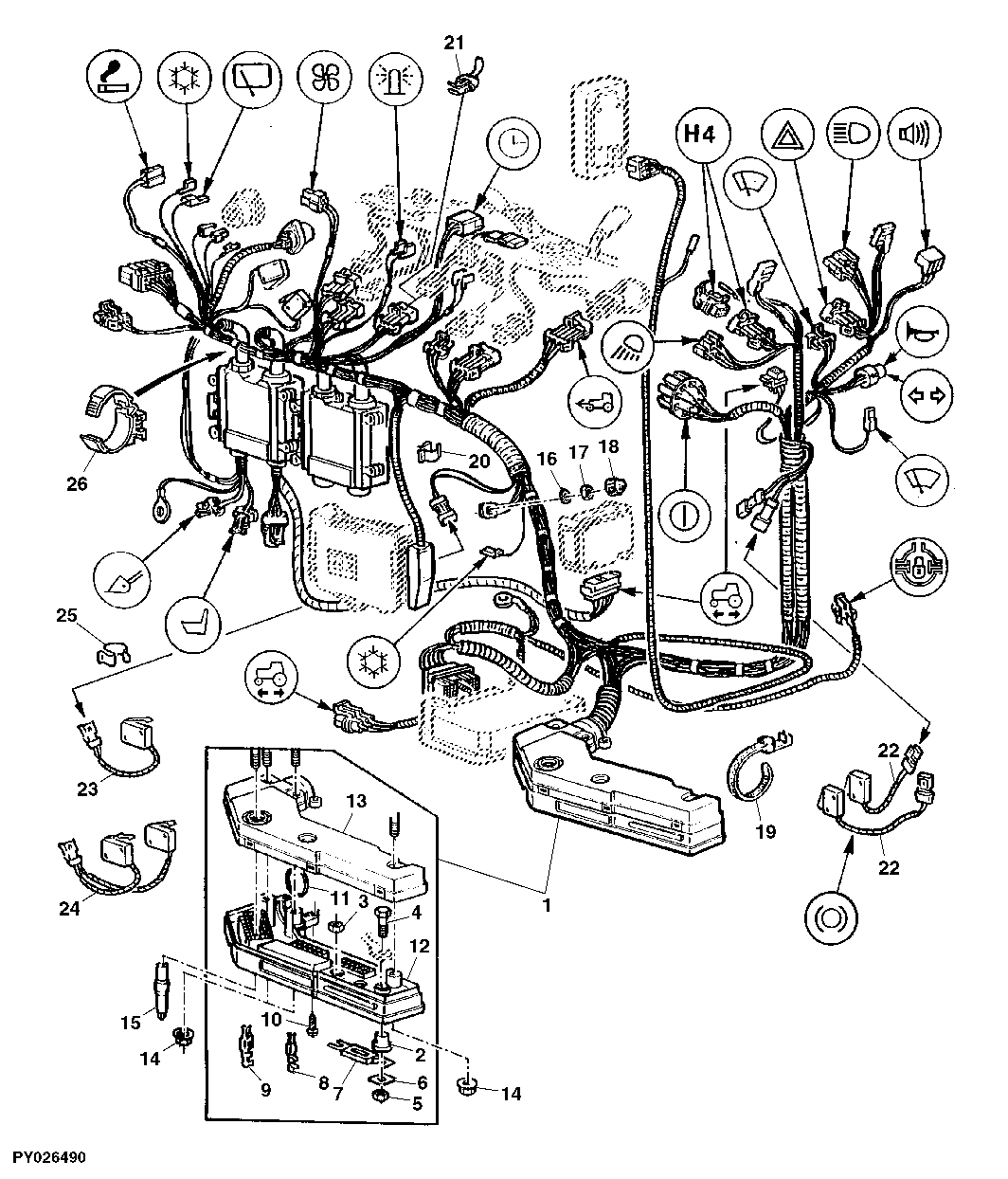

CONTROL WIRING HARNESS WITH OR WITHOUT PERFORMANCE MONITOR / HMS (CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL113594	1	Wiring Harness	(WITHOUT ELECTR. REVERSER CONTROL AT STEERING COLUMN) INCL KEY 21
1	AL112511	1	Wiring Harness	(WITH ELECTR. REVERSER CONTROL AT STEERING COLUMN) INCL KEY 21 (ORD AL115015, (2) AL113788)
1	AL115015	1	Wiring Harness	(WITH ELECTR. REVERSER CONTROL AT STEERING COLUMN) INCL KEY 21
1	AL82335	1	Wiring Harness	(WITHOUT ELECTR. REVERSER CONTROL AT STEERING COLUMN) INCL KEY 21 (ORD AL113594, (2) AL113788)
2	L78890	1	Bushing	-
3	L78892	1	Nut	-
4	19M7167	1	Cap Screw	M10 X 25
5	14M7152	1	Nut	M10
6	L102263	1	Shim	-
7	57M7392	1	Fuse	160A
8	57M7229	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) -1.0MM²/2.8MM
9	57M7204	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) -1.0MM²/6.3MM
9	57M7205	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) -2.5MM²/6.3MM
9	57M7206	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) -4.0MM²/6.3MM
10	L102363	2	Screw	-
11	L53873	1	O-Ring	-
12	L102310	1	Case	-
13	L102312	1	Cover	-
14	14M7303	3	Flange Nut	M6
15	L79362	1	Screw	-
16	24M7055	1	Washer	8.400 X 16 X 1.600 mm
17	14M7273	1	Nut	M8
18	L32394	1	Cap	-
19	L40484	1	Tie Band	-
20	L102392	1	Clamp	-
21	AL110102	1	Wiring Harness	(WITHOUT HEADLAND MANAGEMENT SYSTEM (HMS))
22	AL113788	1	Switch	-
23	AL113657	1	Wiring Harness	(WITH ELECTR. REVERSER CONTROL AT STEERING COLUMN)
24	AL114989	1	Wiring Harness	(WITH ELECTR. REVERSER CONTROL AT STEERING COLUMN) (FOR JAPAN, ITALY AND SPAIN ONLY)
25	L110765	1	Clamp	-
26	L113094	2	Clamp	-

CONTROL WIRING HARNESS WITH OR WITHOUT PERFORMANCE MONITOR / HMS (CAB)
