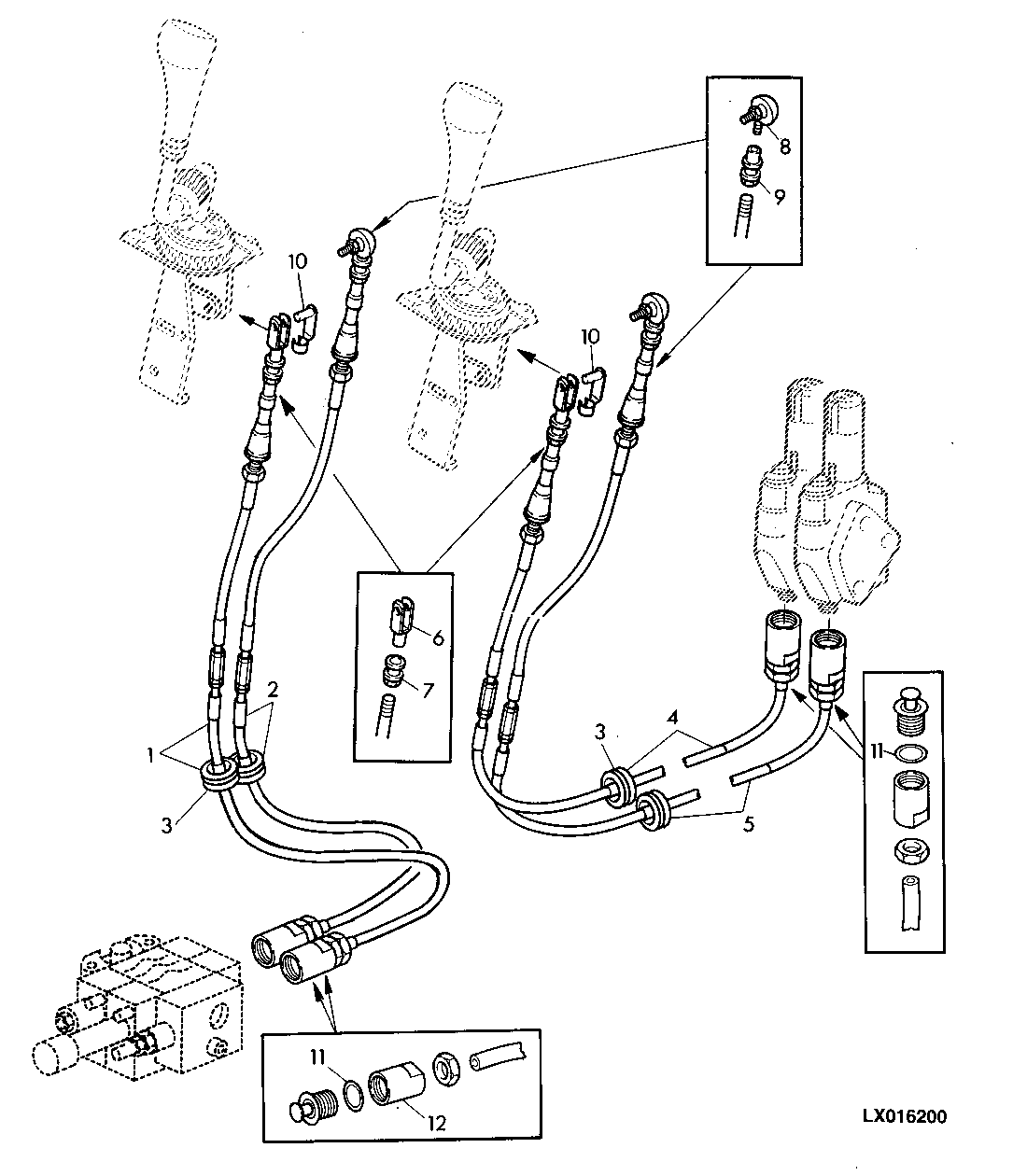

BOWDEN CABLES FOR SWING-AWAY MULTIFUNCTION LEVER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL119463	1	Push Pull Cable	(WITH INDEPENDENT SELECTIVE CONTROL VALVE R.H. / CENTER) (WITH POWRQUAD TRANSMISSION) (SUB FOR AL110512)
1	AL169368	1	Push Pull Cable	(WITH INDEPENDENT SELECTIVE CONTROL VALVE R.H. / CENTER) (WITH SYNCROPLUS TRANSMISSION) (SUB FOR AL110514, AL119462)
1	AL169368	1	Push Pull Cable	(WITH INDEPENDENT SELECTIVE CONTROL VALVE R.H. / CENTER) (WITH POWRQUAD TRANSMISSION) (SUB FOR AL110514, AL119462)
1	AL169368	1	Push Pull Cable	(WITH INDEPENDENT SELECTIVE CONTROL VALVE R.H. / CENTER) (WITH POWRQUAD TRANSMISSION) (WITH ELECTR. REVERSER CONTROL) (SUB FOR AL110514, AL119462)
1	AL119463	1	Push Pull Cable	(WITH INDEPENDENT SELECTIVE CONTROL VALVE R.H. / CENTER) (WITH SYNCROPLUS TRANSMISSION) (SUB FOR AL110512)
2	AL169367	1	Push Pull Cable	(WITH INDEPENDENT SELECTIVE CONTROL VALVE R.H. / CENTER) (SUB FOR AL110513, AL119461)
3	L100781	2	Grommet	(SUB FOR L78007)
4	AL164815	1	Push Pull Cable	(WITH POWRQUAD TRANSMISSION) (WITH ELECTR. REVERSER CONTROL) (ORD W/ AL79051) (SUB FOR AL110872, AL119466)
4	AL164815	1	Push Pull Cable	(WITH POWER REVERSER) (ORD W/ AL79051) (SUB FOR AL110872, AL119466)
4	AL164815	1	Push Pull Cable	(WITH POWRQUAD TRANSMISSION) (ORD W/ AL79051) (SUB FOR AL110872, AL119466)
4	AL164815	1	Push Pull Cable	(WITH SYNCROPLUS TRANSMISSION) (ORD W/ AL79051) (SUB FOR AL110872, AL119466)
4	AL119464	1	Push Pull Cable	(WITH POWRQUAD TRANSMISSION) (ORD W/ AL79051) (SUB FOR AL81221, AL110745)
4	AL119464	1	Push Pull Cable	(WITH SYNCROPLUS TRANSMISSION) (ORD W/ AL79051) (SUB FOR AL81221, AL110745)
5	AL164814	1	Push Pull Cable	(SUB FOR AL81222, AL110746, AL119465)
6	L80052	1	Yoke	-
7	L116324	1	Bushing	(SUB FOR L101038)
8	AL81421	1	Link End	-
9	L116325	1	Bushing	(SUB FOR L102165)
10	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
11	L41536	1	O-Ring	-
12	L110343	1	Tube Nut	ORDER L158944
12	L158944	1	Tube Nut	-

BOWDEN CABLES FOR SWING-AWAY MULTIFUNCTION LEVER
