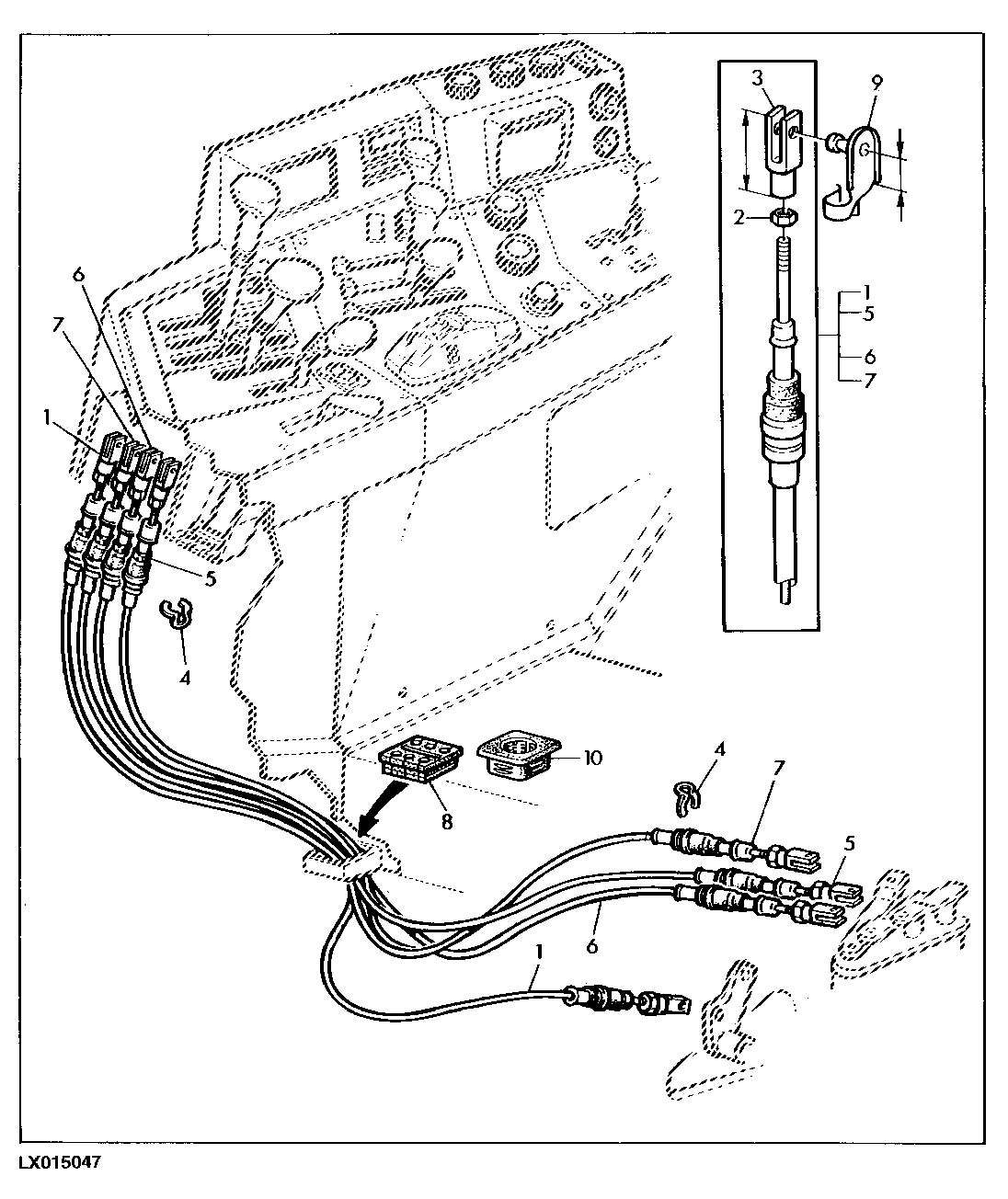

BOWDEN CABLES FOR RANGE SHIFT AND PARKING LOCK (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL78201	1	Push Pull Cable	(PARKING LOCK) (ORD AL113640, AL79051)
1	AL113640	1	Push Pull Cable	(PARKING LOCK) (SUB FOR AL80658, AL82066)
2	14M7272	2	Nut	M6
3	L80051	1	Yoke	LGTH = 32MM (1-17/64")
3	L80052	1	Yoke	LGTH = 44MM (1-3/4")
3	L80053	1	Yoke	LGTH = 56MM (2-13/64")
4	L219493	1	Snap Ring	SUB FOR L79076
5	AL75711	1	Push Pull Cable	(SHIFT MECHANISM, RANGES A-B) (ORD AL82648, L80051, AL79050)
5	AL82648	1	Push Pull Cable	(SHIFT MECHANISM, RANGES A-B)
6	AL169432	1	Push Pull Cable	(SHIFT MECHANISM, RANGES C-D) (SUB FOR AL75712)
7	AL78200	1	Push Pull Cable	(SHIFT MECHANISM, RANGES E-F)
8	L79125	1	Grommet	-
9	AL79050	1	Pin Fastener	LGTH = 12MM (15/32"), ORDER 45M7101
9	45M7101	1	Spring Locking Pin	-
9	AL79051	1	Pin Fastener	LGTH = 24MM (15/16)
10	L101255	1	Plug	(WITH 4-POST ROLL GUARD)

BOWDEN CABLES FOR RANGE SHIFT AND PARKING LOCK (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)
