AIR COMPRESSOR INSTALLATION, TRAILER AIR BRAKE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL78940	1	Compressor	-
2	L115093	2	Spring Pin	-
3	L156705	1	Union Fitting	(SUB FOR L64154)
4	19M7301	4	Cap Screw	M8 X 40
5	24M7055	4	Washer	8.400 X 16 X 1.600 mm
6	L79922	1	Hose	-
6	L112538	1	Hose	(ORD L114771)
6	L114771	1	Hose	-
7	AL64588	2	Clamp	-
8	L157314	1	Fitting	(WITH TURBOCHARGER) (SUB FOR AL78694)
9	24M7318	1	Washer	(WITH TURBOCHARGER) 19 X 34 X 3 mm, (SUB FOR L79608)
10	14M7209	1	Nut	(WITH TURBOCHARGER) M18
11	L59904	1	O-Ring	-
12	L79514	1	Adapter Fitting	-
13	L79515	2	Seal	-
14	AL78423	1	Hose	-
15	38M5991	1	Hollow Screw	-
16	L63817	1	O-Ring	-
17	L63816	1	Washer	-
18	L57373	1	Union Fitting	-
19	L79513	1	Fitting	-
20	AL76993	1	Oil Line	-
21	L64171	1	Seal	-
22	L53831	1	O-Ring	-
23	L79903	1	Fitting	-
24	AL116422	1	Oil Line	(SUB FOR AL76996)
25	14M7028	1	Nut	M5
26	AL80390	1	Clamp	(ORD T14264, 24H1309)
27	L101284	1	Angle	(ORD T14264, 24H1309)
28	24M7028	1	Washer	10.500 X 20 X 2 mm
29	14H812	1	NUT	3/8"
30	19M7372	1	Cap Screw	M5 X 16
31	24M7027	1	Washer	5.300 X 10 X 1 mm
32	L79922	1	Hose	(WITH TURBOCHARGER)
32	L101288	1	Hose	(WITH TURBOCHARGER)
32	L112538	1	Hose	(WITH TURBOCHARGER) (ORD L114771)
32	L114771	1	Hose	(WITH TURBOCHARGER)
33	19H1733	1	CAP SCREW	3/8" X 2-1/2"
34	24H1309	1	Washer	13/32" X 1-1/16" X 0.120"
35	T14264	1	Clamp	-

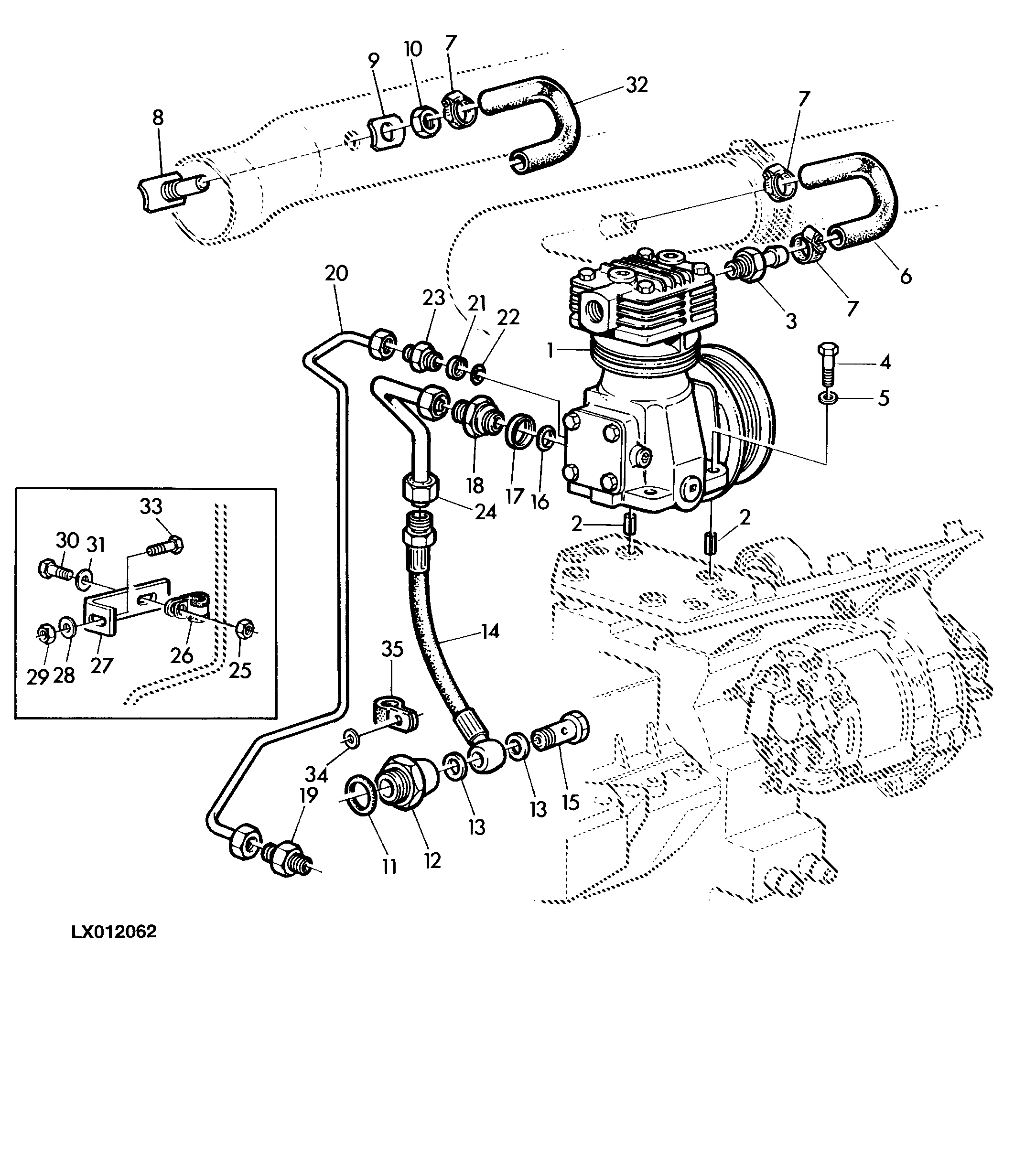

AIR COMPRESSOR INSTALLATION, TRAILER AIR BRAKE
