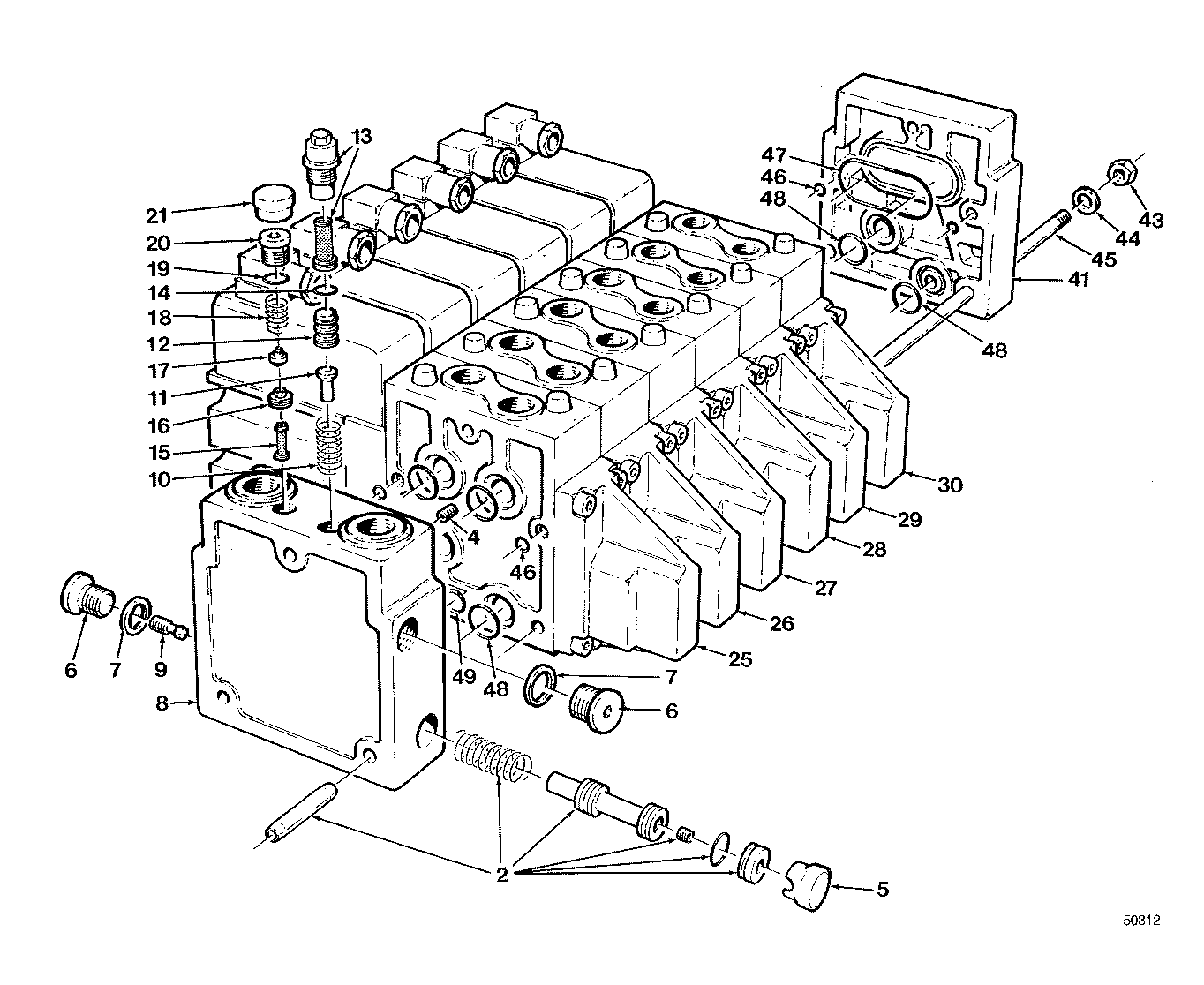

VALVE ASSEMBLY LOADER F60 ( 967504 - ) 2442-010/14 [2442-010/14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-------	1	O-RING	-
4	843026100	1	ORIFICE -	-
5	842915600	1	PLUG - PLASTIC	-
6	843026200	2	PLUG 1/2-20UNF -	-
7	-------	2	O-RING	-
8	-------	1	O-RING	-
9	843026300	1	PLUG M6X10 -	-
10	842916000	1	SPRING -	-
11	842916100	1	CONE -	-
12	842916200	1	SPOOL -	-
13	842916300	1	PLUG - FILTER	-
14	-------	1	O-RING	-
15	842916400	1	FILTER -	-
16	842916500	1	SEAT -	-
17	842916600	1	PAD - THRUST	-
18	842916700	1	SPRING -	-
19	-------	1	O-RING	-
20	842916800	1	BOLT - ADJUSTABLE	-
21	-------	1	O-RING	-
25	842917800	1	VALVE SECTION - MID - SLEW	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION TELESCOPIC ( CB7776 - CE7000) 2443-010/12
26	842917900	1	VALVE SECTION - LIFT,JIB,ROT,GRAP,TELE	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION TELESCOPIC ( CB7776 - CE7000) 2443-010/12
27	842917900	1	VALVE SECTION - LIFT,JIB,ROT,GRAP,TELE	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION TELESCOPIC ( CB7776 - CE7000) 2443-010/12
28	842917900	1	VALVE SECTION - LIFT,JIB,ROT,GRAP,TELE	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION TELESCOPIC ( CB7776 - CE7000) 2443-010/12
29	842917900	1	VALVE SECTION - LIFT,JIB,ROT,GRAP,TELE	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION TELESCOPIC ( CB7776 - CE7000) 2443-010/12
30	842917900	1	VALVE SECTION - LIFT,JIB,ROT,GRAP,TELE	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\VALVE SECTION - SEE VALVE ASSEMBLY\VALVE SECTION TELESCOPIC ( CB7776 - CE7000) 2443-010/12
41	842916900	1	END PLATE -	-
43	843026400	6	NUT M8 -	-
44	842917200	6	WASHER M8 -	-
45	842917300	3	STUD M8X385 -	-
46	-------	14	O-RING	-
47	-------	1	O-RING	-
48	-------	28	O-RING	-
49	-------	6	O-RING	-
-	842917000	1	PACKAGE - MAJOR SEAL & HARDWARE	-
-	F017190	1	Seal Kit	-
-	F017192	1	Seal Kit	-
-	843026600	1	RELIEF VALVE -	-
-	843026500	1	PILOT SUPPLY -	-
-	842915500	1	INLET -	-
-	811978500	1	VALVE - CONTROL	-
