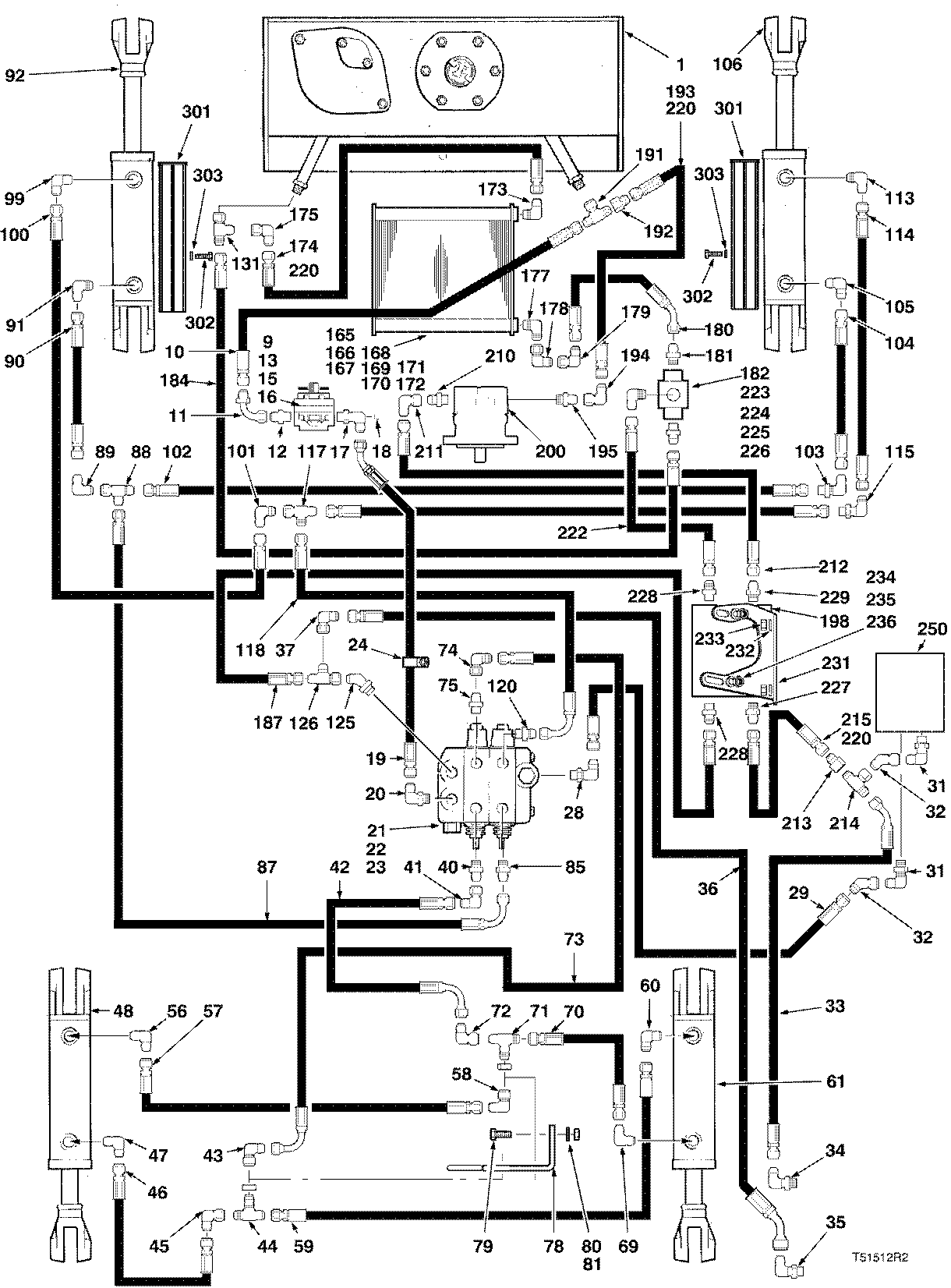

HYDRAULIC SYSTEM POWER FRAME (W/ OIL COOLER) ( 983218 - ) 2000-372/14 [2000-372/14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
9	810087800	2	NUT*1/2-20UNF	-
10	811657100	1	HOSE-HYD*1.25X46 -	-
11	811075200	1	ELBOW-90 DEG.	-
12	810347800	1	FITTING	-
13	-------	1	O-RING	-
15	826006300	2	STUD -	-
16	810011600	2	WASHER*1/2	-
17	826498000	1	ELBOW -	-
18	811889200	1	PLUG -	-
19	F122024	1	HOSE-HYD*1.00X60 -	-
20	810353500	1	ELBOW-90 DEG.	-
21	-------	1	O-RING	-
22	810082100	3	BOLT*1/2-13UNCX1	-
23	810011600	3	WASHER*1/2	-
24	810815100	1	Clamp	-
28	810353500	1	ELBOW-90 DEG.	-
29	810995500	1	HOSE-HYD*1.00X55 -	-
31	810353500	2	ELBOW-90 DEG.	-
32	810441800	2	ELBOW-45 DEG.	-
33	811019500	1	HOSE-HYD*1.00X83 -	-
34	810619900	1	ELBOW-90 DEG. -	-
35	810619900	1	ELBOW-90 DEG. -	-
36	F122425	1	HOSE-HYD*1.00X48 -	-
37	810489900	1	ELBOW-90 DEG. -	-
40	810490900	1	FITTING 1/2 MJIC 3/4 -	-
41	811154900	1	ELBOW-90 -	-
42	811778800	1	HOSE-HYD*0.5X20 -	-
43	810433800	1	ELBOW-90 DEG.	-
44	810787500	1	TEE	-
45	810433800	1	ELBOW-90 DEG.	-
46	810454400	1	HOSE-HYD*0.50X26	-
47	810112100	1	ELBOW-90 DEG.	-
48	-------	1	O-RING	-
56	810112100	1	ELBOW-90 DEG.	-
57	810454400	1	HOSE-HYD*0.50X26	-
58	810433800	1	ELBOW-90 DEG.	-
59	810454400	1	HOSE-HYD*0.50X26	-
60	810112100	1	ELBOW-90 DEG.	-
61	-------	1	O-RING	-
69	810112100	1	ELBOW-90 DEG.	-
70	810454400	1	HOSE-HYD*0.50X26	-
71	810787500	1	TEE	-
72	810433800	1	ELBOW-90 DEG.	-
73	810891700	1	HOSE ASSEMBLY - VALVE TO CYLINDER	-
74	810181600	1	Elbow Fitting	-
75	810490900	1	FITTING 1/2 MJIC 3/4 -	-
78	F282670	1	MOUNT -	-
79	810080100	2	HEX HEAD BOLT 3/8-16 UNC X 1	-
80	810309800	2	FLAT WASHER 3/8 - HARDENED	-
81	810087500	2	HEX NUT 3/8-16 UNC	-
85	810490900	1	FITTING 1/2 MJIC 3/4 -	-
87	811780200	1	HOSE-HYD*0.5X45 -	-
88	810579400	1	TEE-JIC/JIC/JIC -	-
89	810372600	1	ELBOW-90 DEG.	-
90	810349100	1	HOSE-HYD*0.50X39	-
91	810112100	1	ELBOW-90 DEG.	-
92	-------	1	O-RING	-
99	810112100	1	ELBOW-90 DEG.	-
100	810935000	1	HOSE-HYD*0.50X52	-
101	810372600	1	ELBOW-90 DEG.	-
102	810454400	1	HOSE-HYD*0.50X26	-
103	810372600	1	ELBOW-90 DEG.	-
104	810349100	1	HOSE-HYD*0.50X39	-
105	810112100	1	ELBOW-90 DEG.	-
106	-------	1	O-RING	-
113	810112100	1	ELBOW-90 DEG.	-
114	810935000	1	HOSE-HYD*0.50X52	-
115	810372600	1	ELBOW-90 DEG.	-
116	810454400	1	HOSE-HYD*0.50X26	-
117	810579400	1	TEE-JIC/JIC/JIC -	-
118	811780500	1	HOSE-HYD*0.5X49 -	-
120	810490900	1	FITTING 1/2 MJIC 3/4 -	-
125	810285700	1	ELBOW-45 DEG.	-
126	810362300	1	TEE	-
131	826214100	1	TEE -	-
165	811040900	1	OIL COOLER -	-
166	810082300	4	BOLT*1/2-13UNCX1-1/2	-
167	810011600	4	WASHER*1/2	-
168	810087700	4	NUT*1/2-13UNC	-
169	826292300	2	MOUNT -	-
170	810080100	6	HEX HEAD BOLT 3/8-16 UNC X 1	-
171	810309800	6	FLAT WASHER 3/8 - HARDENED	-
172	810087500	6	HEX NUT 3/8-16 UNC	-
173	810236500	1	ELBOW, 90 DEG	-
174	811167600	1	HOSE-HYD*1.00X58 -	-
175	810489900	1	ELBOW-90 DEG. -	-
177	810236500	1	ELBOW, 90 DEG	-
178	810489900	1	ELBOW-90 DEG. -	-
179	810489900	1	ELBOW-90 DEG. -	-
180	811897000	1	HOSE-HYD*1.00 X 35 -	-
181	810115500	1	FITTING	-
182	F121920	1	VALVE -	-
183	810115500	1	FITTING	-
184	810500200	1	HOSE-HYD*1.00X60	-
186	810353500	1	ELBOW-90 DEG.	-
187	F122023	1	HOSE-HYD*1.00X56 -	-
191	810703800	1	TEE	-
192	810704300	1	FITTING -	-
193	810608000	1	HOSE-HYD*0.75X92 -	-
194	810447100	1	ELBOW-90 DEG. -	-
195	810270000	1	FITTING*METRIC -	-
198	F122200	1	VALVE -	-
200	-------	1	O-RING	-
210	810155500	1	FITTING -	-
211	810433800	1	ELBOW-90 DEG.	-
212	810935000	1	HOSE-HYD*0.50X52	-
213	810293100	1	FITTING -	-
214	810399600	1	TEE	-
215	F122161	1	HOSE-HYD*.75X37 -	-
220	810654700	3	TIE STRAP -	-
222	F284454	1	TUBE -	-
223	810533500	2	CLAMP*1	-
224	810080900	1	BOLT*3/8-16UNCX3	-
225	810087500	1	HEX NUT 3/8-16 UNC	-
226	810309800	1	FLAT WASHER 3/8 - HARDENED	-
227	810115800	1	FITTING 3/4 MJIC 3/4	-
228	810115500	2	FITTING	-
229	810490900	1	FITTING 1/2 MJIC 3/4 -	-
231	F287087	1	BRACKET -	-
232	810309800	2	FLAT WASHER 3/8 - HARDENED	-
233	810087500	2	HEX NUT 3/8-16 UNC	-
234	810080800	2	BOLT*3/8-16UNCX2-3/4	-
235	810309800	2	FLAT WASHER 3/8 - HARDENED	-
236	810087500	2	HEX NUT 3/8-16 UNC	-
250	-------	1	O-RING	-
301	825682000	2	GUARD - DOZER HOSES	-
302	840799300	8	BOLT*3/8-16UNCX3/4	-
303	810309800	8	FLAT WASHER 3/8 - HARDENED	-
-	F434262	1	SEAL KIT -	-
-	F433821	1	VALVE, RELIEF -	-
-	F434261	1	ELEMENT -	-
-	F433819	1	CONNECTOR -	-
-	F433463	1	COIL -	-
-	F433818	1	Solenoid Hydraulic Valve	-
