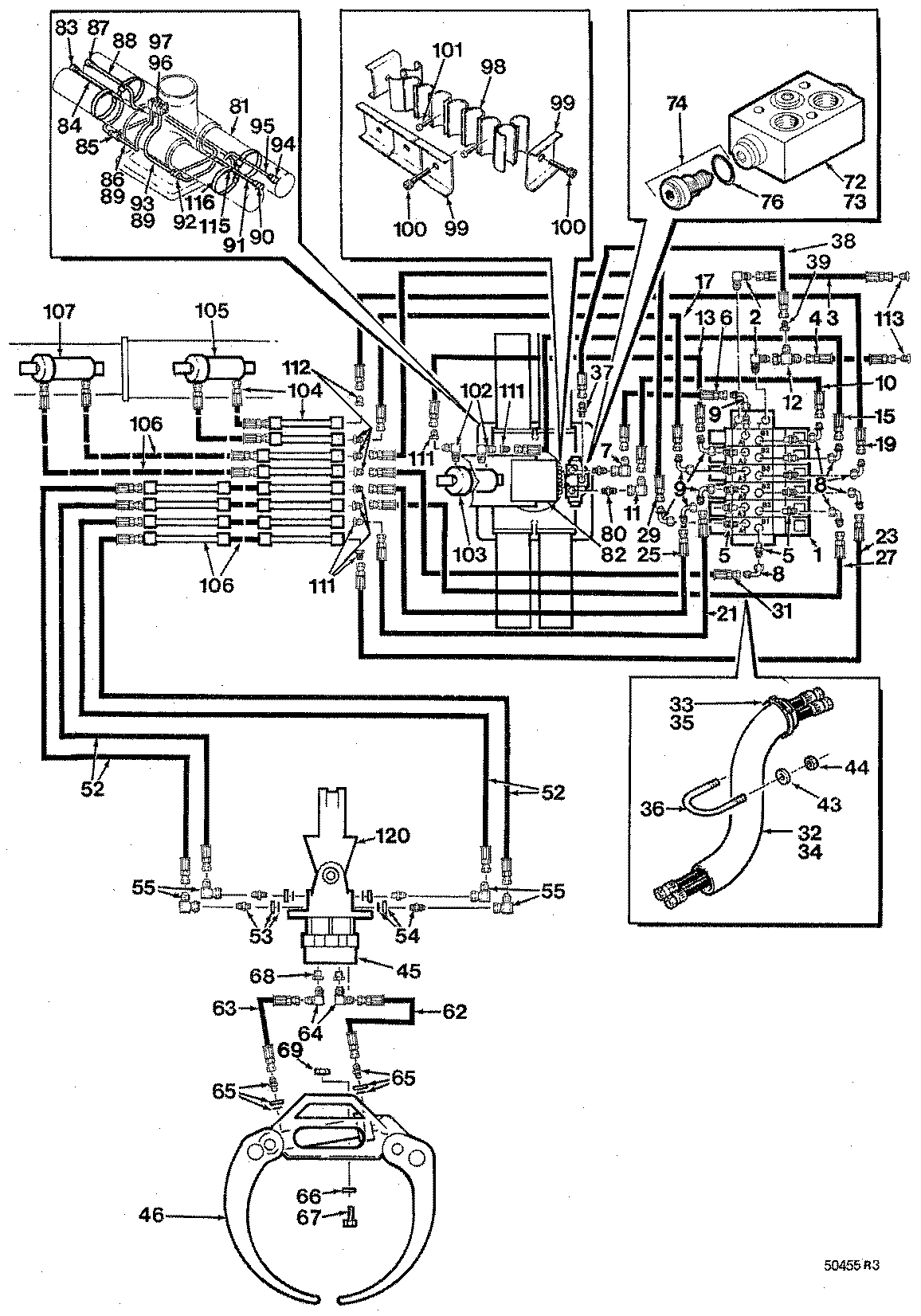

HYDRAULIC SYSTEM LOADER F60 MAIN ( 967504 - ) 2000-279/10 [2000-279/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	810289600	2	ELBOW 90 DEG	-
3	811253200	1	HOSE-HYD*0.75X24 - #12X24	-
4	811253200	1	HOSE-HYD*0.75X24 - #12X24	-
5	810155500	12	FITTING -	-
6	810470900	1	HOSE-HYD*0.5X75 - B1 SLEW	-
7	811163300	1	ELBOW-90 DEG. -	-
8	811154900	6	ELBOW-90 -	-
9	810181600	6	Elbow Fitting	-
10	810470900	1	HOSE-HYD*0.5X75 - B1 SLEW	-
11	811163300	1	ELBOW-90 DEG. -	-
12	810399500	1	TEE -	-
13	810552400	1	HOSE-HYD*0.5X185 - A2-MAIN LIFT	-
15	811251000	1	HOSE-HYD*0.5X190 - B2-MAIN LIFT	-
17	810552300	1	HOSE-HYD*0.5X175 -	-
19	810552300	1	HOSE-HYD*0.5X175 -	-
21	810552300	1	HOSE-HYD*0.5X175 -	-
23	810552300	1	HOSE-HYD*0.5X175 -	-
25	810552300	1	HOSE-HYD*0.5X175 -	-
27	810552300	1	HOSE-HYD*0.5X175 -	-
29	810552300	1	HOSE-HYD*0.5X175 -	-
31	810552300	1	HOSE-HYD*0.5X175 -	-
32	826835400	2	SLEEVE - 115`` LG	-
33	810402100	2	TIE WRAP -	-
34	826835300	1	SLEEVE - 60``	-
35	810654700	5	TIE STRAP -	-
36	810963400	1	CLAMP*3.38 -	-
37	811597400	1	Adapter Fitting	-
38	811722900	1	Hydraulic Hose	-
39	810471600	1	FITTING MJIC/FJIC -	-
43	810309800	2	FLAT WASHER 3/8 - HARDENED	-
44	810087500	2	HEX NUT 3/8-16 UNC	-
45	-------	1	O-RING	-
46	-------	1	O-RING	-
52	F017887	4	HOSE-ASSY	-
53	842921100	2	FITTING -	-
54	F005061	2	Fitting	-
55	842921200	4	FITTING -	-
62	842921300	1	HOSE -	-
63	842921400	1	HOSE - NG25,NG35 GRAPPLES	-
64	842921200	2	FITTING -	-
65	F005061	2	Fitting	-
66	-------	1	O-RING	-
67	842302800	6	BOLT - NG25,NG35,FX25,FX35 GRAPPLES	-
68	842926500	2	FITTING -	-
69	F003592	6	Lock Nut	-
72	F024031	1	RELIEF VALVE -	-
73	-------	1	O-RING	-
74	843103300	2	RELIEF CARTRIDGE -	-
76	F004571	2	O-RING	-
80	F005061	2	Fitting	-
81	-------	1	O-RING	-
82	-------	1	O-RING	-
83	F010072	1	ELBOW NIPPLE	-
84	F010117	1	PIPE -	-
85	F010124	1	T-CONNECTION	-
86	F010118	1	PIPE -	-
87	F010072	1	ELBOW NIPPLE	-
88	F010122	1	PIPE -	-
89	F005059	1	Fitting	-
90	F010072	1	ELBOW NIPPLE	-
91	F010120	1	PIPE -	-
92	F010124	1	T-CONNECTION	-
93	F010119	1	PIPE -	-
94	F010072	1	ELBOW NIPPLE	-
95	F010121	1	PIPE -	-
96	811121000	3	BOLT*M10X1.50-80 -	-
97	F003596	3	LOCK NUT	-
98	F007613	1	CLAMP -	-
99	F007727	5	CAP -	-
100	F010126	10	SCREW	-
101	841778000	2	BOLT*M12X1.75-20 -	-
102	811594100	2	Adapter Fitting	-
103	-------	1	O-RING	-
104	-------	1	O-RING	-
105	-------	1	O-RING	-
106	-------	1	O-RING	-
107	-------	1	O-RING	-
111	810775400	6	FITTING -	-
112	810471600	4	FITTING MJIC/FJIC -	-
113	810293100	2	FITTING -	-
115	F007730	4	Hose Support	-
116	F011264	4	HOSE CLAMP	-
120	-------	1	O-RING	-
-	F012507	2	Fitting	-
-	F010919	2	NIPPLE	-
-	F010667	6	SCREW	-
-	F003503	6	SCREW	-
-	F005061	2	Fitting	-
-	F005059	2	Fitting	-
-	F027373	1	Hydraulic Hose	-
-	F010089	1	HOSE - FX25,FX35 GRAPPLES	-
-	F027299	1	Hydraulic Hose	-
-	F023040	1	HOSE-ASSY	-
-	F022519	1	Hose Guard	-
-	F038464	4	HOSE	-

HYDRAULIC SYSTEM LOADER F60 MAIN ( 967504 - ) 2000-279/10 [2000-279/10]

Нет текстового описания
