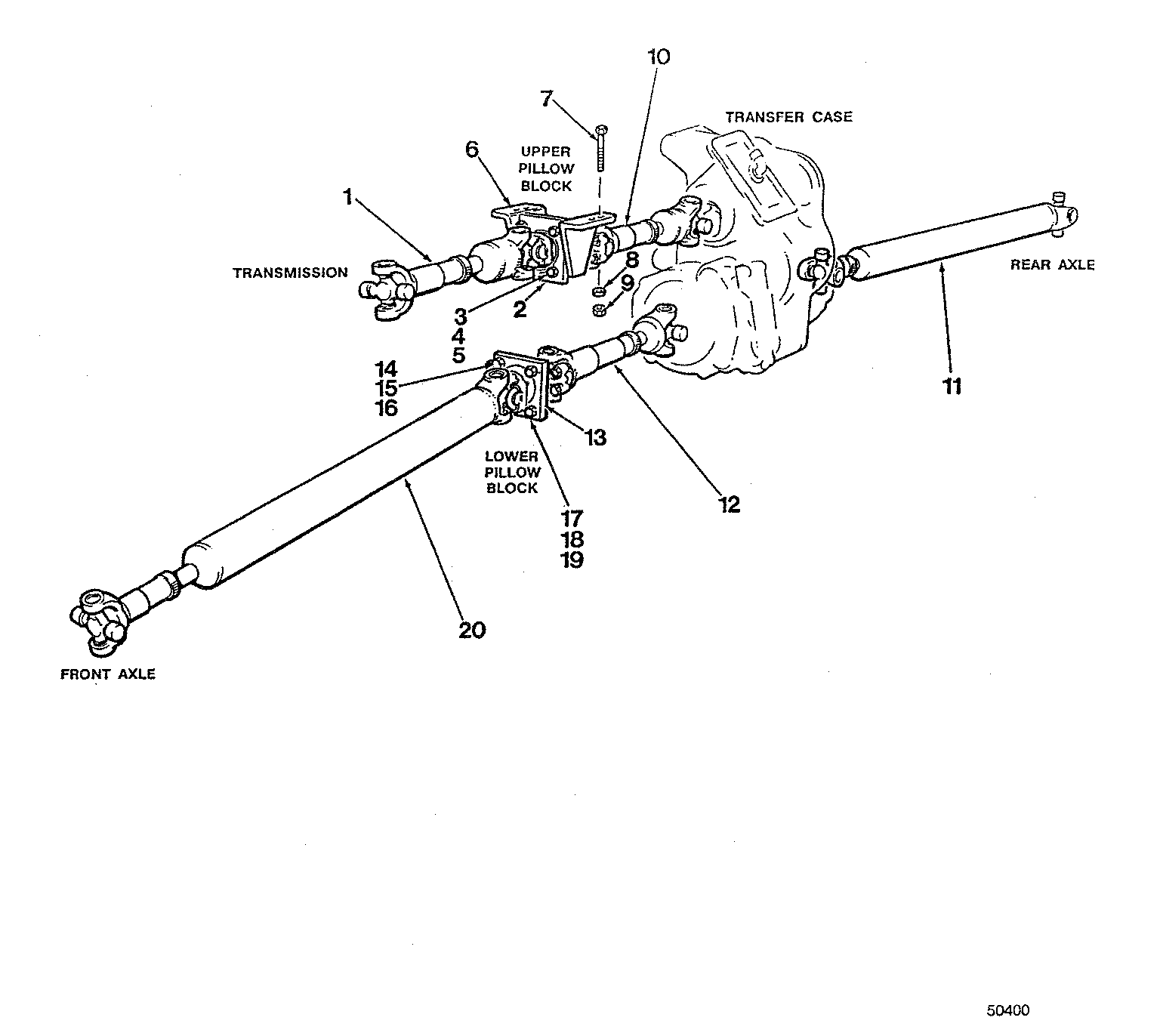

DRIVESHFT LAYOUT FORWARDER SHORT FRAME ( 983335 - ) 1500-072/10 [1500-072/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	811180900	1	DRIVESHAFT - FROM S/N CK7138-240P	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( CI7417 - CE7000) 1511-156/10
2	F297079	1	PILLOW BLOCK - LOWER	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( CI7417 - CE7000) 1511-156/10
3	810083500	4	BOLT*5/8-11UNCX2	-
4	810000500	4	WASHER*5/8	-
5	810087900	4	HEX NUT 5/8-11 UNC	-
6	826216100	1	MOUNT - PILLOW BLOCK	-
7	810083600	4	HEX HEAD BOLT 5/8-11 UNC X 2-1/4	-
8	810000500	4	WASHER*5/8	-
9	810087900	4	HEX NUT 5/8-11 UNC	-
10	811181000	1	DRIVESHAFT - FROM S/N CK7138-240P	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( CI7417 - CE7000) 1511-155/10
11	F120863	1	DRIVESHAFT-1550-6C -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE UPPER ( CI7417 - CE7000) 1511-155/10
12	825163200	1	DRIVESHAFT -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT PILLOW BLOCK TO TRANSFER CASE LOWER ( AA5191 - CE7000) 1511-064/10
13	F285938	1	PILLOW BLOCK*1480/6C -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AC5390 - CE7000`) 1530-022/10
14	810083700	2	BOLT*5/8-11UNCX2-1/2 -	-
15	810000500	4	WASHER*5/8	-
16	810087900	2	HEX NUT 5/8-11 UNC	-
17	810083500	2	BOLT*5/8-11UNCX2	-
18	810000500	4	WASHER*5/8	-
19	810087900	2	HEX NUT 5/8-11 UNC	-
20	F122105	1	DRIVESHAFT -	Refer to Page: FORWARDER\230-F FORWARDER\230-F - 230F/610/520 (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AC5390 - CE7000`) 1530-022/10
