Открытый узел

Hydraulic Pin Grabber Coupler Kit

Hydraulic Pin Grabber Coupler Kit

Hydraulic Pin Grabber Coupler Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Hydraulic Pin Grabber Coupler Kit

Нет текстового описания

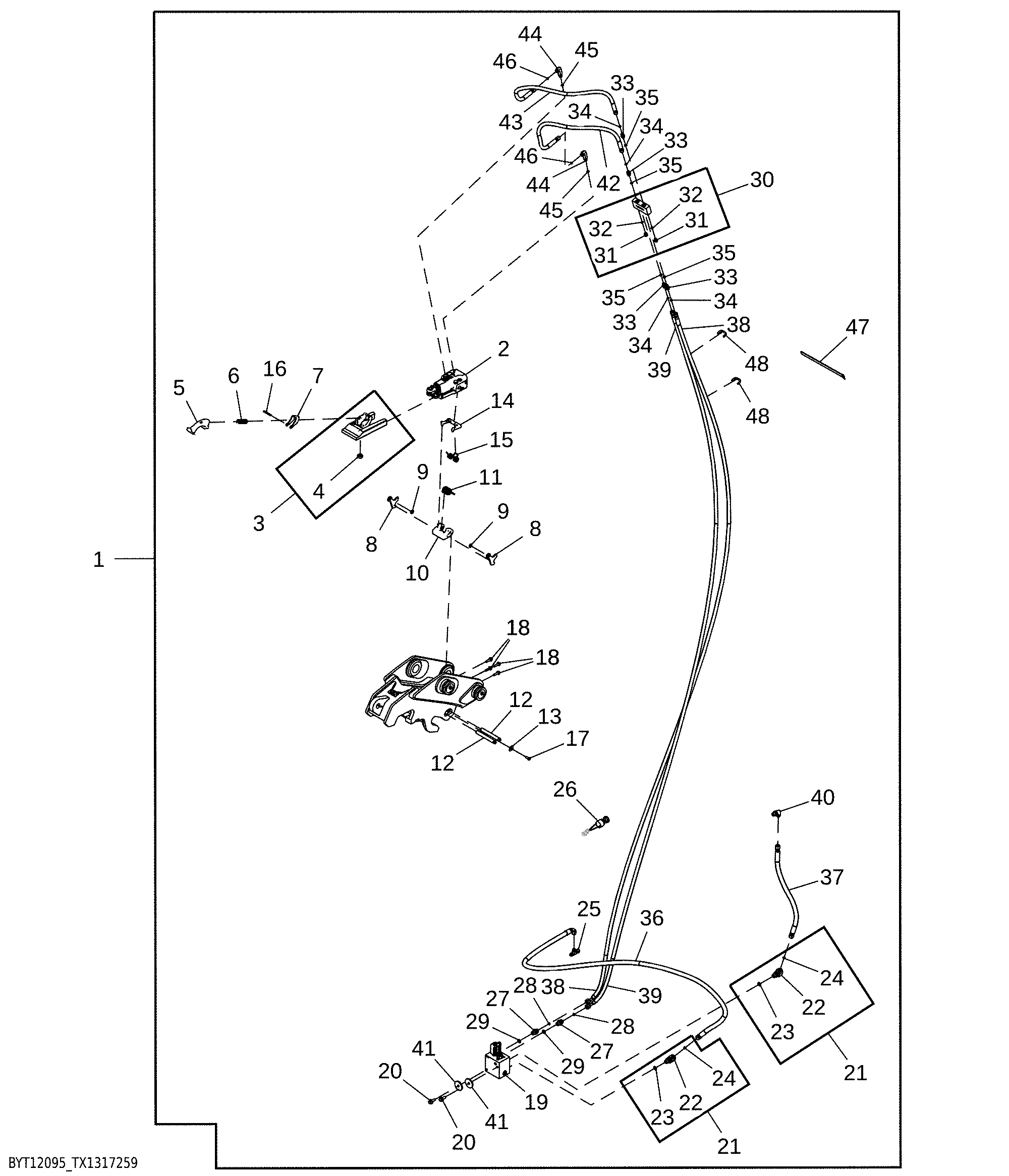

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT12095	1	Quick Coupler	Whole Goods
2	AT521750	1	Hydraulic Cylinder	INCLUDES AT521751, AT535184, AND AT535185
2	AT535185	1	Rod Kit	-
2	AT521751	1	Hydraulic Cylinder Kit	-
2	AT535184	1	Pin Kit	-
3	AT533769	1	Wedge	-
4	T467280	1	Bearing	-
5	T451351	1	Arm	-
6	T451333	1	Spring	-
7	T451335	1	Guard	-
8	T451349	2	Trigger	-
9	T451341	2	Lock Washer	-
10	T451347	1	Wedge	-
11	T451339	1	Torsion Spring	-
12	T451350	2	Shaft	-
13	T467281	1	Retainer	-
14	T451330	1	Latch	-
15	T451340	1	Torsion Spring	-
16	34M7044	1	Spring Pin	6 X 50 mm
17	19M9334	1	Screw	M8 X 20
18	19M9838	4	Screw	M8 X 30
19	AT520994	1	Solenoid Hydraulic Valve	INCLUDES AT354273, AT420499, AND AT520995
19	AT354273	1	Electrical Coil	-
19	AT420499	1	Spool	-
19	AT420500	1	Seal Kit	-
19	AT520995	1	Hydraulic Pressure Valve	-
19	AT475354	1	Seal Kit	-
20	N275625	2	Screw	-
21	61M5026	2	Elbow Fitting	-
22	38H5026	1	Elbow Fitting	-
23	51M7043	1	O-Ring	15.300 X 2.200 mm
24	T77613	1	O-Ring	-
25	AT36921	1	Tee Fitting	-
26	AE44436	1	Horn	SUB FOR AT308027
27	38H5012	2	Adapter Fitting	-
28	T77613	2	O-Ring	-
29	51M7043	2	O-Ring	15.300 X 2.200 mm
30	AT532223	1	Manifold	-
31	64H1002	2	Drain Plug	-
32	R28782	2	O-Ring	-
33	38H1159	4	Adapter Fitting	-
34	T77814	4	O-Ring	-
35	R28782	4	O-Ring	-
36	AT531621	1	Hydraulic Hose	-
37	AT531620	1	Hydraulic Hose	-
38	AT531622	1	Hydraulic Hose	-
39	AT531622	1	Hydraulic Hose	-
40	AT508039	1	Adapter Fitting	-
41	R124347	2	Washer	-
42	AT531624	1	Hydraulic Hose	-
43	AT531624	1	Hydraulic Hose	-
44	38H1462	2	Elbow Fitting	-
45	R28782	2	O-Ring	-
46	T77814	2	O-Ring	-
47	T394449	1	Strap	-
48	T467843	2	Hose Support	-
49	AT441696	1	Toggle/Rocker Switch	Coupler Not Illustrated
50	AT441704	1	Wiring Harness	Coupler Not Illustrated
51	R125461	3	Clamp	Not Illustrated
52	R44302	12	Tie Band	Not Illustrated
53	T361716	1	Label	Interference English Not Illustrated
53	T361716X28	1	Label	Interference French Not Illustrated
53	T361716X63	1	Label	Interference Spanish Not Illustrated
54	T441102X019	1	Label	Warning Ground Test English Not Illustrated
54	T441102X028	1	Label	Warning Ground Test French Not Illustrated
54	T441102X063	1	Label	Warning Ground Test Spanish Not Illustrated
55	T470304X019	1	Label	Pin Grabber Coupler Operation English Not Illustrated
55	T470304X028	1	Label	Pin Grabber Coupler Operation French Not Illustrated
55	T470304X063	1	Label	Pin Grabber Coupler Operation Spanish Not Illustrated
