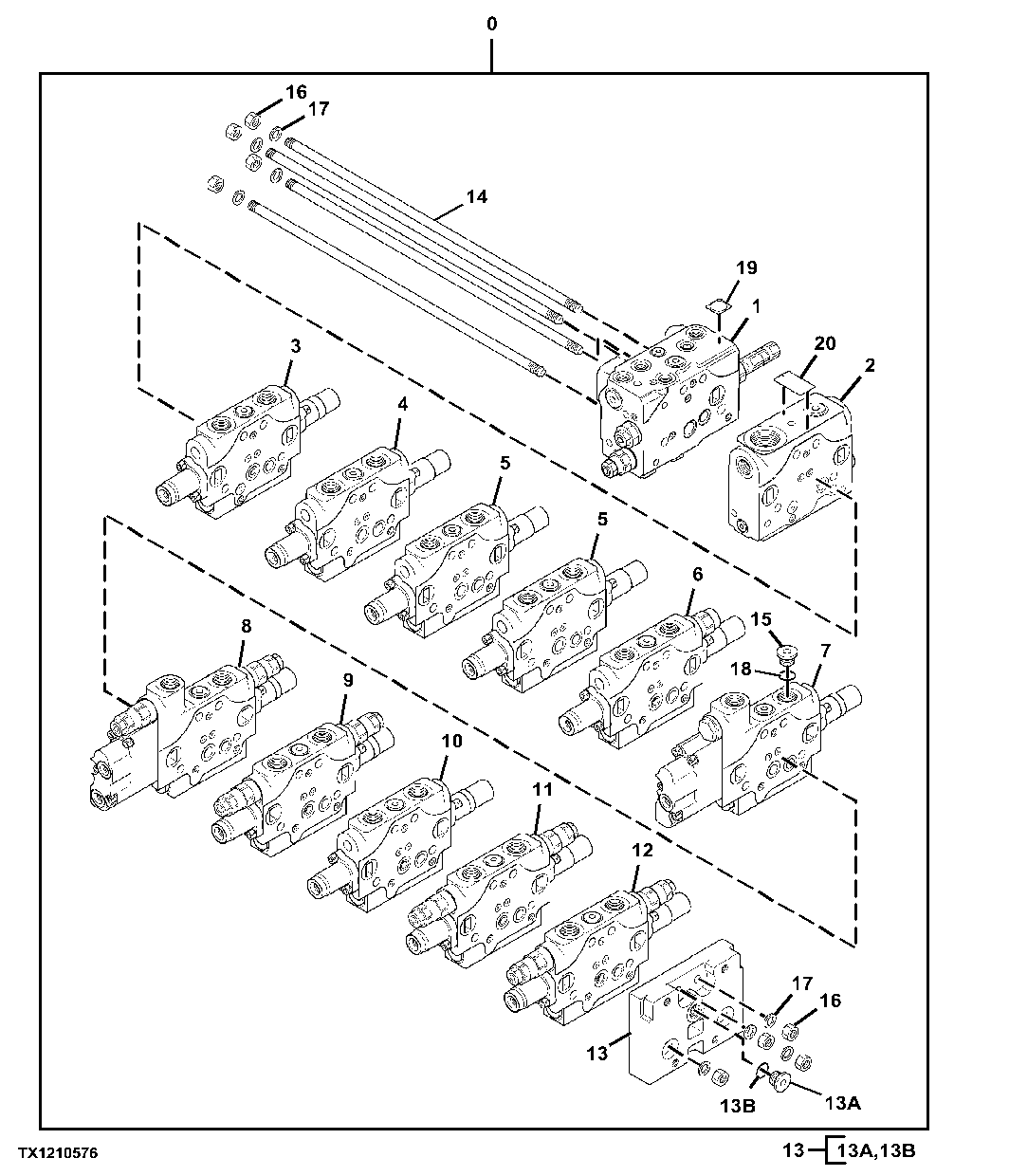

Control Valve Components, Straight Blade

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	FYD00011489	1	Control Valve	SUB FOR FYD00001217 OR FYD00012298
1	FYD00008935	1	Section	Inlet Components On Separate Page, SUB FOR 4693317
2	4693318	1	Section	Inlet Mid Section Components On Separate Page
3	FYD00002928	1	Selective Control Valve	Swing Components On Separate Page
4	FYD00002950	1	Selective Control Valve	Blade Components On Separate Page
5	FYD00002930	2	Selective Control Valve	Travel Components On Separate Page
6	4693322	1	Section	Boom Swing Components On Separate Page
7	FYD00002970	1	Selective Control Valve	Boom (2) Components On Separate Page
8	FYD00002970	1	Selective Control Valve	Boom (1) Components On Separate Page
9	FYD00003007	1	Selective Control Valve	Arm (1) Components On Separate Page
10	FYD00003015	1	Selective Control Valve	Arm (2) Components On Separate Page
11	FYD00003026	1	Selective Control Valve	Bucket Components On Separate Page
12	4693329	1	Section	Auxiliary (1) Components On Separate Page
13	1185601	1	End Plate	-
14	1185602	4	Bolt	-
15	0800013	1	Plug	-
16	14M7274	8	Nut	M10, SUB FOR 0798303
17	24M7028	8	Washer	10.500 X 20 X 2 mm, SUB FOR 0201202
18	4506418	1	O-Ring	-
19	-	1	Part 22	NSEP
20	-	1	Part 23	NSEP
13A	0798412	1	Plug	-
13B	4297380	1	O-Ring	SUB FOR 4622346, 4509180 OR 4674883

Control Valve Components, Straight Blade

Нет текстового описания
