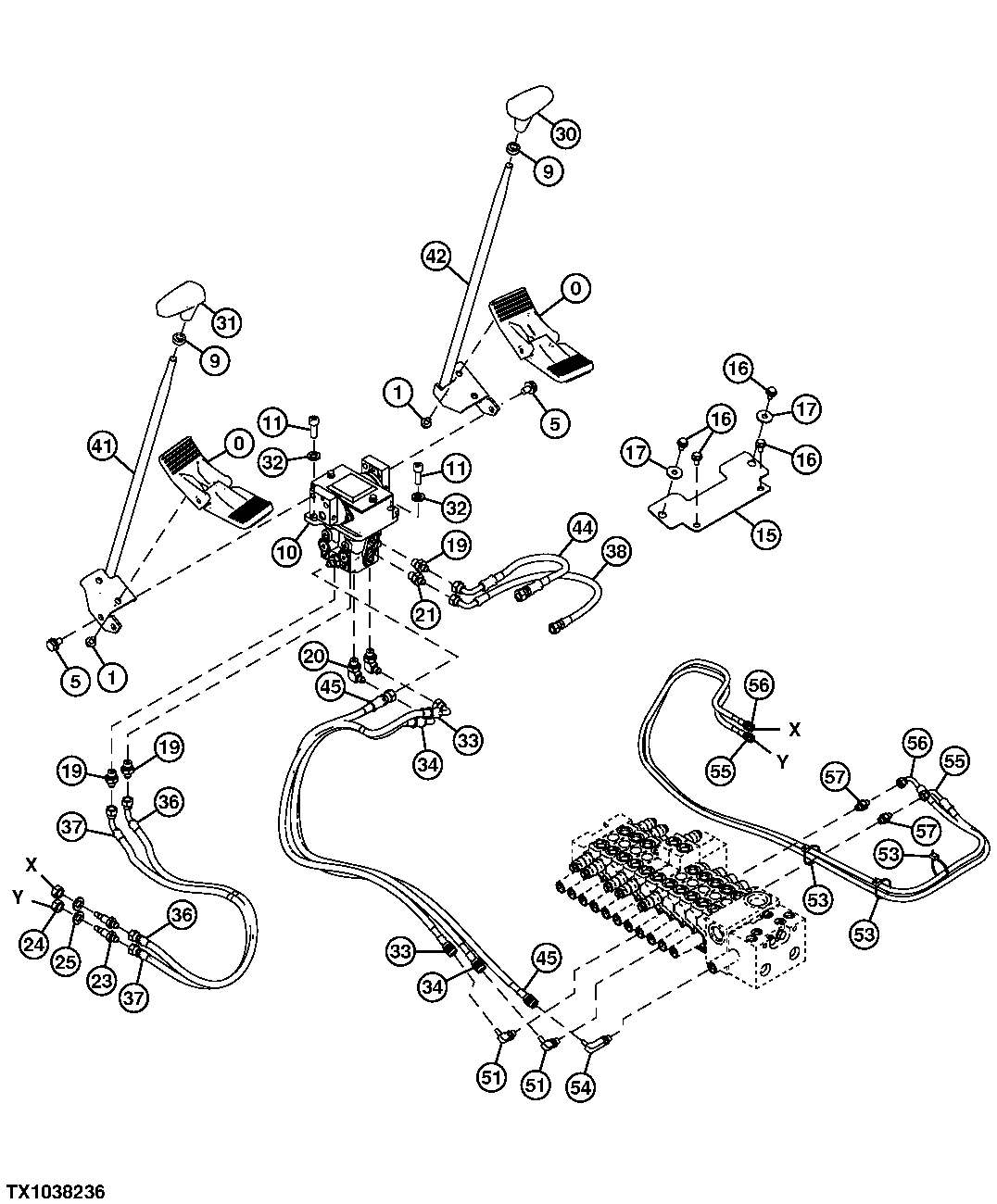

Travel Pilot Controller Lever and Pedal

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4612246	2	Pedal	-
1	-	4	Part 2	(J260814 NLA)
1	24M7055	4	Washer	8.400 X 16 X 1.600 mm, (SUB FOR A590108)
1	19M7162	4	Cap Screw	M8 X 16, (SUB FOR J900814)
5	-	4	Part 5	(J271020 NLA)
5	19M7938	4	Cap Screw	M10 X 20, (SUB FOR J901020)
5	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
9	4424185	2	Nut	-
10	9241721	1	Valve	Components On Separate Page, SUB FOR 4607488
11	19M7576	2	Screw	M10 X 30, (SUB FOR J781030)
15	4673013	1	Cover	-
16	24M7055	4	Washer	8.400 X 16 X 1.600 mm, (SUB FOR A590108)
16	19M7162	4	Cap Screw	M8 X 16, (SUB FOR J900816)
16	-	4	Part 12	(J260816 NLA)
17	4346037	2	Washer	-
19	A852122	3	Adapter Fitting	-
19	M800650	1	Packing	(SUB FOR 957366)
20	4154670	2	Elbow Fitting	(SUB FOR A852322)
20	M800650	1	Packing	(SUB FOR 957366)
21	4652862	1	Screen	-
21	M800650	1	Packing	(SUB FOR 957366)
23	4653496	2	Adapter Fitting	-
24	14M7275	2	Nut	M12, (SUB FOR J950012)
25	24M7047	2	Washer	13 X 24 X 2.500 mm, (SUB FOR A590112)
30	2051176	1	Grip	-
31	2051177	1	Grip	-
32	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
33	-	1	Part 28	(4677644 NLA) (ORDER 4720639, A8752322)
34	-	1	Part 29	(4677645 NLA) (ORDER4720640, A852322)
36	4677557	1	Hydraulic Hose	-
37	4677569	1	Hydraulic Hose	-
38	4677570	1	Hydraulic Hose	-
41	7053867	1	Lever	-
42	7053868	1	Lever	-
44	4680176	1	Hydraulic Hose	-
45	4680177	1	Hydraulic Hose	-
51	4467375	2	Elbow Fitting	-
51	M800650	1	Packing	(SUB FOR 957366)
53	H77698	3	Tie Band	(SUB FOR 4055312)
54	4467376	1	Elbow Fitting	-
54	M800650	1	Packing	(SUB FOR 957366)
55	4685539	1	Hydraulic Hose	-
56	4685540	1	Hydraulic Hose	-
57	4687773	2	Hydraulic Pressure Valve	-

Travel Pilot Controller Lever and Pedal
