Hydraulic Lines (Control Valve To Swing Motor)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4506418	1	O-Ring	-
0	A852143	2	Adapter Fitting	-
2	4506418	1	O-Ring	-
2	4276967	2	Adapter Fitting	-
4	A852344	1	Elbow Fitting	-
4	4506418	1	O-Ring	-
8	A852133	2	Adapter Fitting	-
8	4297380	1	O-Ring	SUB FOR 4622346, 4509180 AND 4674883
10	9768336	1	Guide	-
12	-	2	Part 10	J271025 NLA
12	19M7402	2	Cap Screw	M10 X 25, SUB FOR J901025
12	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
17	3110730	1	Bracket	-
17	3120585	1	Bracket	-
19	9768975	1	Guide	-
20	-	2	Part 16	J271045 NLA
20	19M7572	2	Cap Screw	M10 X 45, SUB FOR J901045
20	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
22	-	4	Part 19	J271025 NLA
22	19M7402	4	Cap Screw	M10 X 25, SUB FOR J901025
22	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
28	4638063	3	Adapter Fitting	-
28	4506418	1	O-Ring	-
30	4638353	3	Adapter Fitting	-
30	4506418	1	O-Ring	-
32	H77698	4	Tie Band	SUB FOR 4055312
35	19M7662	1	Cap Screw	M10 X 30, SUB FOR J901030
35	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
35	-	1	Part 27	J271030 NLA
37	4279302	1	Adapter Fitting	-
37	AT318035	1	O-Ring	SUB FOR 4506424
42	4673304	1	Elbow Fitting	-
42	AT318035	1	O-Ring	SUB FOR 4506424
48	4685475	1	Hydraulic Hose	-
49	4685476	1	Hydraulic Hose	-
50	7056239	1	Bracket	-
63	3110975	1	Cover	-
64	19M7139	3	Cap Screw	M8 X 20, SUB FOR J900820
64	24M7055	3	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
64	-	3	Part 38	J260820 NLA
65	4675029	2	Isolator	-
81	4685485	1	Hydraulic Hose	-
82	4685486	1	Hydraulic Hose	-
83	4685487	1	Hydraulic Hose	-
84	4685498	1	Hydraulic Hose	-
85	4685499	1	Hydraulic Hose	-
86	4685500	1	Hydraulic Hose	-
87	4685501	1	Hydraulic Hose	-
88	4685502	1	Hydraulic Hose	-
89	4685503	1	Hydraulic Hose	-

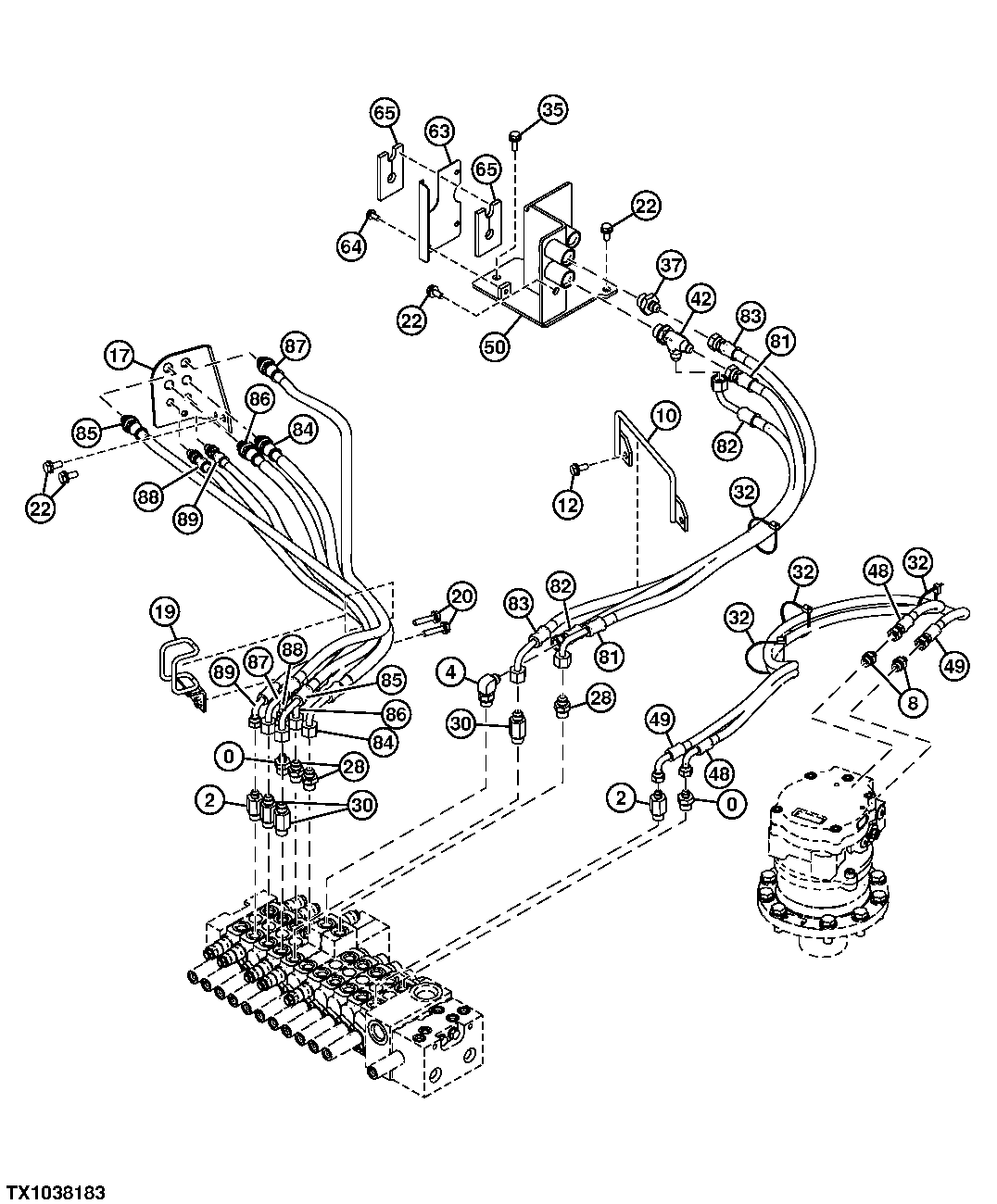

Hydraulic Lines (Control Valve To Swing Motor)
