Auxiliary Pilot Lines and Flow Rate Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9214705	1	Hydr./Pilot Control Valve	SUB FOR 4607487
1	-	2	Part 2	J260825 NLA
1	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
1	19M7163	2	Cap Screw	M8 X 25, SUB FOR J900825
3	4612247	1	Pedal	-
4	-	2	Part 6	J260812 NLA
4	19M7865	2	Screw	M8 X 16, SUB FOR J900812
4	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
5	4611406	1	Bracket	-
6	19M7647	2	Screw	M8 X 16, SUB FOR J780816
7	-	2	Part 11	12M7065 NLA
9	8098457	1	Cover	-
11	8110358	1	Cover	-
12	-	4	Part 14	J260816 NLA
12	19M7162	4	Cap Screw	M8 X 16, SUB FOR J900816
12	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
14	A852122	3	Adapter Fitting	-
14	M800650	1	Packing	SUB FOR 957366
15	4652862	1	Screen	-
15	M800650	1	Packing	SUB FOR 957366
17	4667624	3	Structural Tube	-
18	4653496	1	Adapter Fitting	-
19	14M7275	1	Nut	M12, SUB FOR J950012
20	24M7047	1	Washer	13 X 24 X 2.500 mm, SUB FOR A590112
22	4616572	1	Valve	-
24	4154670	3	Elbow Fitting	SUB FOR A852322
24	M800650	1	Packing	SUB FOR 957366
26	4672840	1	Wiring Harness	-
27	4672841	1	Wiring Harness	-
28	4629881	1	Switch	-
30	H77698	3	Tie Band	SUB FOR 4055312
31	H77698	1	Tie Band	SUB FOR 4323613
36	-	2	Part 33	J260860 NLA
36	19M6451	2	Cap Screw	M8 X 60, SUB FOR J900860
36	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
38	4677647	1	Hydraulic Hose	-
39	4677574	1	Hydraulic Hose	-
40	4677576	1	Hydraulic Hose	-
41	4682382	1	Hydraulic Hose	-
42	4682383	1	Hydraulic Hose	-
43	4682384	1	Hydraulic Hose	-

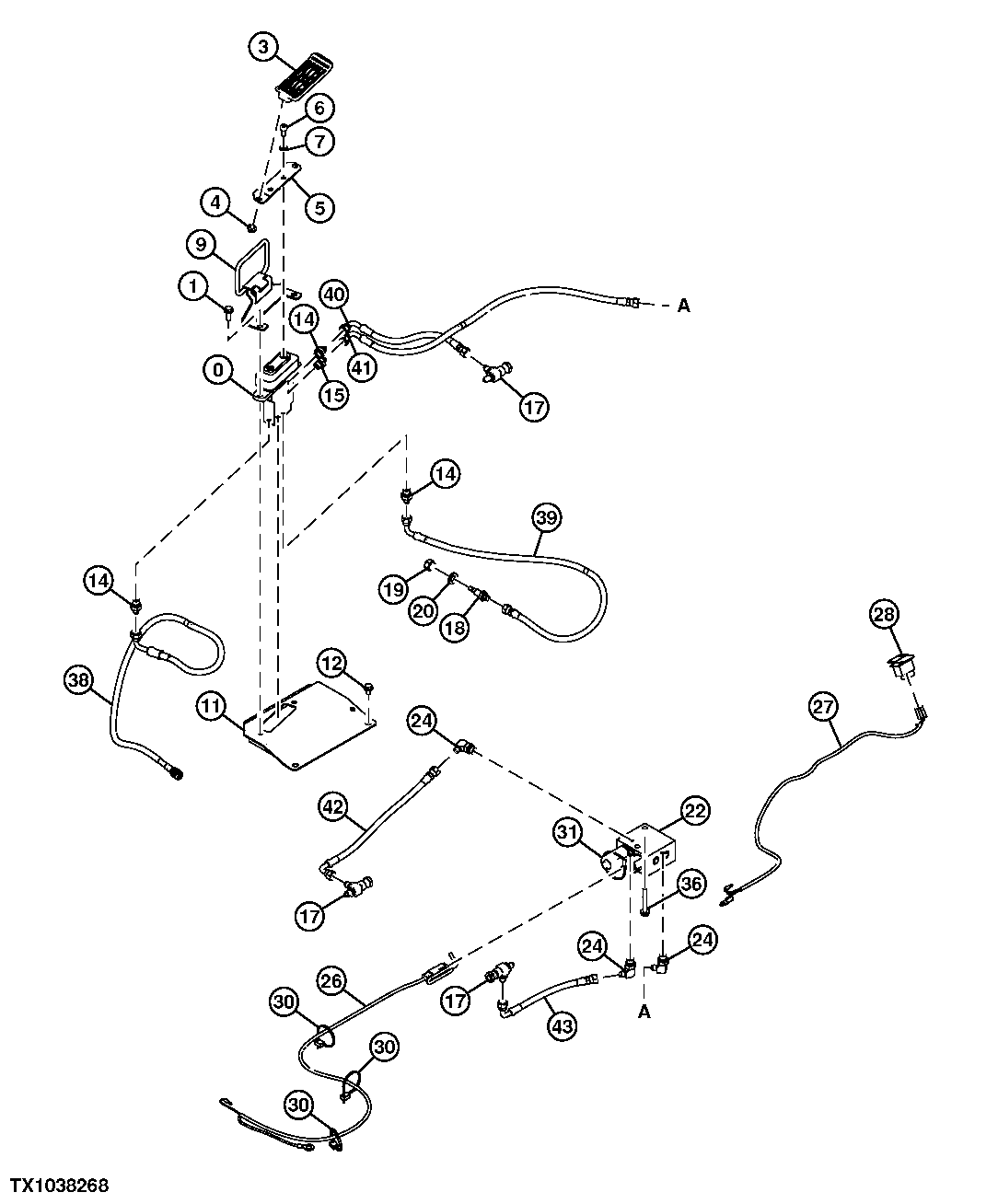

Auxiliary Pilot Lines and Flow Rate Valve
