Открытый узел

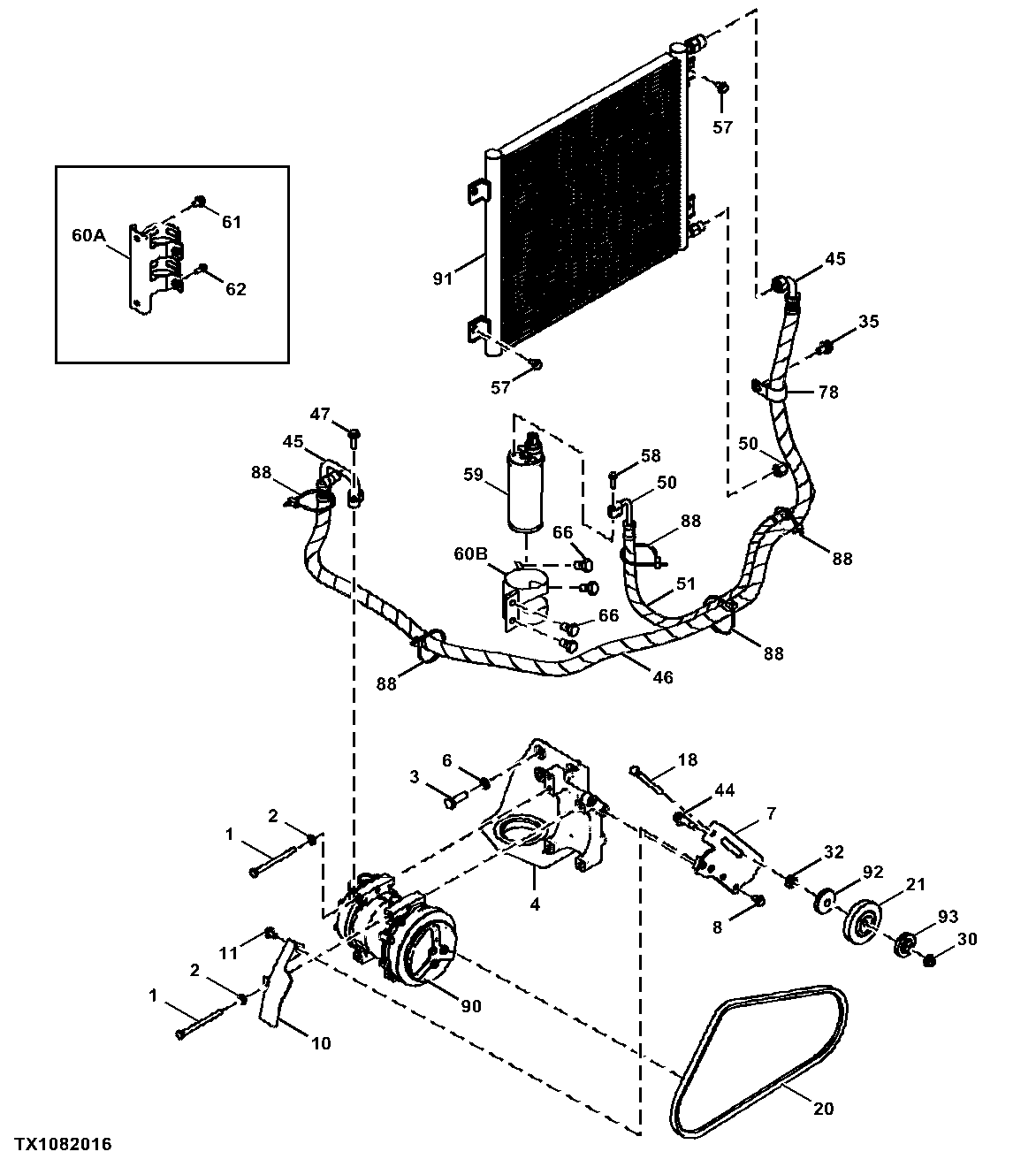

Air Conditioner Compressor and Condenser

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7296	4	Cap Screw	M8 X 100, SUB FOR J900800
2	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
3	19M7550	4	Cap Screw	M10 X 35, SUB FOR J921035
4	2054348	1	Bracket	-
6	12M7066	4	Lock Washer	10 mm, SUB FOR A590910
7	9767823	1	Bracket	-
8	-	2	Part 7	J260816 NLA
8	19M7162	2	Cap Screw	M8 X 16, SUB FOR J900816
8	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
10	8109046	1	Cover	-
11	-	2	Part 11	J260816 NLA
11	19M7162	2	Cap Screw	M8 X 16, SUB FOR J900816
11	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
18	4635845	1	Screw	-
20	4669292	1	V-Belt	-
21	8121386	1	Pulley	-
21	-	1	Part 16	4615808 NLA, SUB 8121386, ALSO ORDER 4712753 AND 4712754
30	4681459	1	Nut	-
32	4681458	1	Locking Collar	-
35	-	1	Part 20	J271020 NLA
35	19M7938	1	Cap Screw	M10 X 20, SUB FOR J901020
35	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
44	4681457	1	Shaft	-
45	4673439	1	Refrigerant Hose	-
45	4699659	2	O-Ring	-
46	4673435	1	Tube	-
47	-	1	Part 27	J260830 NLA
47	19M7288	1	Cap Screw	M8 X 30, SUB FOR J900830
47	24M7055	1	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
50	4699666	2	O-Ring	-
50	4673440	1	Refrigerant Hose	-
51	4327315	1	Hose Guard	4327293 NLA
57	-	4	Part 33	J260816 NLA
57	19M7162	4	Cap Screw	M8 X 16, SUB FOR J900816
57	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
58	-	1	Part 36	J260625 NLA
58	19M7286	1	Cap Screw	M6 X 25, SUB FOR J900625
58	24M7054	1	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
59	4615806	1	Receiver-Dryer	-
60	-	1	Part 40	4692996 NLA
60	4460399	1	Bracket	SUB FOR 4692996
61	-	2	Part 42	J260816 NLA
61	19M7162	2	Cap Screw	M8 X 16, SUB FOR J900816
61	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
62	19M7077	2	Cap Screw	M6 X 20, SUB FOR J900620
62	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
62	-	1	Part 45	J260620 NLA
66	-	4	Part 48	J260614 NLA
66	19M7560	4	Cap Screw	M6 X 16
66	24M7056	4	Washer	10.500 X 20 X 2 mm
78	R72659	1	Clamp	SUB FOR 4190263
88	H77698	5	Tie Band	SUB FOR 4055312
90	4674027	1	Compressor	-
91	4674032	1	Vapor Condenser	-
92	4615810	1	Cover	USE WITH 4615808
92	4712753	1	Cover	USE WITH 8121386
93	4615811	1	Cover	USE WITH 4615808
93	4712754	1	Cover	USE WITH 8121386
94	4667336	1	Refrigerant Hose	Extension Hose Not Illustrated, M16X1.5, 3400 mm
94	4666744	1	Refrigerant Hose	Extension Hose Not Illustrated, M24X1.5, 3400 mm

Air Conditioner Compressor and Condenser

Нет текстового описания
