Открытый узел

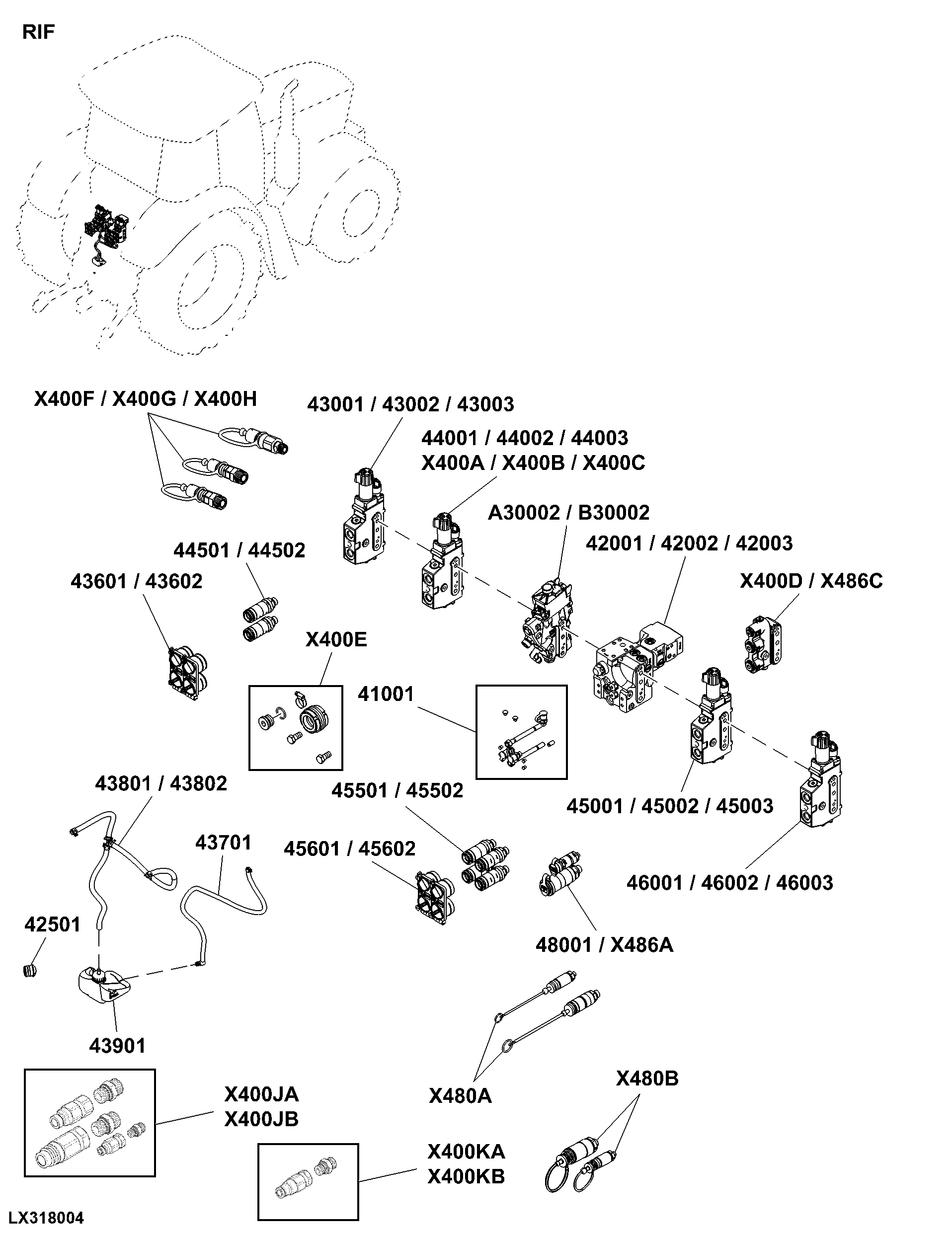

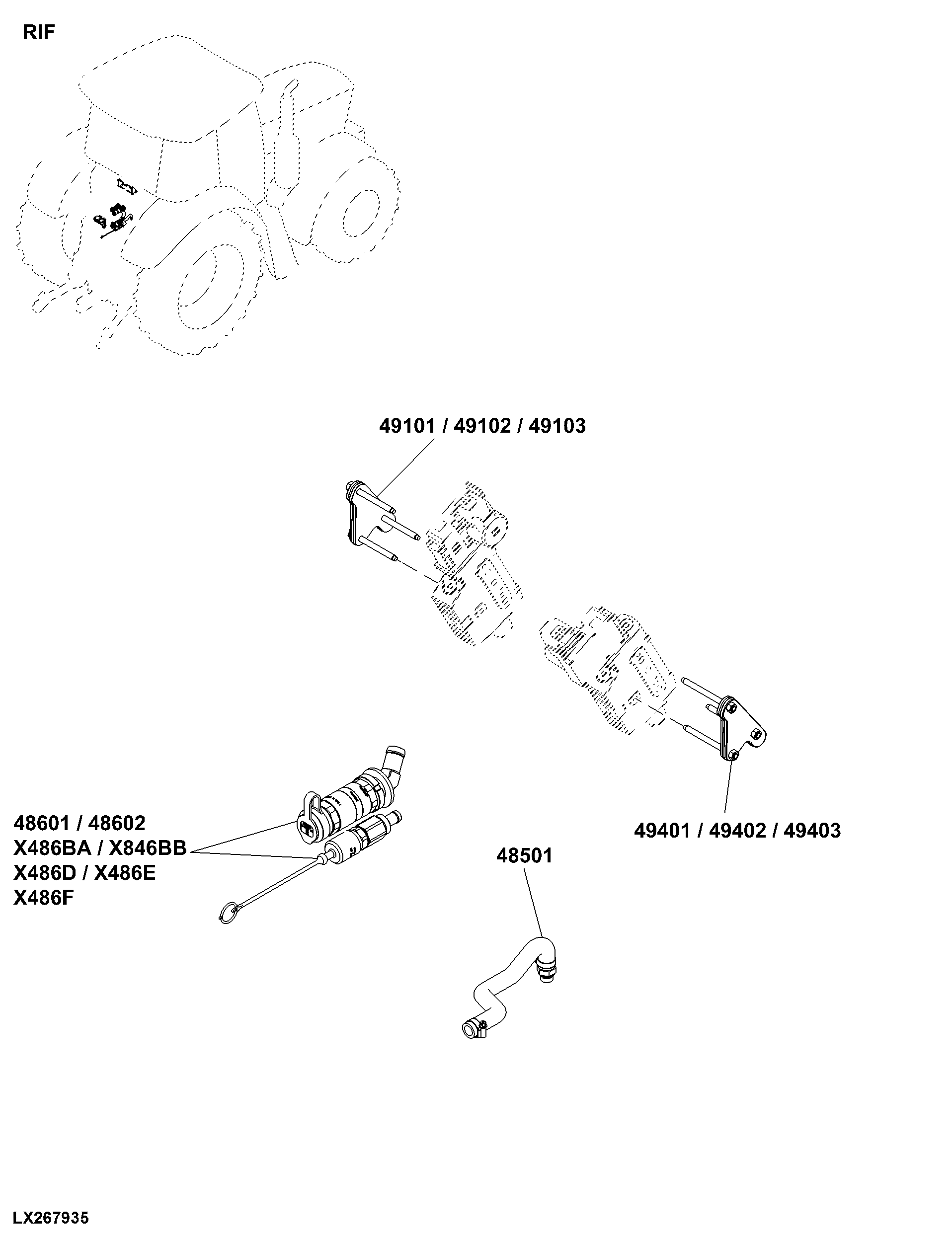

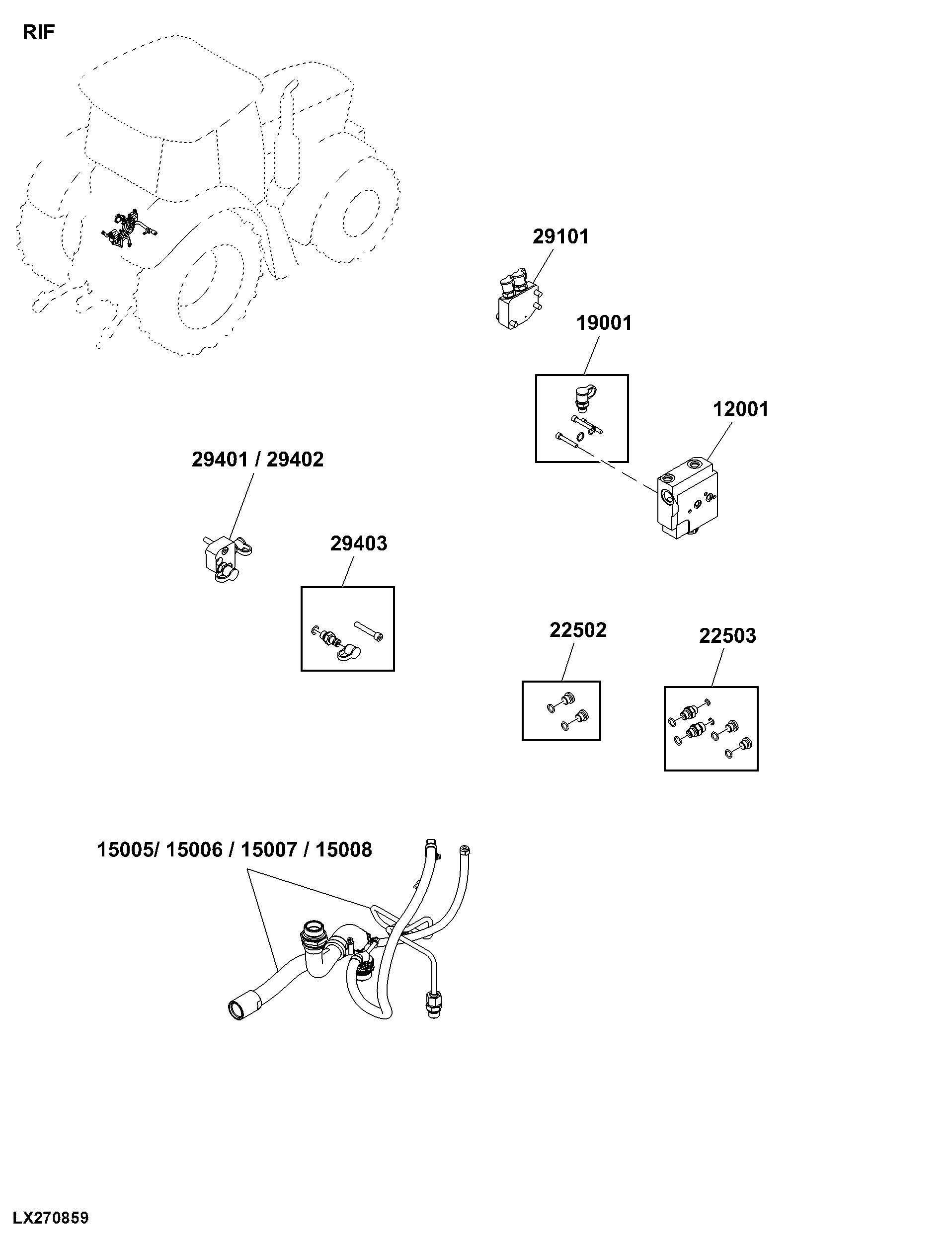

RIF Hydraulic Couplers, Rear Implement

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Inlet Valve / Priority 1, PFC-Hydraulics	-
-	-	1	Mechanical SCV, 450 Series, Position II	-
-	-	1	Mechanical SCV, 450 Series, Position I	-
-	-	1	Mechanical SCV, 200 Series, Position IV	-
-	-	1	Mechanical SCV, 200 Series, Position III	-
-	-	1	Mechanical SCV, 200 Series, Position II	-
-	-	1	Mechanical SCV, 200 Series, Position I	-
-	-	1	Mechanical SCV, 100 Series, Position III	-
-	-	1	Mechanical SCV, 100 Series, Position II ( - 977138)	-
-	-	1	Mechanical SCV, 100 Series, Position I	-
-	-	1	Mechanical SCV, 450 Series, Position III	-
-	-	1	Hydraulic Quick Coupler, Position III - IV	-
-	-	1	Hydraulic Quick Coupler, Position III	-
-	-	1	Hydraulic Quick Coupler, Position II	-
-	-	1	Hydraulic Quick Coupler, Position I - II	-
-	-	1	Hydraulic Drain Oil Reservoir	-
-	-	1	Hydraulic Breakaway Couplers, Power Beyond	-
-	-	1	Hose, Drain Oil Parts, W/ Oil Cup, LH	-
-	-	1	Fittings, Priority 2, W/O TLS™	-
-	-	1	Mounting Parts, W/O Hydraulic Trailer Brake Valve, W/O Priority 2 Option	-
-	-	1	Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ TLS™	-
-	-	1	Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ Hydraulic Trailer Brake Valve	-
-	-	1	Valve, Priority 2 + 3, W/ PFC-Hydraulics	-
-	-	1	Rockshaft Control Valve, W/ Steppermotor	-
-	-	1	Rockshaft Control Valve, W/ Steppermotor	-
-	-	1	Power Beyond Coupler Kit, Implement, Attachment	-
-	-	1	Plugs, W/O Quick Coupler	-
-	-	1	Oil Return Hose, Power Beyond	-
-	-	1	Fittings, Priority 2, W/ TLS™	-
-	-	1	Mounting Parts, Priority 2, W/O Hydraulic Trailer Brake Valve	-
-	-	1	Mounting Parts, Priority 2, W/ Hydraulic Trailer Brake Valve	-
-	-	1	Mounting Parts, Priority 2, Priority Valve	-
-	-	1	Mounting Parts, Power Beyond Connector Kit, Implement	-
-	-	1	Mounting Parts, Inlet Priority 3, PFC-Hydraulics	-
-	-	1	Mounting Parts / Inlet Valve, Priority 1	-
-	-	1	Mechanically Operated Control Valve, M-SCV, 100 Series, Position IV	-
-	-	1	Mechanical SCV, 450 Series, Position IV	-
-	-	1	Breakaway Coupler, Oil Return Coupler	-
-	-	1	Breakaway Coupler, Power Beyond, Size 20, Attachment	-
-	-	1	Breakaway Coupler, Power Beyond, Size 12.5, Attachment	-
-	-	1	Breakaway Coupler, Power Beyond, Class 2, Attachment	-
-	-	1	Breakaway Coupler, Oil Return Coupler, Size 20, Attachment	-
-	-	1	Breakaway Coupler, Oil Return Coupler, Size 12.5, W/ Quick Coupler Socket, Attachment	-
-	-	1	Breakaway Coupler, Oil Return Coupler, Size 12.5, W/ Quick Connect Coupler, Attachment	-
-	-	1	Breakaway Coupler, Oil Return Coupler, Preparation	-
-	-	1	Breakaway Coupler, Oil Return Coupler, Class 2, Attachment	-
-	-	1	Breakaway Coupler, Oil Return Coupler, Attachment	-
-	-	1	Coupler / Fitting, Drain Line, Implement Hydraulic Motor	-
-	-	1	Attachment, Power Beyond Coupler Kit, Implement, Size 20	-
-	-	1	Attachment, Power Beyond Coupler Kit, Implement, Size 12,5	-
-	-	1	Attachment, Power Beyond Connector Kit, Implement	-
-	-	1	Attachment, Mounting Parts, Breakaway Coupler, W/ Pressure Free Return Circuit	-
-	-	1	Attachment, Mechanical SCV, 450 Series	-
-	-	1	Attachment, Mechanical SCV, 200 Series	-
-	-	1	Attachment, Mechanical SCV, 100 Series	-
-	-	1	Attachment, Breakaway Coupler, W/ Pressure Free Return Circuit	-
-	-	1	End Cover, Position IV, RH	-
-	-	1	Fittings / Hoses, Oil Return Manifold, W/ PFC-Hydraulics, W/ Power Beyond	-
-	-	1	Fittings / Hoses, Oil Return Manifold, W/ PFC-Hydraulics, W/ Hydraulic Trailer Brake, W/ Power Beyond	-
-	-	1	Fittings / Hoses, Oil Return Manifold, W/ PFC-Hydraulics, W/ Hydraulic Trailer Brake	-
-	-	1	Fittings / Hoses, Oil Return Manifold, W/ PFC-Hydraulics	-
-	-	1	Fittings / Hoses, Drain Oil Parts, W/ Oil Cup, LH / RH	-
-	-	1	Fittings / Hoses, Drain Oil Parts, Quick Couplers, Position III / IV	-
-	-	1	End Cover, W/O Rear Hitch Valve, RH	-
-	-	1	End Cover, SCV, LH, W/ Hitch Valve	-
-	-	1	Attachment, Breakaway Coupler, Power Beyond	-
-	-	1	End Cover, Position III, RH	-
-	-	1	End Cover, Position II, LH	-
-	-	1	End Cover, Position I, LH	-
-	-	1	Dust Protection, Quick Couplers, Standard, Position III (673929 - 999999), (100001 - 115946)	-
-	-	1	Dust Protection, Quick Coupler, Standard, Position III - IV	-
-	-	1	Cover, Dust Protection, ISO Quick Couplers, Standard, Position II (673929 - 999999), (100001 - 115946)	-
-	-	1	Cover, Dust Protection, ISO Quick Couplers, Standard, Position I - II (673929 - 999999), (100001 - 115946)	-
-	-	1	Coupler / Fitting, Drain Line, Implement Hydraulic Motor, Attachment	-

RIF Hydraulic Couplers, Rear Implement

Нет текстового описания
