Открытый узел

Cable, Battery, 154 Ah, W/O Cut-Off Relay

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL213757	1	Battery Cable	Negative
2	L153768	3	Clip	-
3	AL215909	1	Bracket	-
4	14M7298	9	Flange Nut	M8
5	AL210703	1	Battery Cable	Negative
6	AL205714	1	Battery Cable	Frame to Engine and Cab
7	19M8672	1	Screw	M14 X 25
8	R44302	1	Tie Band	-
9	24M7055	1	Washer	8.400 X 16 X 1.600 mm
10	14M7166	1	Lock Nut	M8
11	19M7866	1	Screw	M8 X 20
12	AL176514	1	Battery Cable	Battery to Power Link Box
13	14M7296	2	Flange Nut	M10
14	AL210271	1	Battery Cable	Starter
15	L169020	1	Clip	-
16	R49921	2	Clamp	-
17	AL118382	1	Clamp	-
18	L210301	2	Clamp	-
19	AL222163	1	Battery Cable	ALTERNATOR
20	AH97280	1	Clip	-
21	L110815	2	Clamp	-
22	19M8290	1	Screw	M6 X 35
23	L206766	1	Clamp	-
24	AL221890	1	Battery Cable	Power Link Box to Cab
25	AL221975	1	Wiring Harness	-
26	L206645	2	Tie Band	-
27	L173142	1	Shield	-
28	AL159725	5	Clamp	-
29	57M8093	1	Fuse Holder	-
30	24M7146	2	Washer	4.300 X 12 X 1 mm
31	21M7435	2	Screw	M4 X 12
32	L115766	1	Clamp	-
33	R213663	2	Clamp	-
34	L217565	1	Hose	-
35	57M12235	1	Elec. Connector Accessory	-
36	L202316	1	Isolator	-
37	57M10524	2	Elec. Connector Terminal	Cavity 2, 3
37	57M8572	8	Elec. Connector Cavity Plug	Cavity 4, 8, 9, 10, 11, 12, 13, 14
37	57M10525	4	Elec. Connector Terminal	Cavity 1, 5, 6, 7
37	57M10298	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W011, X547M
38	57M12075	1	Elec. Connector Housing	Fuses for Engine Control Unit, F029
38	99M7065	1	Fuse	-
38	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
39	57M8435	1	Fuse Holder	Fuses for Engine Control Unit, F028
39	57M7146	1	Fuse	-
39	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
40	57M12075	1	Elec. Connector Housing	Fuses for Engine Control Unit, F027
40	99M7065	1	Fuse	-
40	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
41	57M11279	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W011, X547F-1

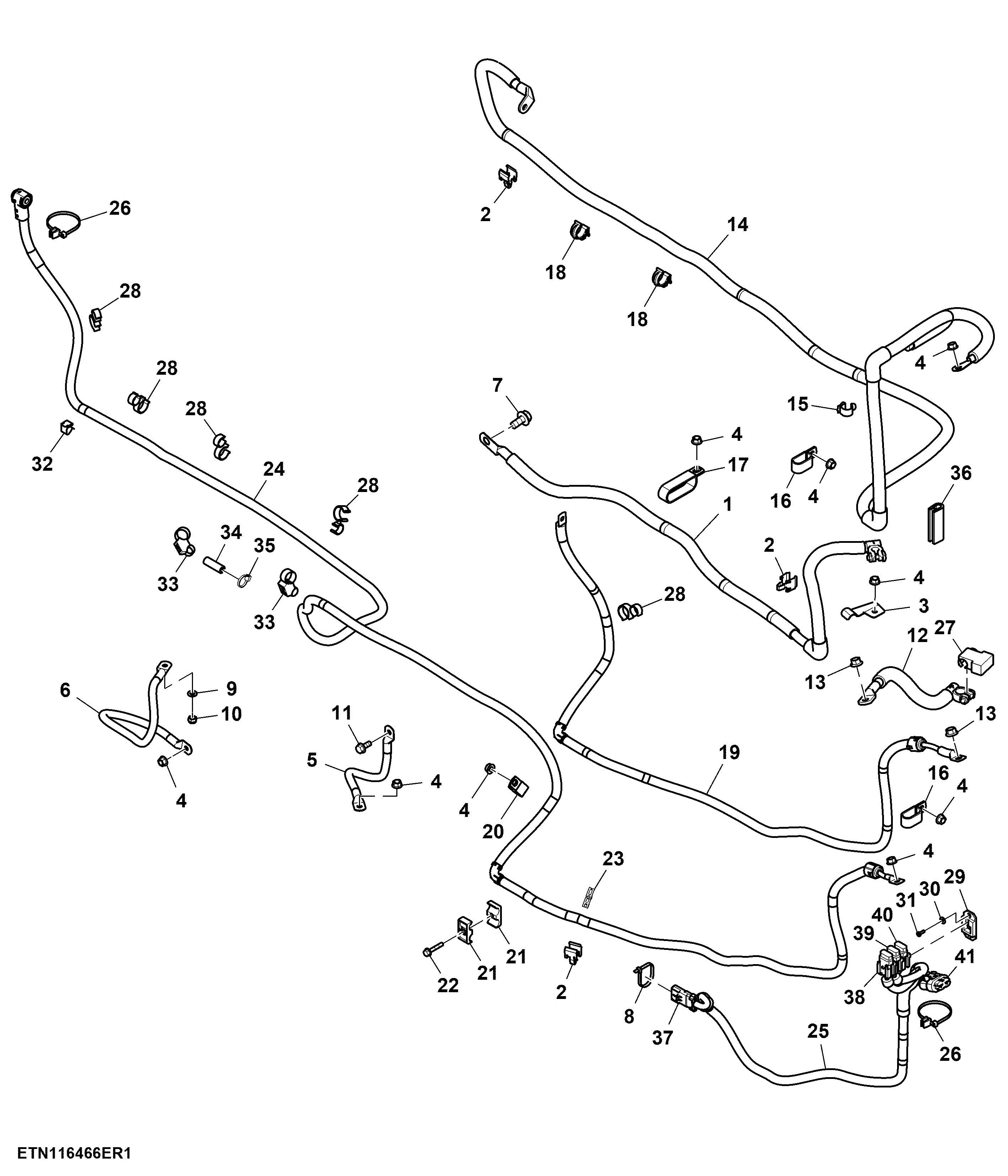

Cable, Battery, 154 Ah, W/O Cut-Off Relay
