Открытый узел

22 Engine 4045HCP04-DZ116238-ETN241534

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

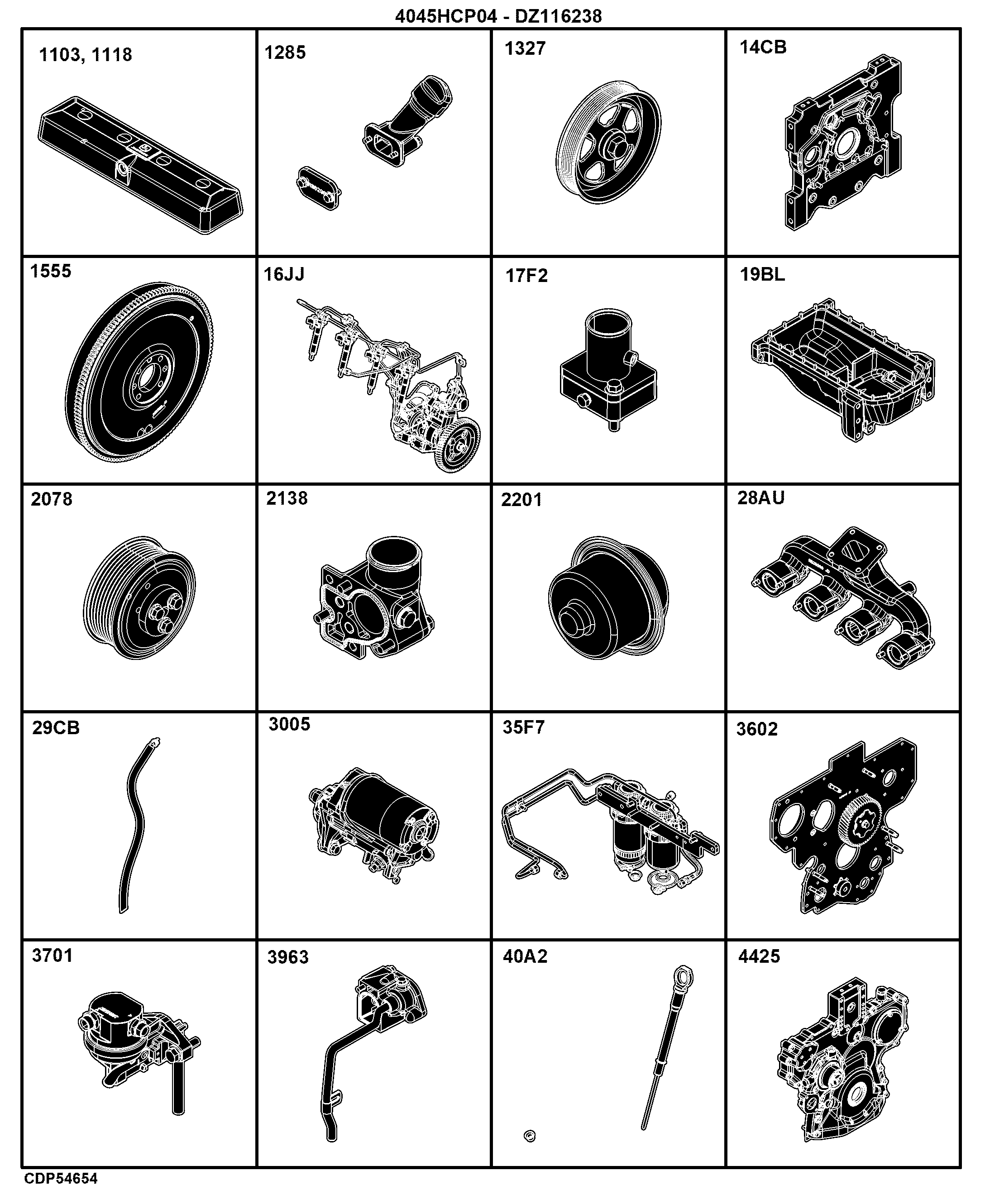

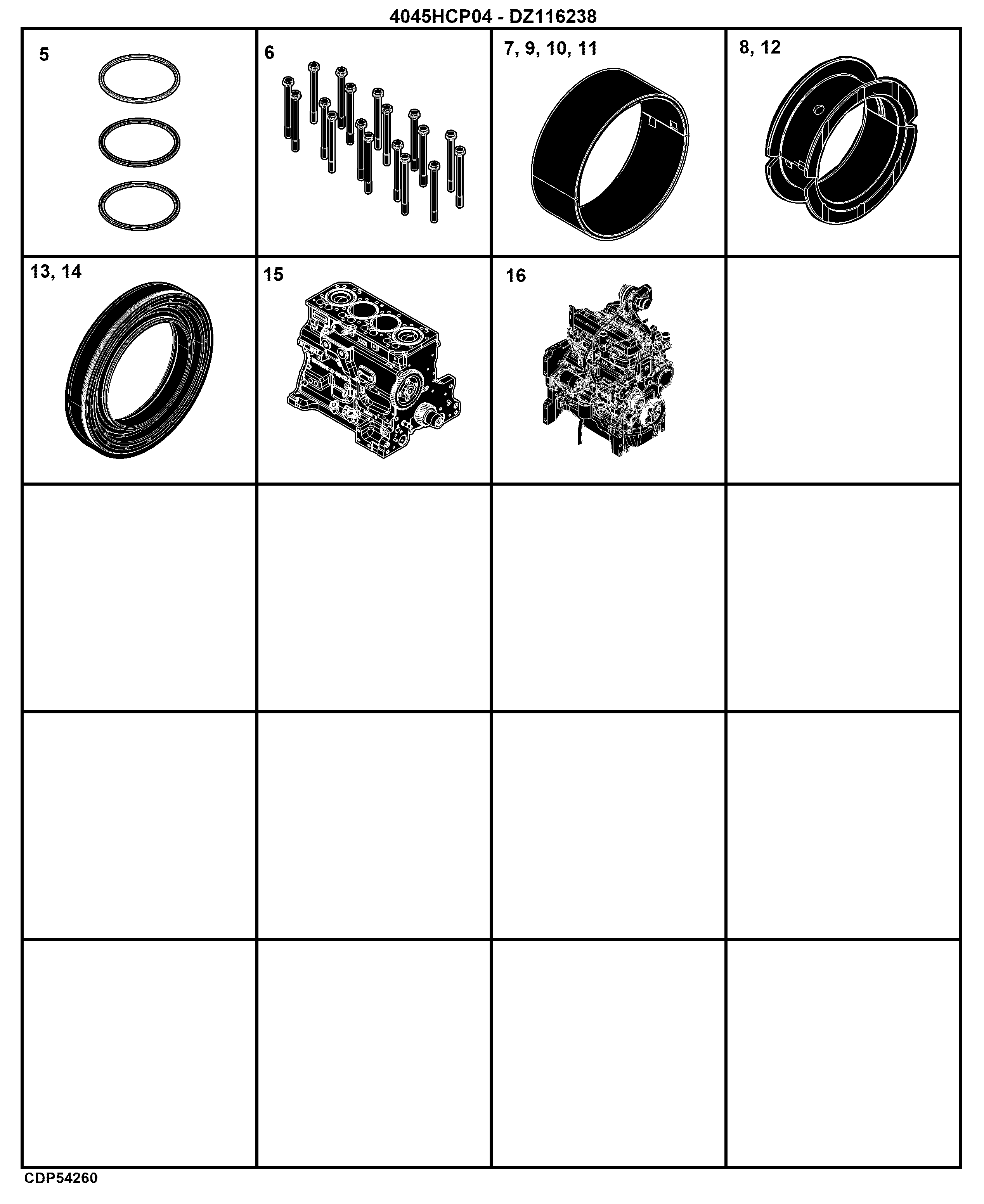

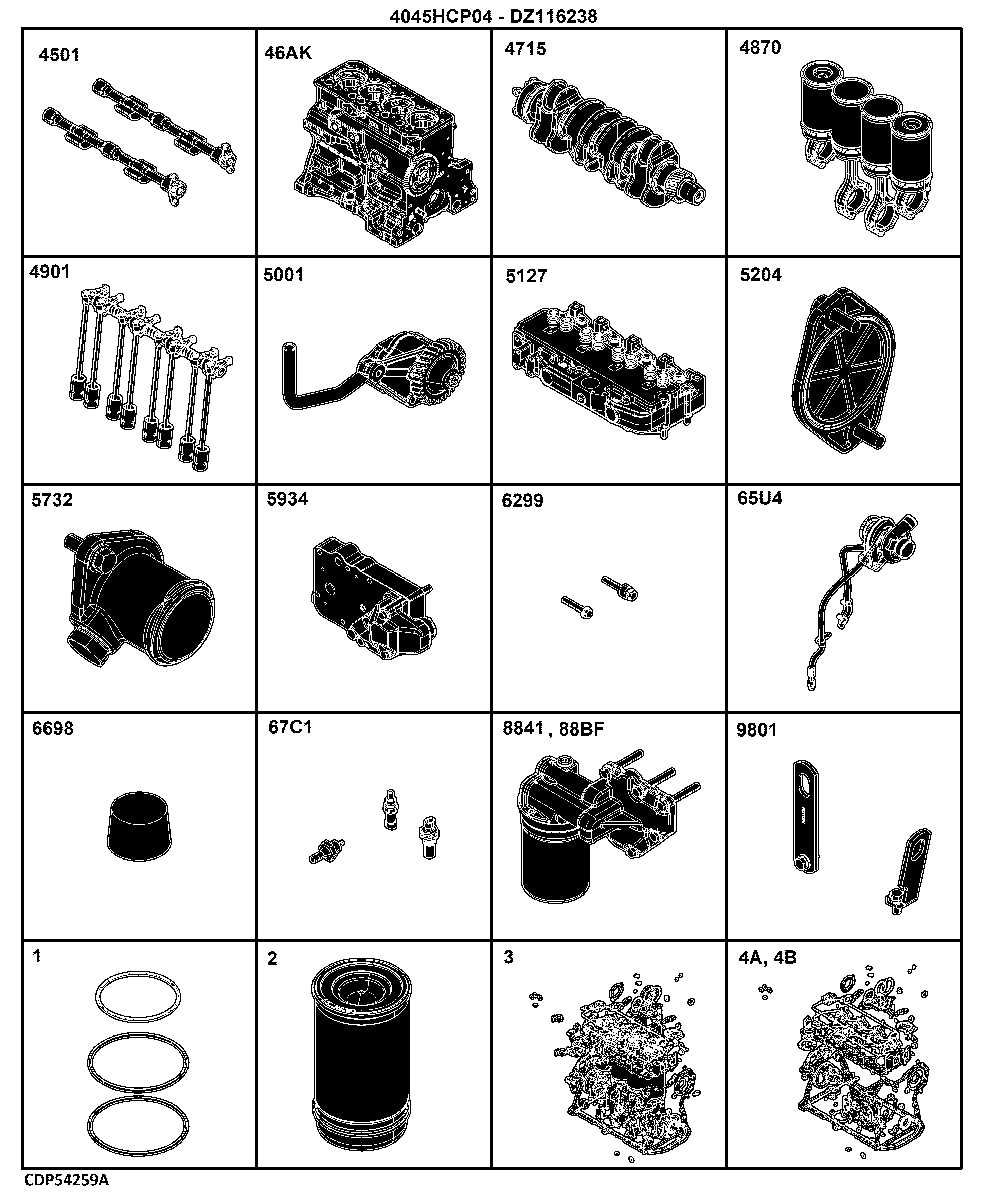

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Cylinder Head Bolts Kit	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5732 Water Pump Inlet	-
-	-	1	5934 Engine Oil Cooler	-
-	-	1	6299 Alternator Mounting Hardware	-
-	-	1	65U4 Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	67C1 Engine Sensors	-
-	-	1	8841 Engine Oil Filter ( - 029528)	-
-	-	1	88BF Engine Oil Filter (029529 - )	-
-	-	1	9801 Lift Straps	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	5127 Cylinder Head and Valves	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Front Oil Seal	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Rear Oil Seal	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	3005 Starter Motor	-
-	-	1	1118 Valve Cover (031979 - )	-
-	-	1	1285 Oil Filler Neck	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	14CB Flywheel Housing	-
-	-	1	1555 Flywheel	-
-	-	1	16JJ Fuel Injection Pump	-
-	-	1	17F2 Air Intake	-
-	-	1	19BL Oil Pan	-
-	-	1	2078 Water Pump Pulley	-
-	-	1	2138 Thermostat Cover	-
-	-	1	2201 Engine Thermostat	-
-	-	1	28AU Exhaust Manifold	-
-	-	1	29CB Ventilating System	-
-	-	1	1103 Valve Cover ( - 031978)	-
-	-	1	35F7 Fuel Filter	-
-	-	1	3602 Front Plate	-
-	-	1	3701 Fuel Transfer Pump	-
-	-	1	3963 Thermostat Housing	-
-	-	1	40A2 Engine Oil Dipstick	-
-	-	1	4425 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	46AK Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4870 Connecting Rods and Pistons	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump	-

22 Engine 4045HCP04-DZ116238-ETN241534

Нет текстового описания
