Открытый узел

Front Hitch Valve Kit, 2-Additional SCV, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL206264	1	Valve Kit	-
2	L167530	1	Clamp	-
3	19M7797	1	Screw	M6 X 40
4	19M7298	1	Cap Screw	M8 X 35
5	AL204506	1	Hydraulic Hose	-
6	61M5128	2	Union Fitting	-
7	AL208395	1	Oil Line	-
8	19M7270	1	Cap Screw	M8 X 65
9	19M7647	1	Screw	M8 X 16
10	AL208145	1	Oil Line	-
11	L110815	2	Clamp	-
12	51M7036	2	O-Ring	35 X 2 mm
13	19M8318	1	Screw	M8 X 45
14	AL206472	1	Cover	-
15	AL167349	2	Hydr. Quick Coupler Socket	-
16	14M7273	1	Nut	M8
17	L167531	1	Clamp	-
18	T77857	2	O-Ring	-
19	AL204509	1	Oil Line	-
20	AL204507	1	Hydraulic Hose	-
21	AL208396	1	Oil Line	-
22	14M7272	1	Nut	M6
23	AL210778	1	Oil Line	-
24	AL210779	1	Oil Line	-
25	AL211816	2	Adapter Fitting	SUB FOR AL208041
26	19M7269	1	Cap Screw	M8 X 50
27	40M7062	4	Snap Ring	-
28	19M7139	1	Cap Screw	M8 X 20
29	AL208144	1	Oil Line	-
30	AL209920	1	Oil Line	-
31	AL206473	1	Cover	-
32	19M8274	1	Screw	M8 X 35
33	19M7160	1	Cap Screw	M6 X 30
34	L211703	2	Adapter Fitting	SUB FOR L208658
35	L211704	2	Adapter Fitting	SUB FOR L208658
36	L211705	1	Adapter Fitting	-
37	51M7045	2	O-Ring	19.300 X 2.200 mm
38	AL216645	2	Adapter Fitting	(Not Illustrated) INCLUDES (2) 51M7045, T77857, L211705

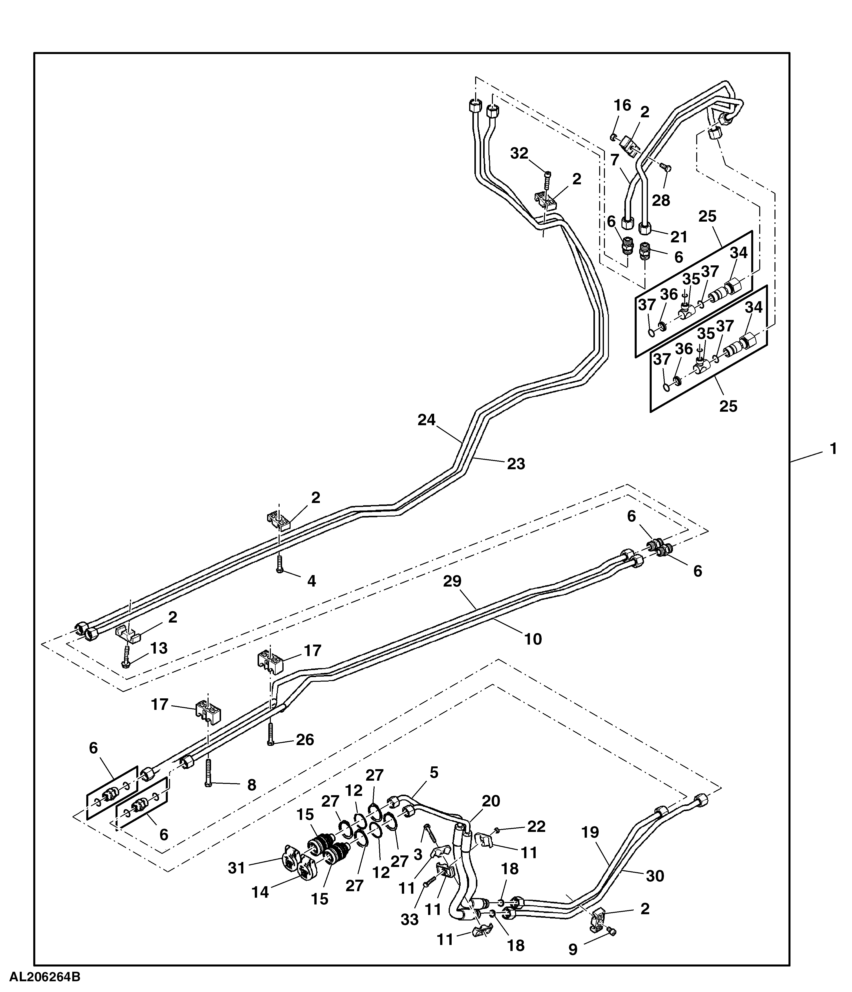

Front Hitch Valve Kit, 2-Additional SCV, Attachment

Нет текстового описания
