Открытый узел

Wiring Harness, Hydraulic Quick Connect Coupler, W/O Front Loader Unlatch Function, W/O Loader Working Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R241878	1	Clip	-
2	AL232669	1	Wiring Harness	SUB FOR AL228962
3	L171035	1	Tie Band	-
4	AH225366	1	Clip	-
5	57M7291	1	Electrical Connector Assy	-
5	57M7259	2	Elec. Connector Seal	Cavity C, F
5	57M9215	4	Elec. Connector Seal	Cavity A, B, D, E
5	57M10770	4	Elec. Connector Terminal	Cavity A, B, D, E
5	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W731 or W901, X1268F
6	57M7328	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W731 or W901, X1278F
6	57M10770	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M7259	2	Elec. Connector Seal	-
6	57M7289	2	Elec.Connect Locking Device	-
7	14M7296	1	Flange Nut	M10
8	L169299	1	Tie Band	SUB FOR L203103 APPL
9	R46414	1	Clamp	-

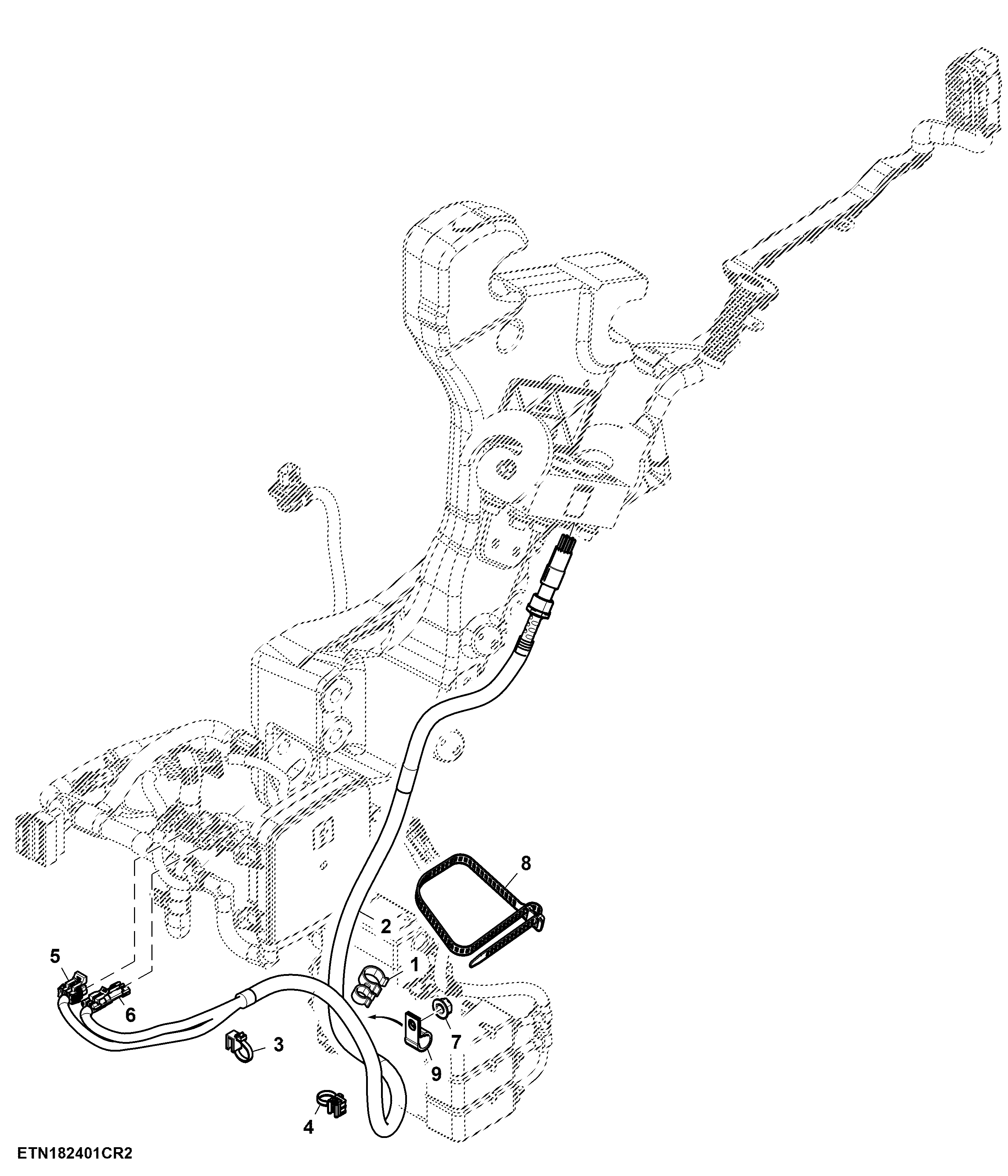

Wiring Harness, Hydraulic Quick Connect Coupler, W/O Front Loader Unlatch Function, W/O Loader Working Lights
