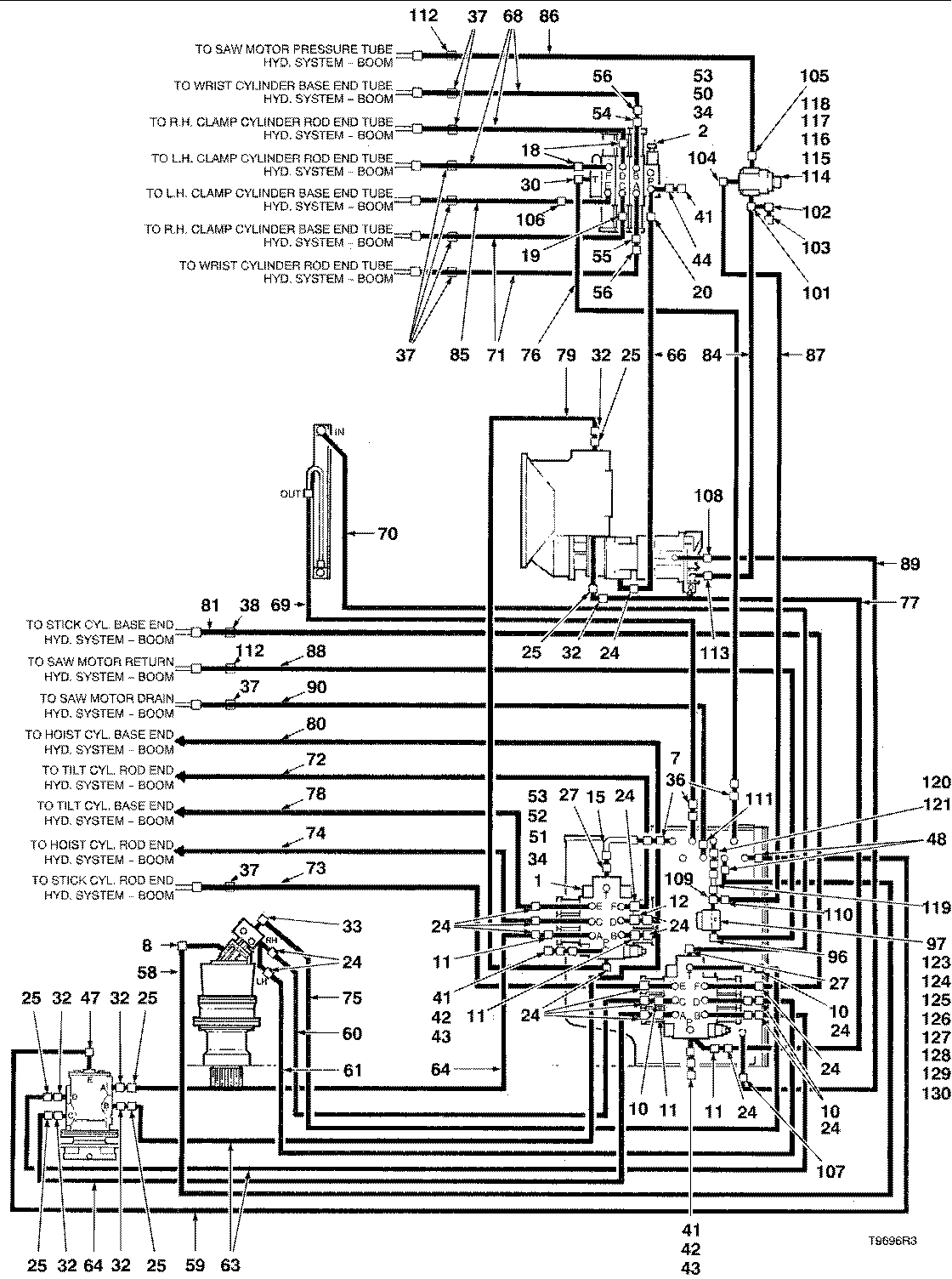

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN KOEHRING ( CM9250 - ) 2000-224/10 [2000-224/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	2	O-RING	-
2	-------	1	O-RING	-
7	700591700	3	Check Valve	-
8	811459900	1	Elbow Fitting	-
10	701303700	4	Tube	-
11	700244200	4	TUBE -	-
12	700769100	1	Structural Tube	-
15	701219600	1	Structural Tube	-
18	811439600	2	ADAPTER -	-
19	811439800	1	ADAPTER -	-
20	811605700	1	ELBOW-45 DEG. -	-
24	811168000	17	FLANGE KIT -	-
25	700620700	6	FLANGE KIT -	-
27	811621800	2	FLANGE KIT -	-
30	810353500	1	ELBOW-90 DEG.	-
32	811058300	24	BOLT*M12X1.75-40 -	-
33	810424400	1	ELBOW, 90 DEG	-
34	810087700	9	NUT*1/2-13UNC	-
36	840547100	3	O-RING -	-
37	700579800	10	Clamp	-
38	700579700	1	Clamp	-
41	700578000	3	COUPLER-TEST -	-
42	810617600	2	O-RING -	-
43	810374000	2	FITTING -	-
44	810244000	1	ELBOW-45 DEG. -	-
47	810913200	1	ELBOW-90 DEG.	-
48	810490900	2	FITTING 1/2 MJIC 3/4 -	-
50	810082400	3	BOLT*1/2-13UNCX1-3/4	-
51	810082700	2	BOLT 1/2 - 13 UNC X 2-1/2	-
52	810379500	4	BOLT*1/2-13UNCX4	-
53	810011600	9	WASHER*1/2	-
54	700742300	1	ADAPTER -	-
55	700742400	1	ADAPTER -	-
56	700742500	2	ORIFICE -	-
58	811325000	1	HOSE-HYD*0.50X66 -	-
59	811722900	1	Hydraulic Hose	-
60	811857400	1	Hydraulic Hose	-
61	811857500	1	Hydraulic Hose	-
63	811858200	2	Hydraulic Hose	-
64	811858100	2	HOSE-HYD*1.00 X 54`` -	-
66	811820300	1	Hydraulic Hose	-
68	811285400	3	HOSE-HYD*0.75X86C -	-
69	811487900	1	HOSE-HYD*1.00X132 -	-
70	811857300	1	HOSE-HYD*1.00 X 126`` -	-
71	811326700	2	HOSE-HYD*0.75X89C -	-
72	811857800	1	Hydraulic Hose	-
73	811857600	1	HOSE-HYD *1.00 X 99`` -	-
74	811857700	1	Hydraulic Hose	-
75	811857000	1	HOSE-HYD* 1.00 X 27`` -	-
76	810575800	1	HOSE-HYD*1.00X37 -	-
77	811858000	1	Hydraulic Hose	-
78	811327700	1	HOSE-HYD*1.00X64C -	-
79	811857900	1	Hydraulic Hose	-
80	811369200	1	HOSE-HYD*1.00X84C -	-
81	811327800	1	HOSE-HYD*1.00X95C -	-
84	811820400	1	HOSE-HYD*0.75X90 -	-
85	811326700	1	HOSE-HYD*0.75X89C -	-
86	811696100	1	HOSE-HYD*0.75X84C -	-
87	810538000	1	HOSE ASSEMBLY	-
88	811980900	1	HOSE-HYD*.75 X 96 -	-
89	811969600	1	HOSE-HYD*.75 X 23 - FROM CE9632	-
90	811328100	1	Hydraulic Hose	-
96	810397100	1	ELBOW 90 DEG	-
97	810309800	2	FLAT WASHER 3/8 - HARDENED	-
101	700253700	1	FITTING REWORK-45DEG -	-
102	810420700	1	ELBOW-90 DEG. -	-
103	700578000	1	COUPLER-TEST -	-
104	810397100	1	ELBOW 90 DEG	-
105	811439500	1	ADAPTER -	-
106	811439800	1	ADAPTER -	-
107	810074500	1	ELBOW 90 DEG	-
108	810277000	1	FITTING 3/4 MJIC 5/8	-
109	810549900	1	TEE -	-
110	810293100	1	FITTING -	-
111	810115800	1	FITTING 3/4 MJIC 3/4	-
112	700579800	2	Clamp	-
113	811168000	1	FLANGE KIT -	-
114	-------	1	O-RING	-
115	700882300	2	TUBE -	-
116	810933400	2	HEX HEAD BOLT 5/16-18 UNC X 3-1/4	-
117	810087300	2	NUT*5/16-18UNC	-
118	810768000	2	WASHER*5/16	-
119	701396700	1	TUBE -	-
120	700591700	1	Check Valve	-
121	840547100	1	O-RING -	-
123	701426800	1	PLATE - MOUNTING	-
124	810083000	2	HEX HEAD BOLT 1/2-13 UNC X 3-1/2	-
125	810087700	2	NUT*1/2-13UNC	-
126	810011600	2	WASHER*1/2	-
127	810087500	2	HEX NUT 3/8-16 UNC	-
128	811934700	1	VALVE - PILOT OPERATED	-
129	843086400	1	CARTRIDGE -	-
130	843086500	1	KIT*SEAL -	-
-	810155500	1	FITTING -	-
-	810424700	1	ELBOW-90 DEG.	-
-	811446800	1	O-RING -	-
-	811820500	1	HOSE-HYD*0.50X22 -	-
-	811446800	1	O-RING -	-
