Открытый узел

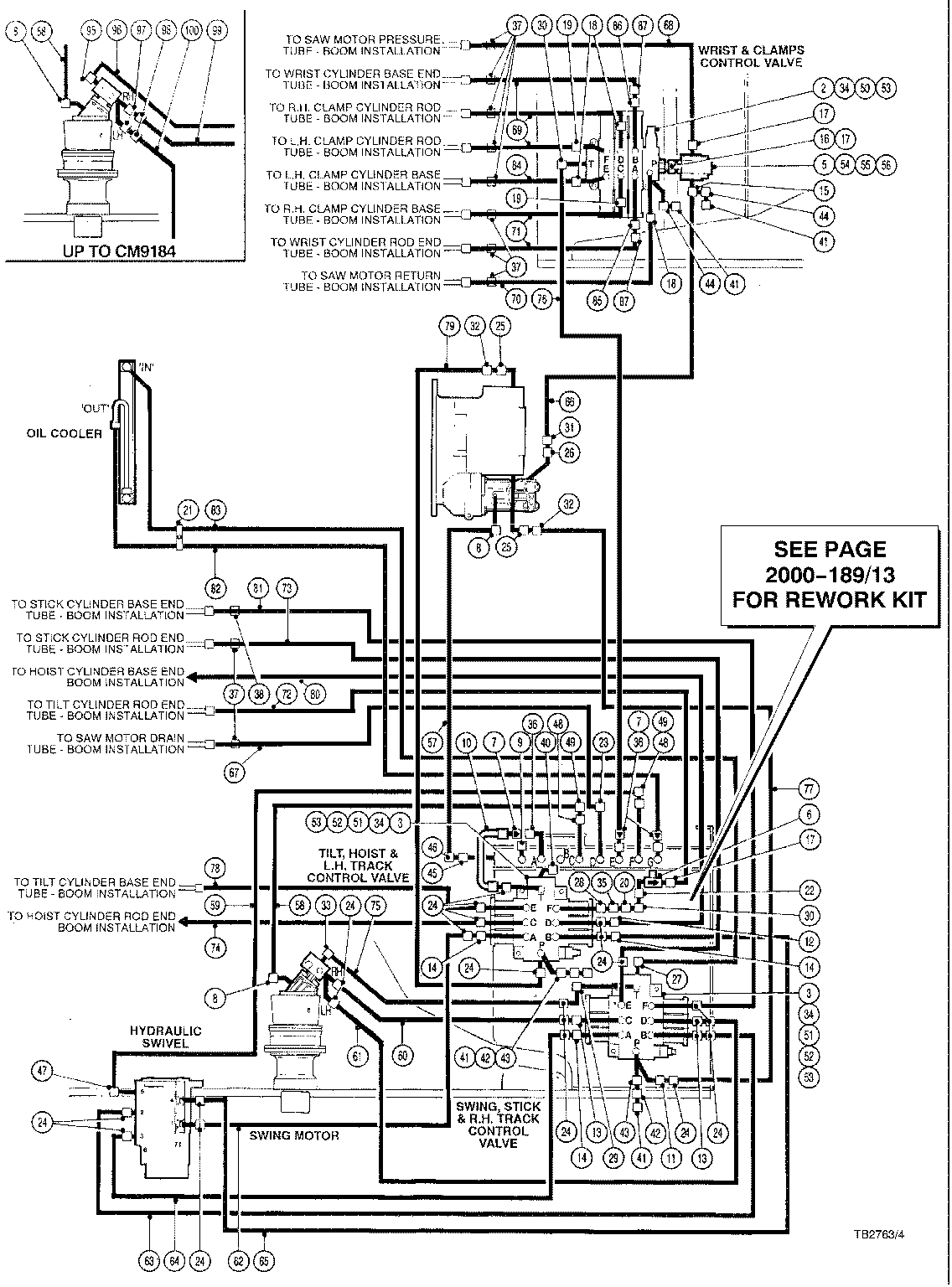

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN KOEHRING ( CM9245 - CM9249) 2000-188/10 [2000-188/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-------	1	O-RING	-
3	-------	2	O-RING	-
5	---------	1	FELLING HEAD	-
6	700308800	1	VALVE CONTROL -	-
7	700591700	3	Check Valve	-
8	811459900	2	Elbow Fitting	-
9	810370500	1	Plug	-
10	700243800	1	TUBE -	-
11	700244200	1	TUBE -	-
12	700769100	1	Structural Tube	-
13	700244000	3	TUBE	-
14	700244100	3	TUBE	-
15	700253700	1	FITTING REWORK-45DEG -	-
16	811522900	1	ADAPTER -	-
17	811439500	3	ADAPTER -	-
18	811439600	3	ADAPTER -	-
19	811439800	2	ADAPTER -	-
20	700312400	1	Adapter Fitting	-
21	701045300	1	CLAMP -	-
22	826096000	1	ADAPTOR -	-
23	810270000	1	FITTING*METRIC -	-
24	811168000	20	FLANGE KIT -	-
25	700620700	2	FLANGE KIT -	-
26	811622700	1	FLANGE KIT -	-
27	811621800	1	FLANGE KIT -	-
28	810686800	4	BOLT*3/8-16UNCX1-1/2 -	-
29	811001700	1	ELBOW - 90 DEG	-
30	810353500	2	ELBOW-90 DEG.	-
31	810899400	4	BOLT*M10X1.50-35	-
32	811058300	8	BOLT*M12X1.75-40 -	-
33	811424400	1	HOSE-HYD*1.00X350 -	-
34	810087700	9	NUT*1/2-13UNC	-
35	810574200	1	O-RING	-
36	840547100	3	O-RING -	-
37	700579800	10	Clamp	-
38	700579700	1	Clamp	-
40	811657200	1	FLANGE -	-
41	700577900	4	COUPLER-TEST - UP TO CB9313	-
42	810617600	2	O-RING -	-
43	810578200	2	FITTING*.25/.438-20	-
44	810920200	2	ELBOW-90 DEG. -	-
45	810363200	1	ADAPTER	-
46	810396500	1	ELBOW-90 DEG. -	-
47	810112100	1	ELBOW-90 DEG.	-
48	810566300	2	FITTING	-
49	810433800	2	ELBOW-90 DEG.	-
50	810082400	3	BOLT*1/2-13UNCX1-3/4	-
51	810082700	2	BOLT 1/2 - 13 UNC X 2-1/2	-
52	810379500	4	BOLT*1/2-13UNCX4	-
53	810011600	9	WASHER*1/2	-
54	810102600	2	BOLT*5/16-18UCX2-1/2	-
55	810087300	2	NUT*5/16-18UNC	-
56	810768000	2	WASHER*5/16	-
57	810576200	1	Hydraulic Hose	-
58	811325000	1	HOSE-HYD*0.50X66 -	-
59	810795000	1	Hydraulic Hose	-
60	811820800	1	HOSE-HYD*0.75X28 -	-
61	811820900	1	HOSE-HYD*0.75X33 -	-
62	811807600	1	HOSE-HYD*0.75X51 -	-
63	811807700	1	HOSE-HYD*0.75X54 -	-
64	811807800	1	HOSE-HYD*0.75X56 -	-
65	811807900	1	HOSE-HYD*0.75X61 -	-
66	811327900	1	HOSE-HYD*0.75X64C -	-
67	811328100	1	Hydraulic Hose	-
68	811667600	1	HOSE-HYD*0.75X84C -	-
69	811285400	3	HOSE-HYD*0.75X86C -	-
70	811285500	1	HOSE-HYD*0.75X87C -	-
71	811326700	2	HOSE-HYD*0.75X89C -	-
72	811270700	1	HOSE-HYD*0.75X58C -	-
73	811327500	1	HOSE-HYD*0.75X99C -	-
74	811327600	1	HOSE-HYD*0.75X120C -	-
75	811806900	1	HOSE-HYD*1.00X29 -	-
76	810575800	1	HOSE-HYD*1.00X37 -	-
77	811807300	1	HOSE-HYD*1.00X46C -	-
78	811327700	1	HOSE-HYD*1.00X64C -	-
79	811807200	1	HOSE-HYD*1.00X71C -	-
80	811369200	1	HOSE-HYD*1.00X84C -	-
81	811327800	1	HOSE-HYD*1.00X95C -	-
82	811487900	1	HOSE-HYD*1.00X132 -	-
83	811487800	1	HOSE-HYD*1.00X122 -	-
84	811285800	1	HOSE-HYD*0.75X93C -	-
85	700742400	1	ADAPTER -	-
86	700742300	1	ADAPTER -	-
87	700742500	2	ORIFICE -	-
95	811478000	1	ELBOW-90 DEG. -	-
96	811325300	1	HOSE-HYD*1.00X36 -	-
97	811622700	2	FLANGE KIT -	-
98	810899400	8	BOLT*M10X1.50-35	-
99	811326000	1	HOSE-HYD*0.75X30 -	-
100	811326100	1	HOSE-HYD*0.75X35 -	-
-	-	1	Part 91	-
-	-	1	Part 92	-

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN KOEHRING ( CM9245 - CM9249) 2000-188/10 [2000-188/10]

Нет текстового описания
