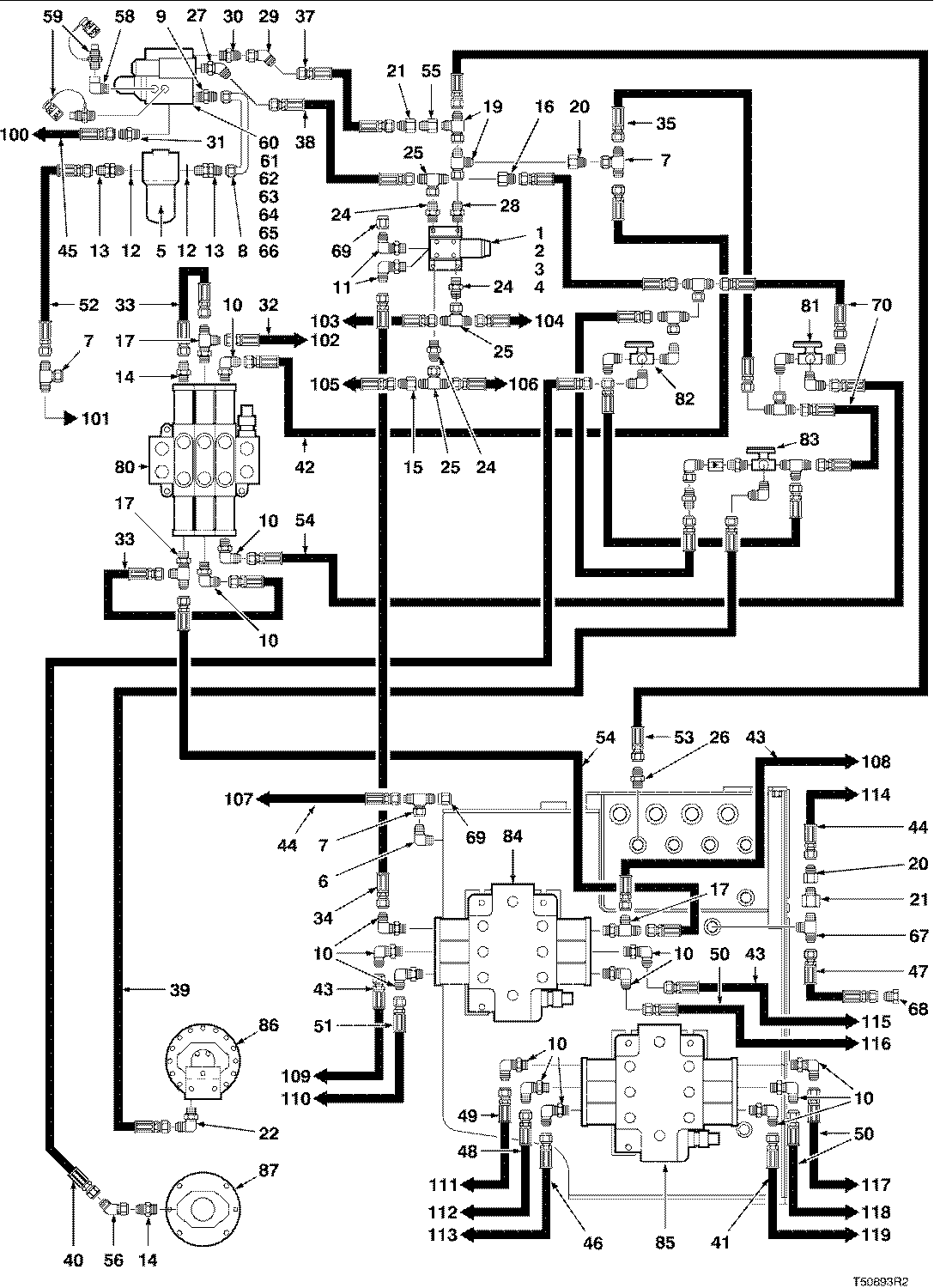

HYDRAULIC SYSTEM UPPER FRAME PILOT LINES 762B ( 969017 - 977026) 2000-293/13 [2000-293/13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	700601100	1	BLOCK -	-
2	810088700	4	BOLT*1/4-20UNCX3/4	-
3	---------	1	FELLING HEAD	-
4	811350800	4	BOLT #10-24UNCX2 -	-
5	---------	1	FELLING HEAD	-
6	810273500	1	Elbow Fitting	-
7	810915700	2	TEE -	-
8	701201700	1	TUBE -	-
9	810328700	1	FITTING .375/.75-16 -	-
10	810917500	14	Elbow Fitting	-
11	811539200	2	ADAPTOR -	-
12	840287000	2	O-RING	-
13	810328400	2	ADAPTER -	-
14	810862800	2	ADAPTER -	-
15	810565100	1	FITTING MJIC/FJIC	-
16	810721500	1	FITTING	-
17	811961900	3	Tee Fitting	-
18	810277000	1	FITTING 3/4 MJIC 5/8	-
19	810399500	2	TEE -	-
20	810565200	2	FITTING -	-
22	811622500	1	Elbow Fitting	-
23	810292900	1	ELBOW-90 DEG. -	-
24	810155500	3	FITTING -	-
25	810579400	3	TEE-JIC/JIC/JIC -	-
26	810270000	1	FITTING*METRIC -	-
27	810390700	1	ELBOW-45 DEG. -	-
28	810277000	1	FITTING 3/4 MJIC 5/8	-
29	810466600	1	FITTING-45 DEG.	-
30	810070000	1	FITTING 1/2 MJIC 1/2	-
31	810056700	2	NIPPLE -	-
32	811890900	1	HOSE-HYD*0.25X72 -	-
33	811813900	2	HOSE-HYD*0.25X13 -	-
34	811089000	1	HOSE-HYD*0.25X60 -	-
35	811323900	1	HOSE-HYD*0.25X25 -	-
36	811324400	2	HOSE-HYD*0.25X29 -	-
37	810576000	1	Hydraulic Hose	-
38	811820500	1	HOSE-HYD*0.50X22 -	-
39	811312400	1	Hydraulic Hose	-
40	811312700	1	HOSE-HYD*0.25X58 -	-
41	810300800	1	Hydraulic Hose	-
42	811323900	1	HOSE-HYD*0.25X25 -	-
43	811313200	5	HOSE-HYD*0.25X102 -	-
44	811313500	2	HOSE-HYD*0.25X104	-
45	811313700	1	HOSE-HYD*0.25X106 -	-
46	810692000	1	HOSE ASSEMBLY - VALVE TO WINCH	-
47	810799900	1	Hydraulic Hose	-
48	811322000	1	HOSE-HYD*0.25X112 -	-
49	811322200	1	Hydraulic Hose	-
50	811322500	3	HOSE-HYD*0.25X126 -	-
51	811857100	1	HOSE-HYD*.250 X 136`` -	-
52	811857200	1	HOSE-HYD*.500 X 130`` -	-
53	810538000	1	HOSE ASSEMBLY	-
54	811842800	2	HOSE-HYD*.250X74`` -	-
55	810471600	1	FITTING MJIC/FJIC -	-
56	810609500	1	ELBOW 45 DEG. -	-
58	810420700	1	ELBOW-90 DEG. -	-
59	700578000	2	COUPLER-TEST -	-
60	-------	1	O-RING	-
61	810880200	2	BOLT*3/8-16UNCX3-3/4	-
62	810087500	2	HEX NUT 3/8-16 UNC	-
63	810309800	2	FLAT WASHER 3/8 - HARDENED	-
64	-------	1	O-RING	-
65	811350800	4	BOLT #10-24UNCX2 -	-
66	-------	1	O-RING	-
67	810471500	1	TEE -	-
68	811438500	1	Plug	-
69	810626000	2	CAP -	-
70	811326300	2	HOSE-HYD*0.25X20 -	-
80	-------	1	O-RING	-
81	-------	1	O-RING	-
82	-------	1	O-RING	-
83	-------	1	O-RING	-
84	-------	1	O-RING	-
85	-------	1	O-RING	-
86	-------	1	O-RING	-
87	-------	1	O-RING	-
100	-------	1	O-RING	-
101	-------	1	O-RING	-
102	-------	1	O-RING	-
103	-------	1	O-RING	-
104	-------	1	O-RING	-
105	-------	1	O-RING	-
106	-------	1	O-RING	-
107	-------	1	O-RING	-
108	-------	1	O-RING	-
109	-------	1	O-RING	-
110	-------	1	O-RING	-
111	-------	1	O-RING	-
112	-------	1	O-RING	-
113	-------	1	O-RING	-
114	-------	1	O-RING	-
115	-------	1	O-RING	-
116	-------	1	O-RING	-
117	-------	1	O-RING	-
118	-------	1	O-RING	-
119	-------	1	O-RING	-
-	811446800	1	O-RING -	-

HYDRAULIC SYSTEM UPPER FRAME PILOT LINES 762B ( 969017 - 977026) 2000-293/13 [2000-293/13]
