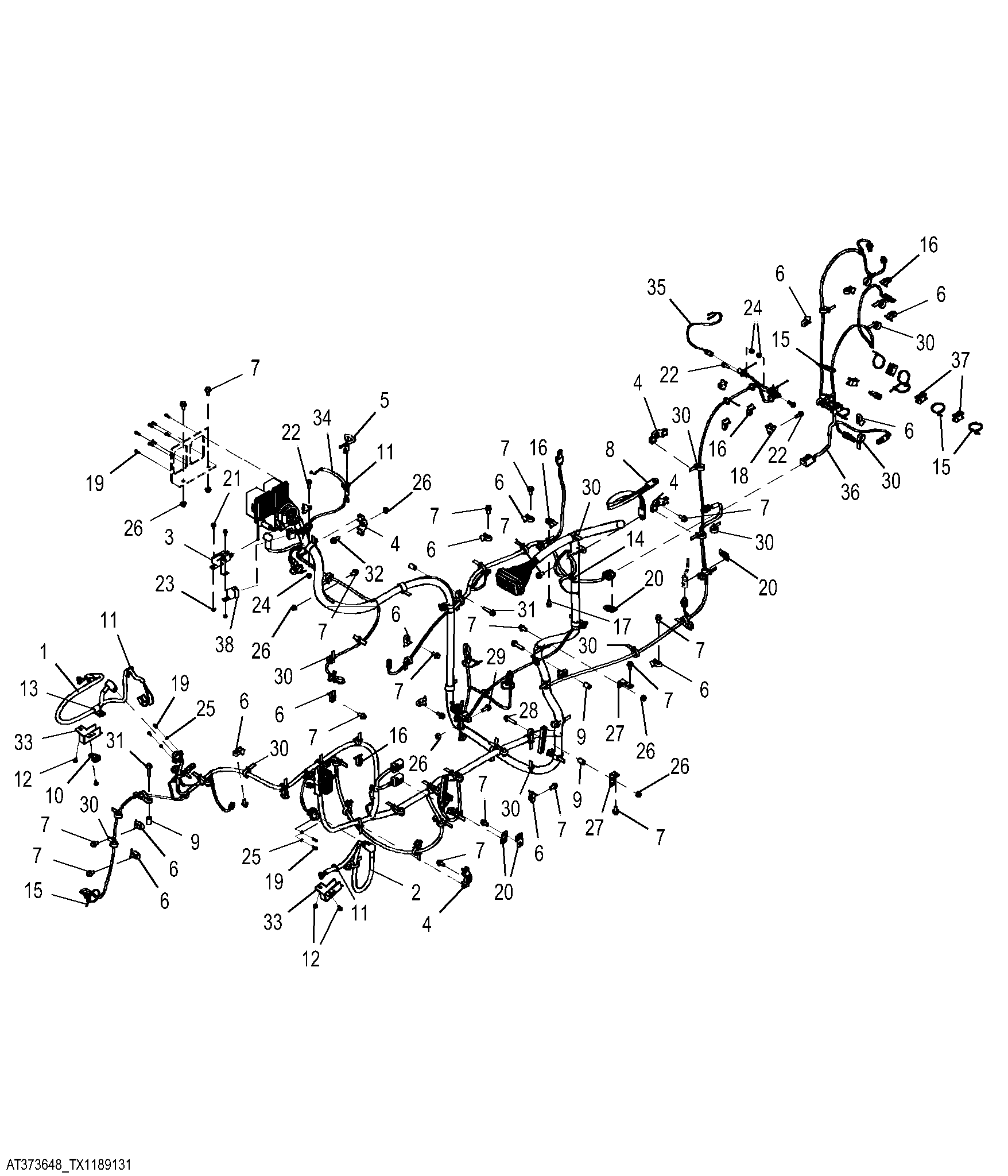

Vehicle Wiring Harness And Hardware (267650 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT352237	1	Roof Wiring Harness	Return To Dig Wiring Harness and Horn Components On Separate Page
2	AT483582	1	Sensor Wiring Harness	Boom Height Kick Out (BHKO) Wiring Harness Components On Separate Page, SUB FOR AT352236
3	AT412661	1	Relay	SUB FOR AT398083
4	AT360806	4	Hose Clamp	-
5	AT391081	1	Wiring Harness	Fan Filter Wiring Harness
6	N380408	44	Clamp	-
7	19M7784	41	Screw	M10 X 20
8	AT38449	1	Ground Cable	-
9	28H1495	4	Spacer	0.493" X 0.675" X 1"
10	T76252	1	Clamp	-
11	R44302	10	Tie Band	-
12	19M7774	4	Screw	M6 X 12
13	T64784	1	Clip	-
14	T74410	1	Clamp	-
15	R44302	13	Tie Band	-
16	H224072	7	Clamp	-
17	19M7866	1	Screw	M8 X 20
18	H226339	4	Clamp	-
19	19M7372	12	Cap Screw	M5 X 16
20	57M10650	4	Clip Kit	-
21	19M7775	2	Screw	M6 X 16
22	19M7867	4	Screw	M8 X 25
23	14M7303	2	Flange Nut	M6
24	14M7298	3	Flange Nut	M8
25	24M7027	4	Washer	5.300 X 10 X 1 mm
26	14M7296	7	Flange Nut	M10
27	T290806	2	Angle	-
28	19M8320	2	Screw	M10 X 45
29	19M7786	1	Screw	M10 X 30
30	H224073	58	Tie Band	-
31	19M7805	2	Screw	M10 X 45
32	19M7785	1	Screw	M10 X 25
33	T333577	2	Bracket	-
34	AT436478	1	Wiring Harness	Vehicle Components On Separate Page
34	AT451970	1	Wiring Harness	Components On Separate Page
35	AT436617	1	Wiring Harness	-
35	57M8021	1	Electrical Connector Assy	-
35	57M8022	1	Elec.Connect Locking Device	-
36	AT436477	1	Wiring Harness	Cooling Package Wiring Harness Components On Separate Page
37	AN209168	5	Swivel	-
38	AT77726	1	Relay	-

Vehicle Wiring Harness And Hardware (267650 - )
